EN-2
Ranger™ Count 3000
Series
2.2 Installing Components
Install the sub-platform & metal pan as shown below. Press to lock the sub-platform into place.
The scale can be operated without the pan, if desired.

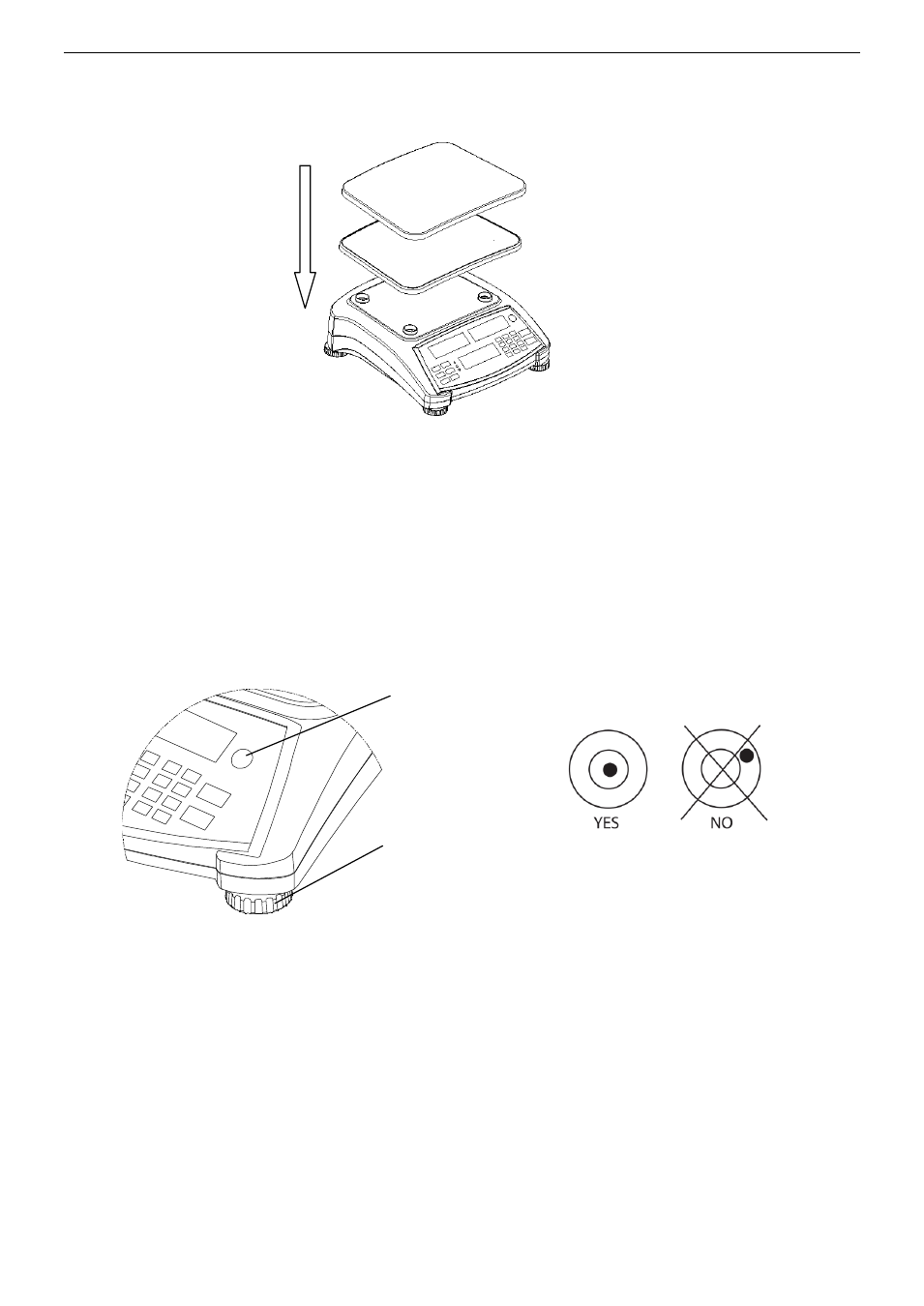

Figure 2-1. Installing sub-platform and metal pan
2.3 Selecting the Location
Use the scale on a firm, steady surface. Avoid locations with excessive air current, vibrations,
heat sources, or rapid temperature changes. Allow sufficient space around the scale.
2.4 Leveling the Equipment
The Ranger Count Series has a level indicator as a reminder that the scale should be leveled
for accurate weighing. To level the scale, adjust the feet so the bubble is centered in the circle.
Be sure the equipment is level each time its location is changed.
Figure 2-2. Level indicator
Level Indicator
Adjustable feet
