EN-4 VX Series Floor Scale
Connecting the Indicator Cable
1. Route the cable from the platform to the location where the Indicator will be mounted.
2. The cable near the platform must lie free without tension. Excessive tension may result in weighing errors.
3. Ensure that the cable will be protected against possible damage when routed to the Indicator.
4. Consult the installation instructions of the Indicator to properly connect the cable wires to the Indicator.
5. Use the recorded wire color information from the platform connections to make the proper wire connections.
2.6. Legal for Trade Sealing
If required the junction box may be sealed as shown in Figure 3. The junction box is accessed by removing the cover plate on
the FRONT side panel of the platform.
Consult the instructions of the Indicator to properly seal the Indicator component for Legal for Trade applications.

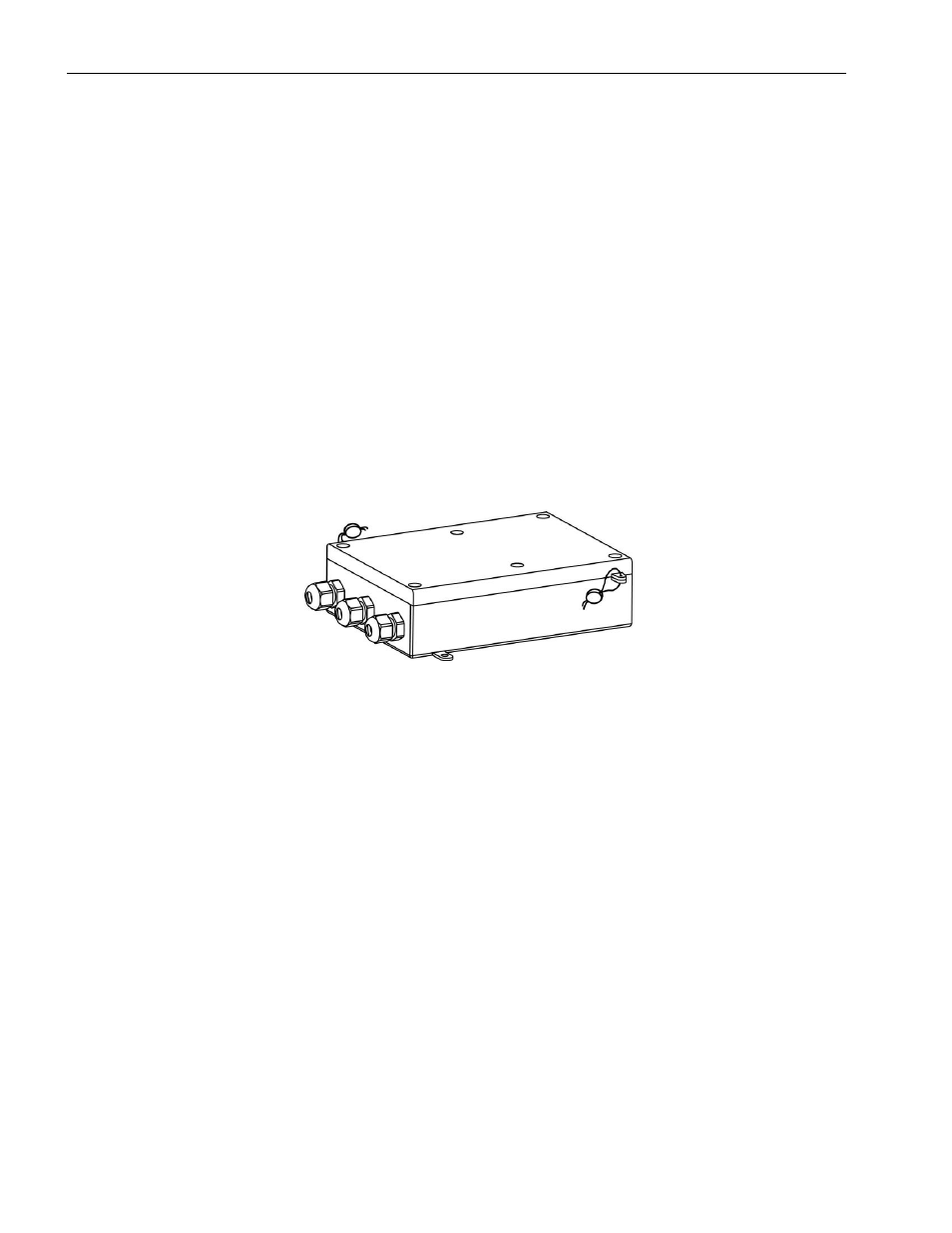

Figure 3. Junction Box Sealing, Wire & Crimp Seal at opposing corners
