Defender
TM
Bases
Painted and Stainless Steel Scale Bases
Defender Basic Rectangular Washdown Bases (V model)
Model
D30VR D60VR D60VL D150VL D150VX D300VX
Capacity x
Readability (d)
60 lb x 0.01 lb
30 kg x 5 g
150 lb x 0.02 lb
60 kg x 10 g
150 lb x 0.02 lb
60 kg x 10 g
300 lb x 0.05 lb
150 kg x 20 g
300 lb x 0.05 lb
150 kg x 20 g
600 lb x 0.1 lb
300 kg x 50 g
Capacity x
Certified/Approved Readability
60 lb x 0.02 lb
30 kg x 0.01 kg
150 lb x 0.05 lb
60 kg x 0.02 kg
150 lb x 0.05 lb
60 kg x 0.02 kg
300 lb x 0.1 lb
150 kg x 0.05 kg
300 lb x 0.1 lb
150 kg x 0.05 kg
600 lb x 0.2 lb
300 kg x 0.1 kg
Load Cell Cable 6.6 ft / 2m L x 6-wire
Load Cell Rated Output 2 mV/V ± 10%
Load Cell Excitation Voltage Maximum 20V (AC/DC) / Recommended 5~15V (AC/DC)
Load Cell Input / Output Resistance 410 ± 10 ohms / 350 ± 4 ohms
Leveling Components Externally visible level bubble and adjustable non-slip leveling feet
Operating Temperature -10°C to 40°C / 14°F to 104°F
Base Dimensions
(A x B x C x D x E)
14 x 12 x 4.8 x 3 x 15 in
355 x 305 x 123 x 75 x 380 mm
21.6 x 16.5 x 5.4 x 3.1 x 22.6 in
550 x 420 x 136 x 80 x 575 mm
25.6 x 19.7 x 5.6 x 3.5 x 26.6 in
650 x 500 x 143 x 90 x 675 mm
Shipping Dimensions (L x W x H)
25.3 x 19.6 x 8.5 in /
642 x 497 x 212 mm
33.7 x 22.2 x 8.9 in /
857 x 564 x 225 mm
40.2 x 27 x 9.7 in /
1022 x 687 x 247 mm
Net Weight 20 lb / 9 kg 46 lb / 21 kg 73 lb / 33 kg
Shipping Weight 24 lb / 11 kg 53 lb / 24 kg 81.5 lb / 37 kg
Defender Basic Rectangular Bases (B model)
Model
D30BR D60BR D60BL D150BL D150BX D300BX
Capacity x
Readability (d)
60 lb x 0.01 lb
30 kg x 5 g
150 lb x 0.02 lb
60 kg x 10 g
150 lb x 0.02 lb
60 kg x 10 g
300 lb x 0.05 lb
150 kg x 20 g
300 lb x 0.05 lb
150 kg x 20 g
600 lb x 0.1 lb
300 kg x 50 g
Capacity x
Certified/Approved Readability
60 lb x 0.02 lb
30 kg x 0.01 kg
150 lb x 0.05 lb
60 kg x 0.02 kg
150 lb x 0.05 lb
60 kg x 0.02 kg
300 lb x 0.1 lb
150 kg x 0.05 kg
300 lb x 0.1 lb
150 kg x 0.05 kg
600 lb x 0.2 lb
300 kg x 0.1 kg
Load Cell Cable 6.6 ft / 2 m L x 6-wire
Load Cell Rated Output 2 mV/V ± 10%
Load Cell Excitation Voltage Maximum 20V (AC/DC) / Recommended 5~15V (AC/DC)
Load Cell Input / Output Resistance 410 ± 10 ohms / 350 ± 4 ohms
Leveling Components Externally visible level bubble and adjustable non-slip leveling feet
Operating Temperature -10°C to 40°C / 14°F to 104°F
Base Dimensions
(A x B x C x D x E)
14 x 12 x 4.8 x 3 x 15 in
355 x 305 x 123 x 75 x 380 mm
21.6 x 16.5 x 5.4 x 3.1 x 22.6 in
550 x 420 x 136 x 80 x 575 mm
25.6 x 19.7 x 5.6 x 3.5 x 26.6 in
650 x 500 x 143 x 90 x 675 mm
Shipping Dimensions (L x W x H)
25.3 x 19.6 x 8.5 in
642 x 497 x 212 mm
33.7 x 22.2 x 8.9 in
857 x 564 x 225 mm
40.2 x 27 x 9.7 in
1022 x 687 x 247 mm
Net Weight 20 lb / 9 kg 35 lb / 16 kg 62 lb / 28 kg
Shipping Weight 24 lb / 11 kg 42 lb / 19 kg 70.5 lb / 32 kg
Features:
• Rectangular Pan
• All 304 Stainless Steel
Design
• Tubular Steel Frame
• Stainless Steel IP67
Loadcell
• 125% Safe Overload
Capacity
• 6,000-7,500d
• 3,000d NTEP Certified/
Measurement Canada
Approved
Features:
• Rectangular 304
Stainless Steel Pan
• Painted Carbon Steel
Frame
• Tubular Steel Base
• Aluminum IP67
Loadcell
• 125% Safe Overload
Capacity
• 6,000-7,500d
• 3,000d NTEP Certified/
Measurement Canada
Approved

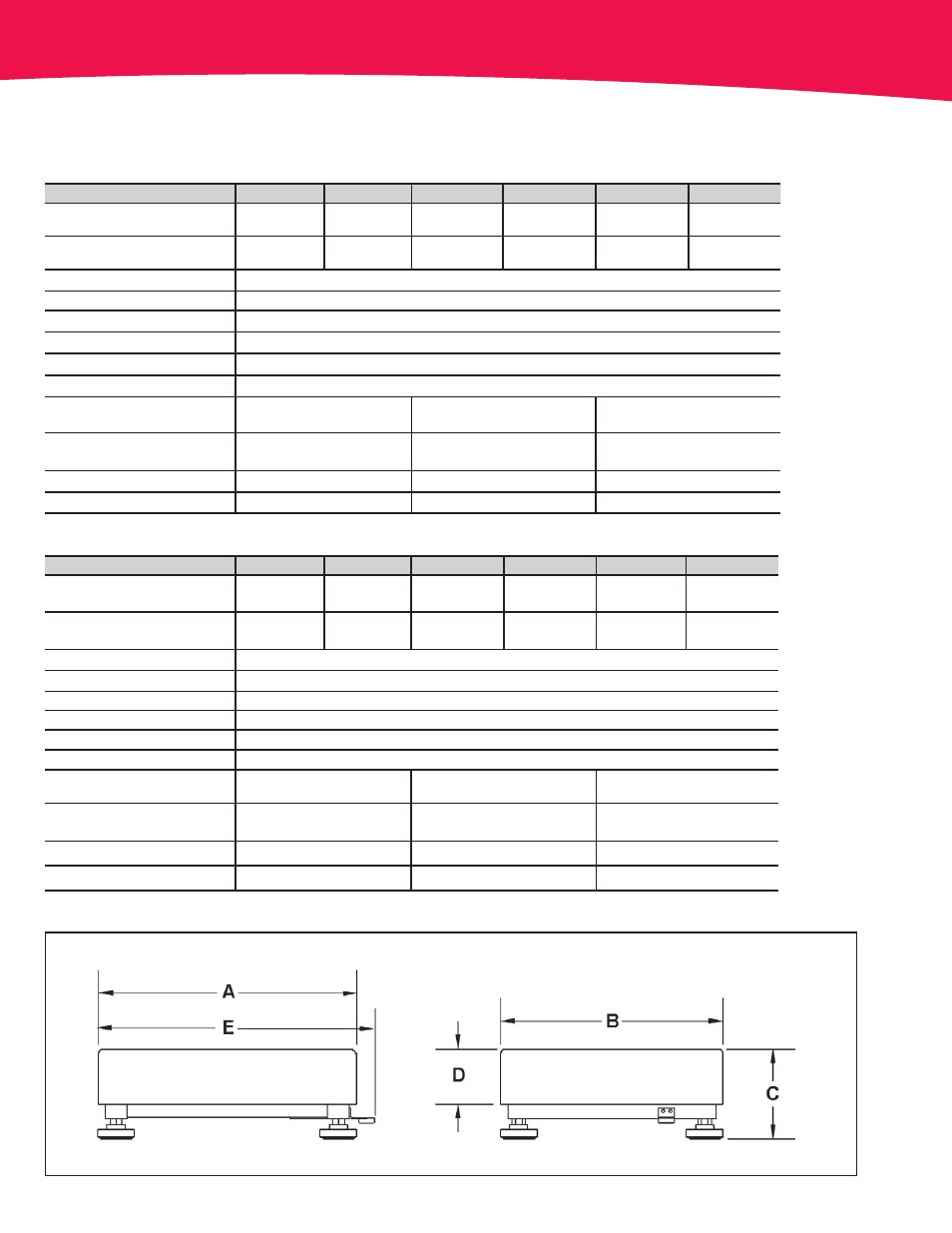

Outline Dimensions
