INSTALLATION OF OPTIONAL FOOT PLATES AND RAMPS
Installation of each Ramp also requires the installation of one set of Foot Plates. Foot Plates are available separately and are
included with the Ramp accessory kit. Refer to Figure 5 for mounting of the Foot Plates and Ramps. Installation of Floor Plates
and Ramps must be done before final placement of the Floor Scale.

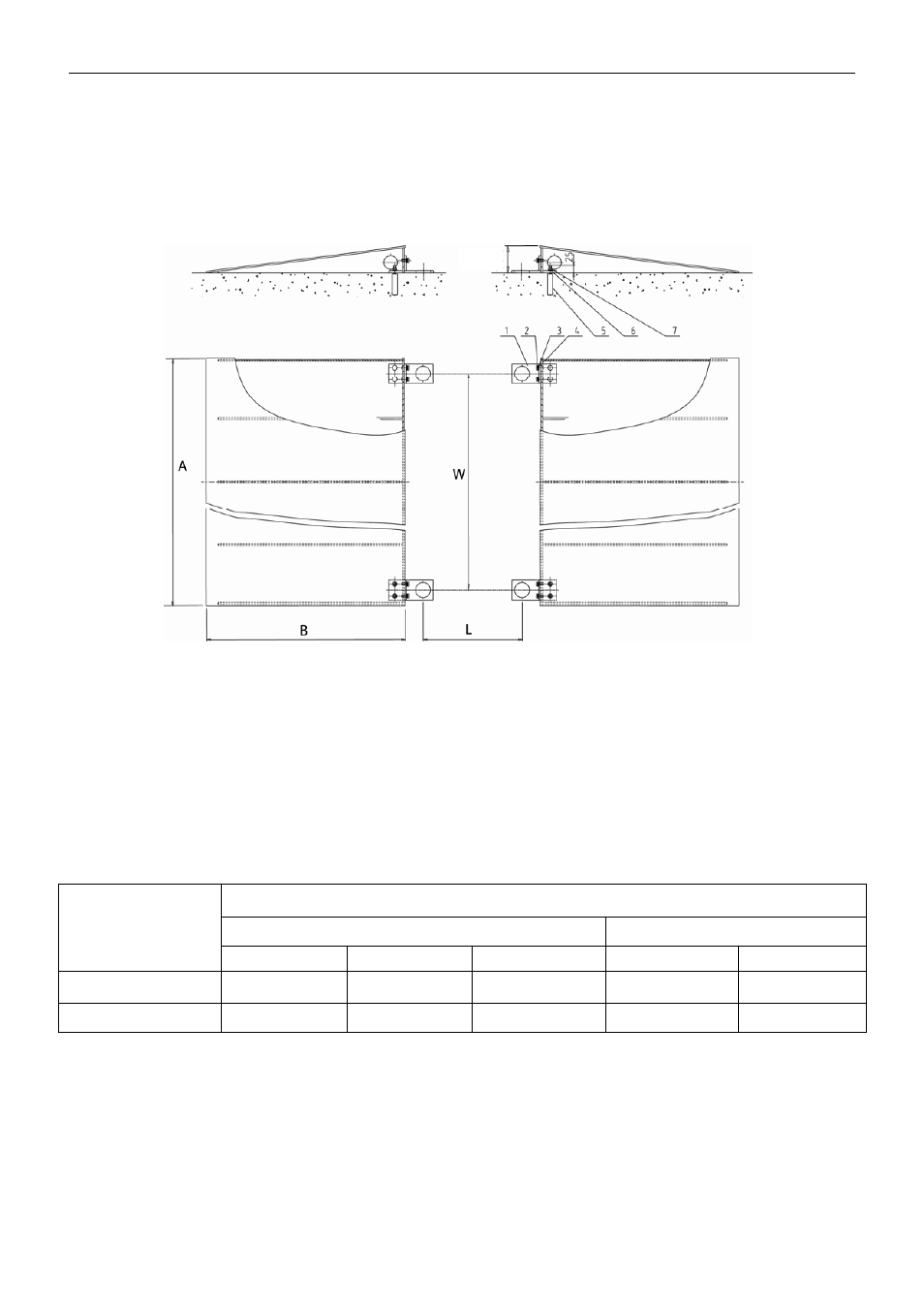

Figure 5. Optional Foot Plate and Ramp Installation
LEGEND: 1.Foot Plate, 2. Bolt, 3. Spring Washer, 4. Washer, 5. Expanding Bolt, 6. washer, 7. Nut
Notes: 1. Expanding bolts require 12.5mm (0.5”) diameter holes drilled 60mm (2.4”) deep into the floor surface.
2. Foot Plate center to center dimensions W and L are shown in Table 6.
3. The Floor Scale must be positioned so that the load cell feet rest within the large holes of the Foot Plates.
4. Ensure that a free air gap exists between the sides of the Floor Scale and the edges of the Ramps.
TABLE 6. DIMENSIONS FOR FLOOR PLATE AND RAMP INSTALLATION
DIMENSIONS
RAMP FOOT PLATE CENTERS
MODELS
A B H W L
Ramp for VN5000L 4’ / 1220 mm 26.4” / 670 mm 3.56” / 90.5mm 43.7” / 1110 mm 43.7” / 1110 mm
Ramp for VN5000X 5’ / 1524 mm 26.4” / 670 mm 3.56” / 90.5mm 55.7” / 1414 mm 55.7” / 1414 mm
H
