Naxa NT-1907 - Manual (Page 6)

/ / /

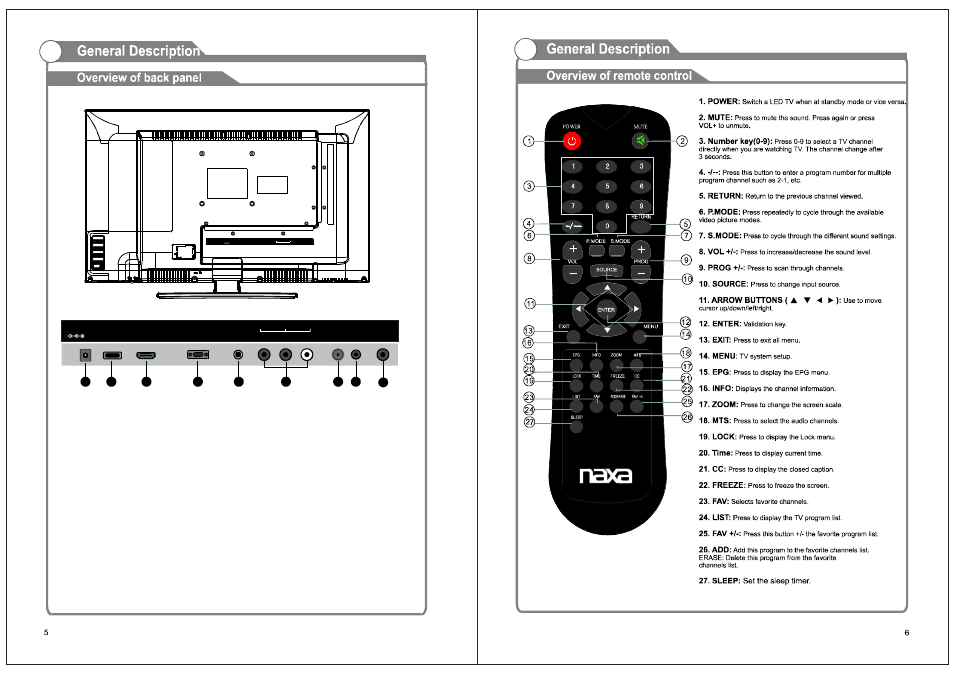

1. Power input
2. USB
USB input
3. HDMI
Connect to the HDMI jack of a device
with a HDMI output.
4. VGA/PC IN
Connect to the video output jack on
your PC.
5. PC AUDIO
Audio input for external devices.
6. AV input
Video input for external devices, such as
a camcorder or VCR.
7. Antenna input
Connect to an antenna or cable NTSC & ATSC.
8. EARPHONE
Connect a set of phone for private listening.
9. COAXIAL
Connect to a Digital Audio device.
8 7
US B
POW ER
INP UT
D C 1 2V
HDM I
I N
VGA
IN
PC
A UDIO
IN
CV BS
IN
L R RF
IN O UT
EARPHONE C OA XIAL
O UT
2 3 4 5 6 9 1
US B P OWE R
I NPUT DC 12V HDM I IN V GA I N P C AUDIO I N CV BS I N L R RF I N OUT EARPHONE COAX I AL OUT
POWER
S OURCE
MENU
CHANNE L
V OLUME
