Sfp host board mechanical layout, Unit: mm – Lynn Electronics MC-SFP-10km User Manual
Page 7
www.lynnelec.com
MC-SFP-10km
1310 nm Single-mode Transceiver, 10.5dB margin
Small Form Pluggable (SFP), 3.3 V
1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet
TEC Opitx Solutions
Division of Lynn Electronics Corp.
154 Railroad Drive • Ivyland, PA. 18974

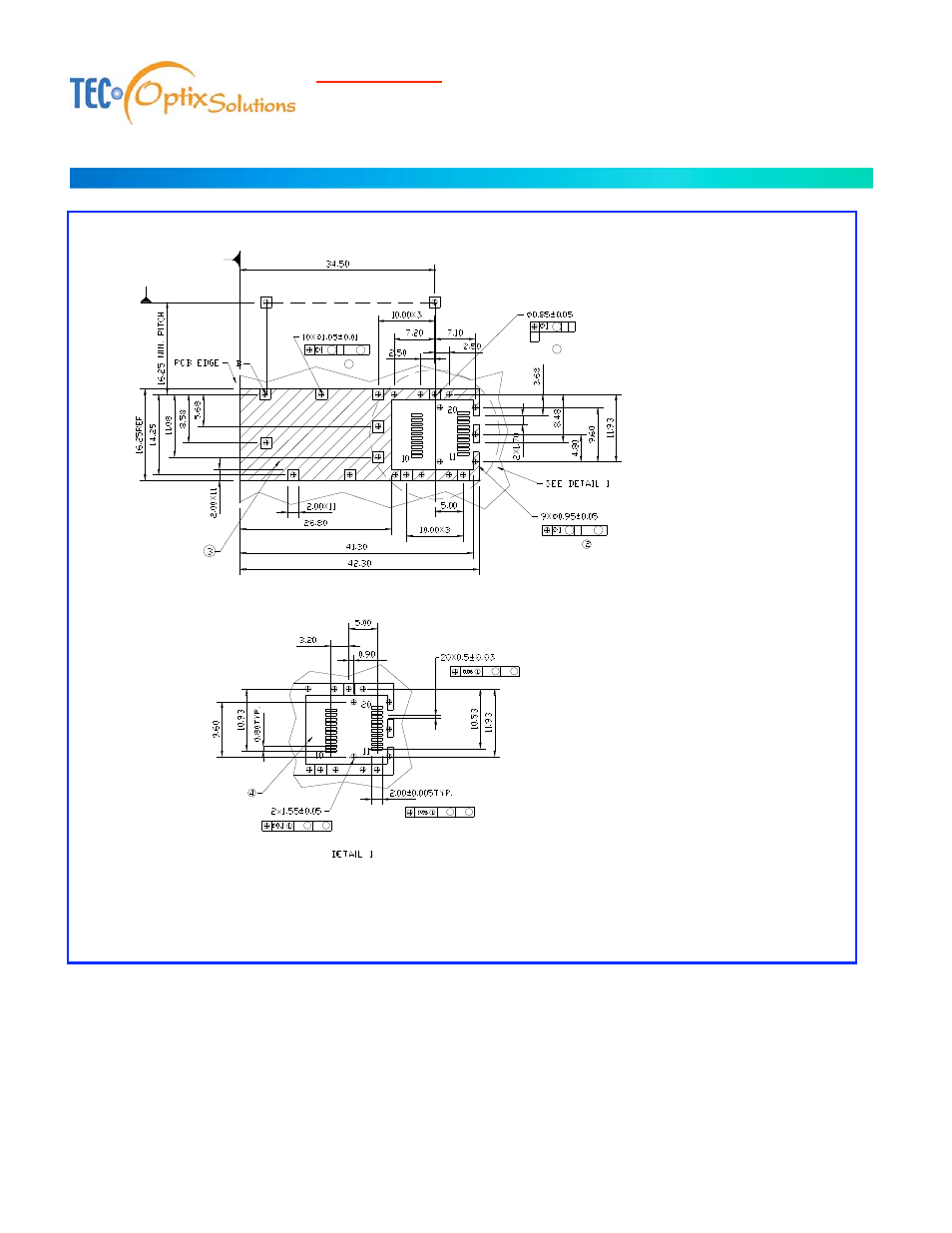

SFP host board mechanical layout
L A S
L
A S
A S S
S
A S
S
A S
LEGEND
1.PADS AND VIAS ARE CHASSIS GROUND
2.THROUGH HOLES, PLATING OPTIONAL
3.HATCHED AREA DENOTES COMPONENT
AND TRACE KEEPOUT(EXCEPT CHASSIS
GROUND)
4.AREA DENOTES COMPONENT KEEPOUT
(TRACES ALLOWED)
DIMENSIONS ARE IN MILLIMETERS
Unit: mm
