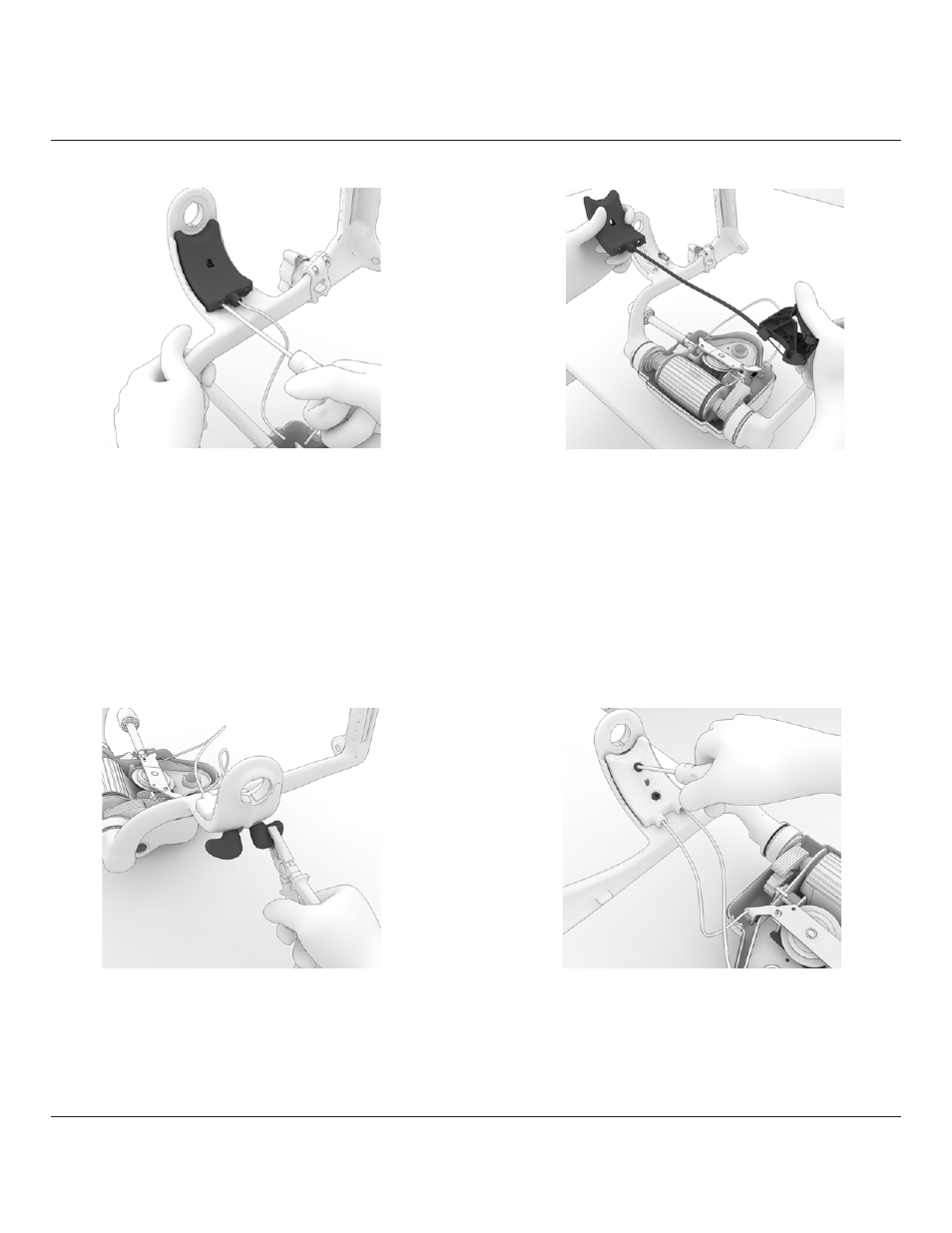

30. Using #2 phillips head

screwdriver, remove and

discard (2) screws securing

pneumatic control end to

swing arm.

32. Using pliers, twist off

appropriate tilt knobs from

lever of tilt control.

31. Remove pneumatic

cable assembly from chair

and dispose of properly.

33. Using #2 phillips head

screwdriver, remove the

screws from tilt control cover.
