Herman Miller Aeron Chairs - Disassembly For Recycling User Manual
Page 7
Z
© 2011 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z, Aeron, Co/Struc and Mirra are among the registered trademarks of Herman Miller, Inc.
TM
Sense, Setu, Tu and Sayl are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
7
Part no. 1b9vtf rev A.

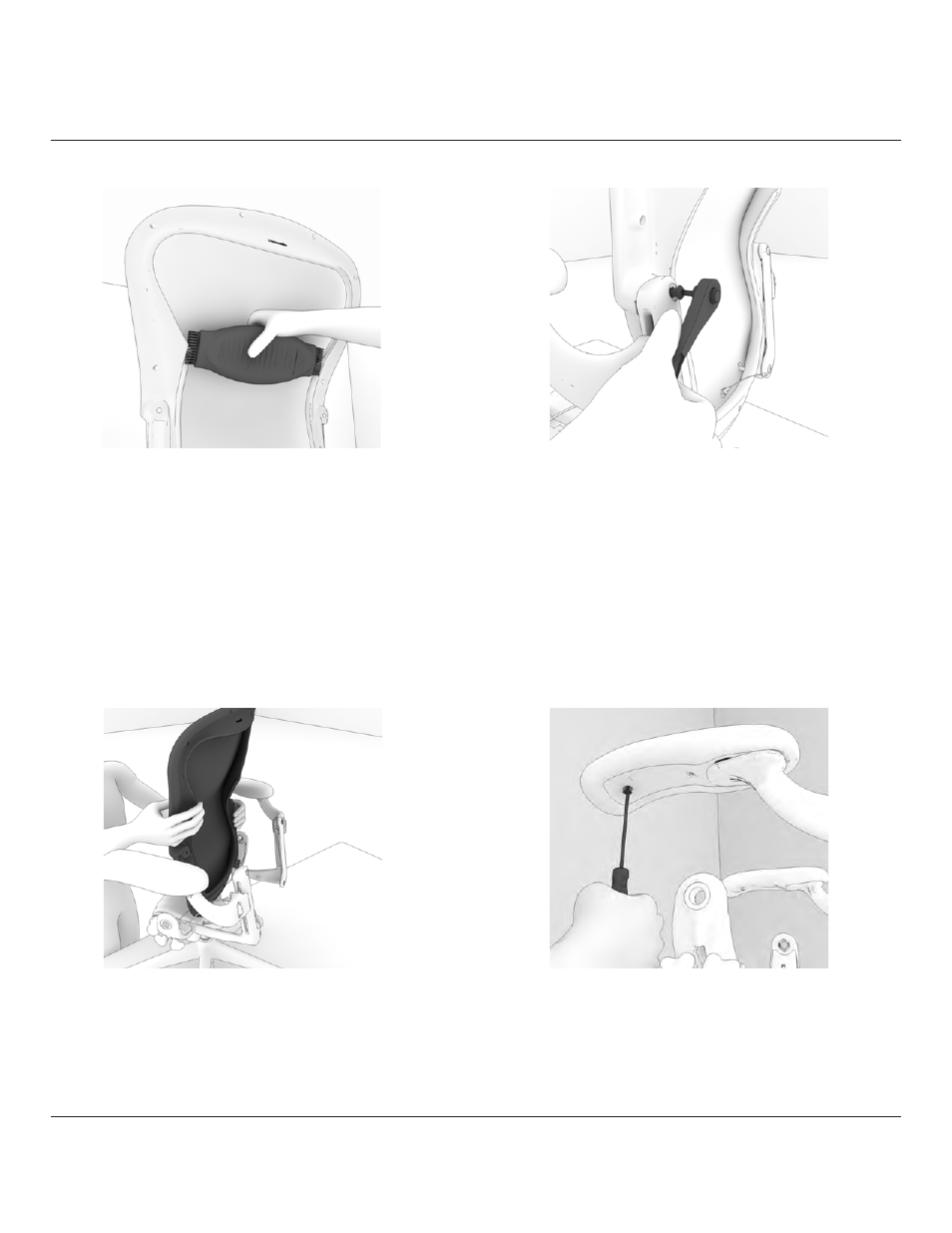

22. Remove lumbar from
back.
24. Remove back frame and
set aside.
23. Using ratchet wrench
and 5mm hex bit to remove
(4) screws attaching back
frame to swing arms.
25. Using #2 phillips head
screwdriver, remove screws.
