Issue 4.2.B Xedio Suite Version 4.2 – User Manual - Ingest Organizer
EVS Broadcast Equipment – June 2012
12
3.4 SCHEDULER
3.4.1 P
URPOSE

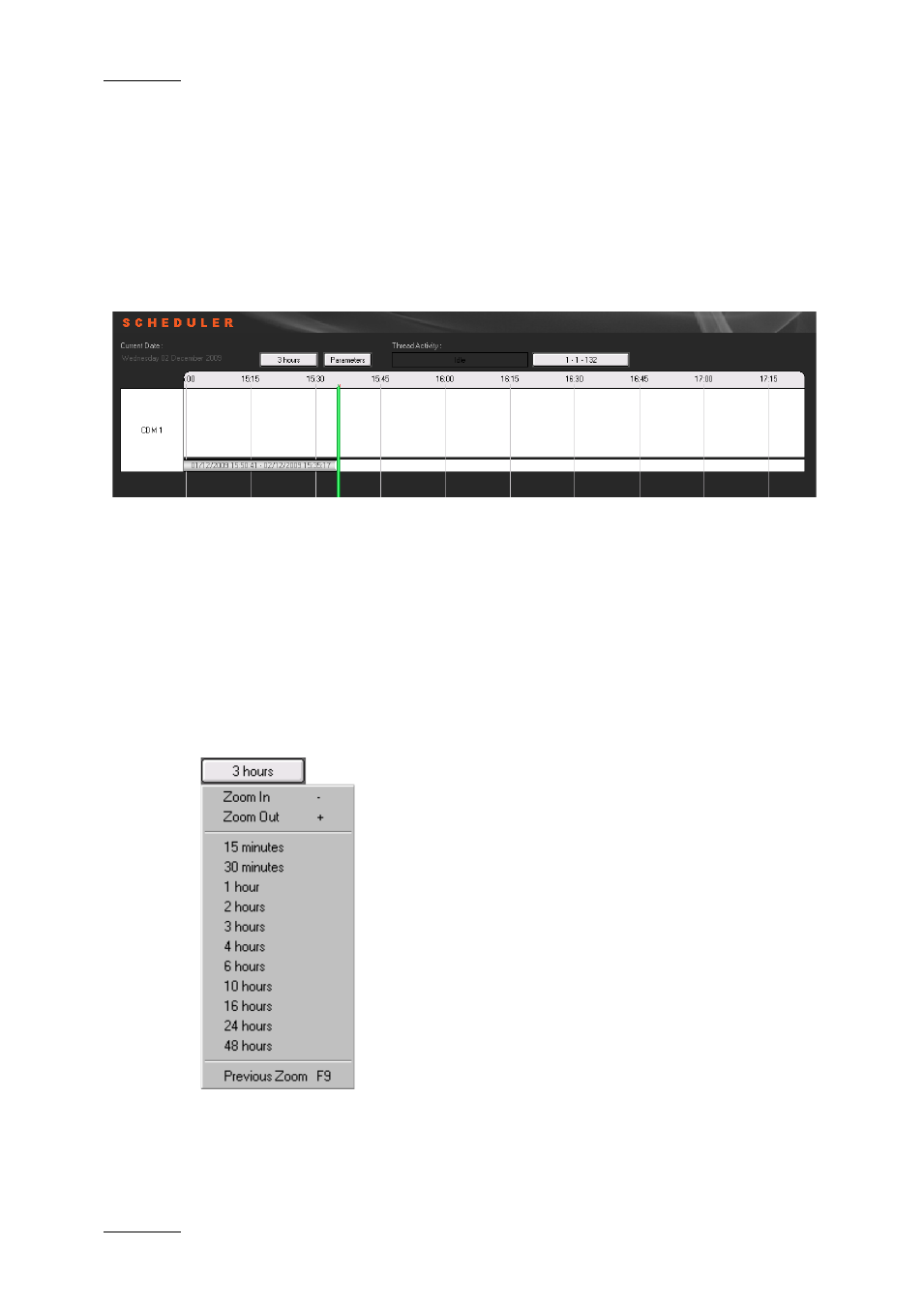

The Scheduler tab displays a timeline with all the records already encoded, being
encoded or scheduled to take place within the displayed time window.
Each logical encoder has its own timeline.
The green line is the nowline and reflects the current time. The thin red line
corresponds to the time before which no action can be performed through the
scheduler. Ingest media is displayed in the form of blocks in the timeline.
3.4.2 T
IMELINE
V
IEW
S
ETTINGS
T
IME
S
PAN
Clicking the [Time] button displays a contextual menu:
This setting sets the range of time displayed on the timeline. The mouse scroll
button may also be used to change this range and zoom in or out the displayed
range.
