3. Network Architecture
XTract is installed on the same computer as an XTAccess application. XTract is
the interface application used to manage the backup and restore functions.
The files to be archived and restored are located on one or several XTnano
servers and storage units connected to the same network.

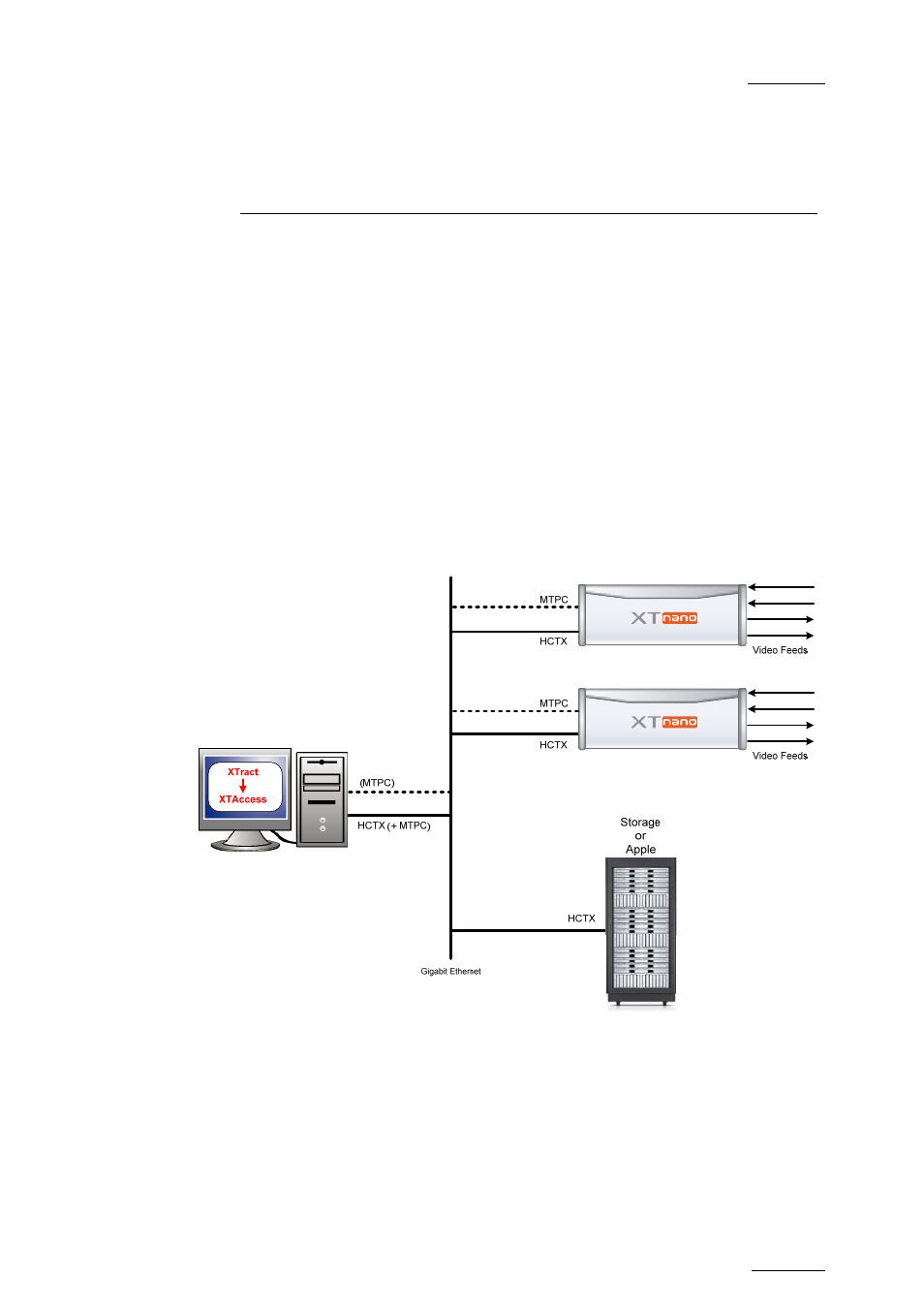

Two networks are used for the various communication and the transfer of files as
illustrated. Physically, these networks can be one and the same or separate for
the sake of performance:
o
The MTPC network is used to detect XTnano servers, to identify them, and to
transfer the list of clips to be backed up.
o
The HCTX network is used to transfer the clips data between the XTract and
XTAccess computer, the XTnano servers and the storage unit.
