DESCRIPTION
• Hand-wired circuit board built with
original spec 1975 components
• Original high quality Switchcraft jacks
and Carling bypass switch
• Hand-selected FETs matched to
produce and rich phasing
POWER
The MXR Script Phase 90 can be
powered by one 9-volt battery
(accessed through the bottom
of the pedal).
CONTROlS
• SPEED knob controls rate of
phase effect
• FOOTSWITCH toggles effect on/bypass
(indicated by red LED)
ClASSIC 80’s ROCK PSEUDO lESlIE
CSP101Sl SCRIPT PHASE 90
DIRECTIONS
• Run a cable from your guitar to the
Script Phase 90’s Input jack and run
another cable from the Script Phase
90’s Output jack to your amplifier.
• Start with the SPEED knob at
12 o’clock.
• Turn the effect on by depressing
the footswitch.
• Rotate the SPEED knob clockwise for
a faster phase effect and counterclock-
wise for a slower phase effect.

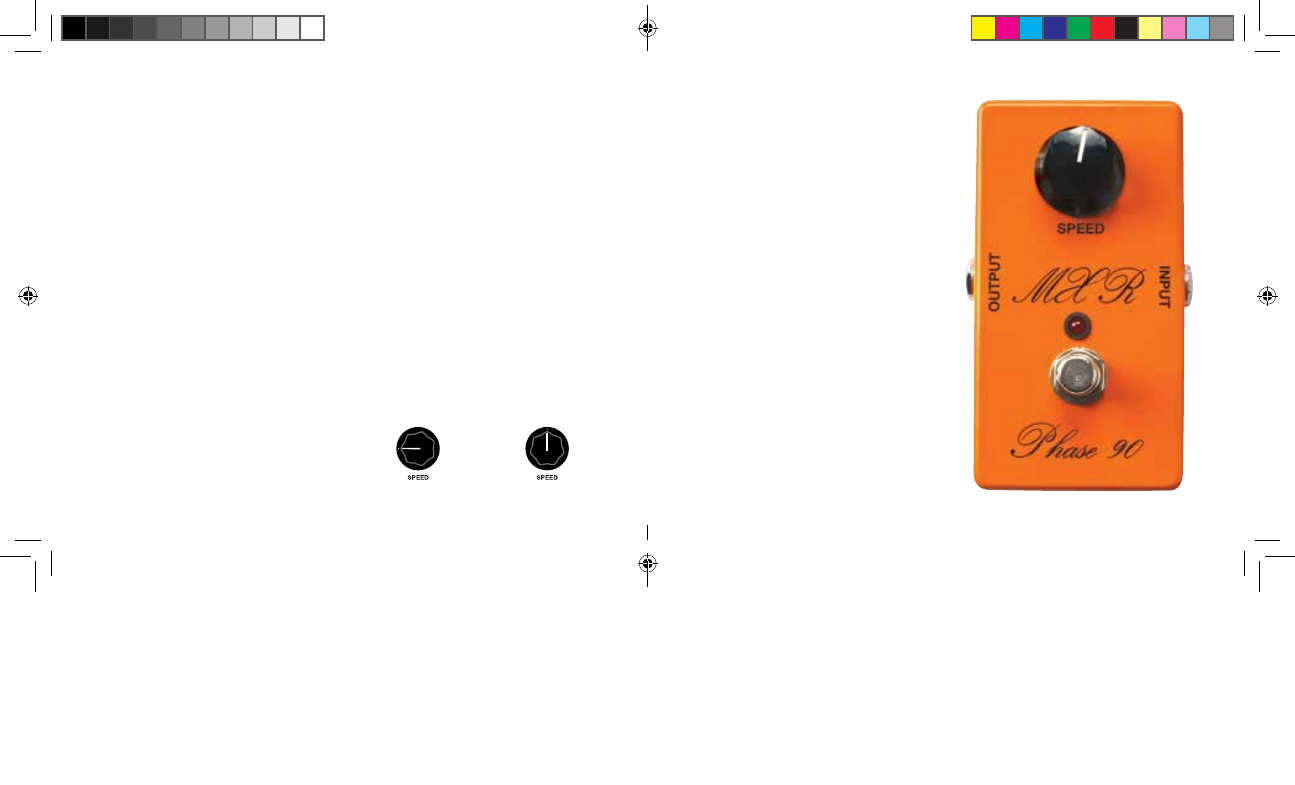

SAMPlE SETTINgS
9:00 12:00
SPECIFICATIONS
Input Impedance
470 kΩ
Output Impedance 10 kΩ
Max Input Level -5 dBV
Signal to Noise Ratio* > 95 dB
Current Draw 8.2 mA
Bypass True Hardwire
Power Supply 9 volts DC
* A-weighted, all controls at mid position
