SAMPLE SETTINGS
CSP265 JOE BONAMASSA FET DRIVER
JOE BONAMASSA FLOYD THE PIG OVER D CLIFF
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658

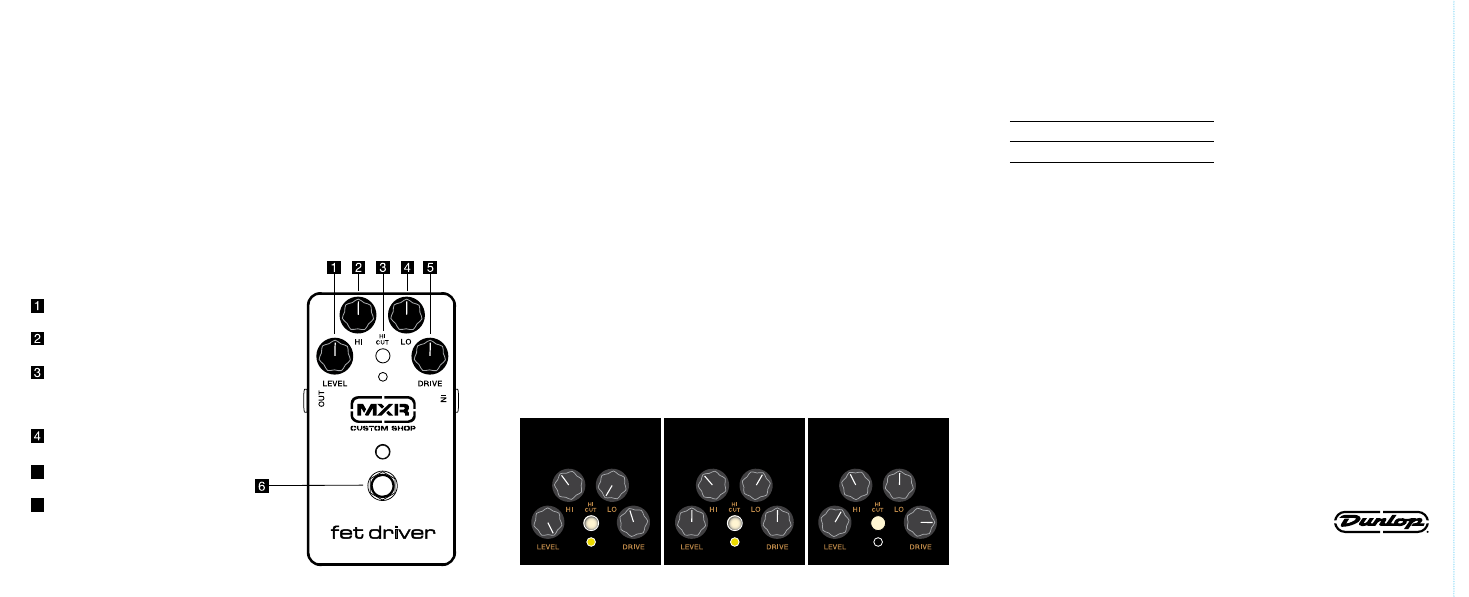

CONTROLS
LEVEL knob controls
overall effect volume
HI knob cuts or boosts
high frequencies
HI CUT switch rounds off
high frequencies when
playing at high volumes
(green LED indicates on)
LO knob cuts or boosts
low frequencies
5 DRIVE knob controls overall
amount of distortion
6 FOOTSWITCH toggles effect on/
bypass (blue LED indicates on)
POWER
The MXR Joe Bonamassa FET
Driver is powered by one 9-volt
battery (remove bottom plate to
install), a 9-volt AC adapter such
as the Dunlop ECB003/ECB003E,
or a DC Brick ™ power supply .
DESCRIPTION
• Organic, amp-like overdrive
and distortion
• Two-band EQ section for detailed
shaping of distorted signal
• True bypass switching
DIRECTIONS
• Run a cable from your
guitar to the FET Driver’s
INPUT jack and run another
cable from the FET Driver’s
OUTPUT jack to your amplifier.
• Start with all controls at
12 o’clock.
• Turn the effect on by depressing
the footswitch.
• Rotate the LEVEL knob clockwise
to increase overall volume of
effect or counterclockwise to
decrease it.
• When playing at loud volumes,
the HI CUT switch can be used
to roll off high frequencies for a
rounder, slightly warmer sound.
Note that this frequency cut
occurs at an earlier stage than
any cutting or boosting from the
HI and LO controls and therefore
does not affect the behavior of
either.
• Rotate the HI knob clockwise
to boost high frequencies or
counterclockwise to cut them.
• Rotate the LO knob clockwise
to boost low frequencies or
counterclockwise to cut them.
• Rotate the DRIVE knob
clockwise to increase amount
of distortion or counterclockwise
to decrease it.
SPECIFICATIONS
Input Impedance
1 MΩ
Output Impedance 15 kΩ
Noise Floor* -88 dBV
Bypass True Hardwire
Current Draw 25 mA
Power Supply 9 volts DC
*A-weighted
