ZW90 WYLDE PHASE
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658

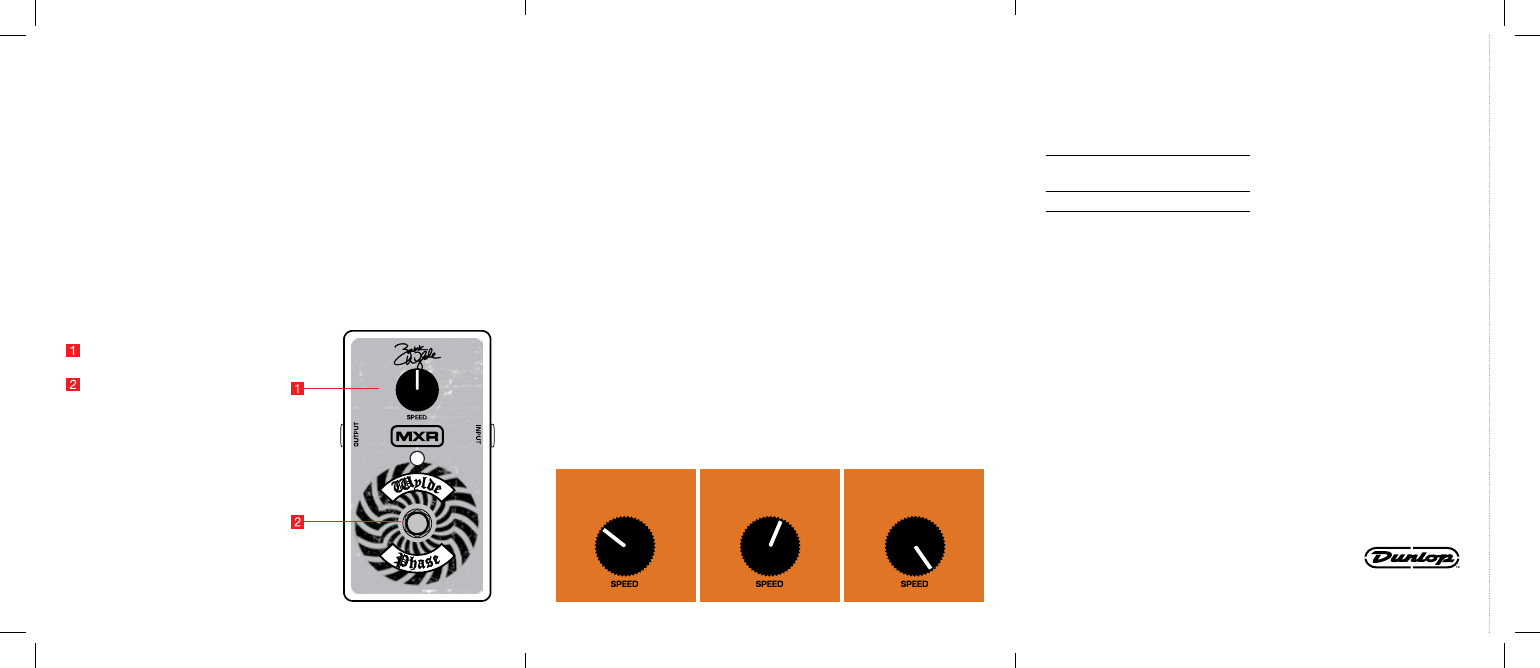

CONTROLS
SPEED knob varies rate of
phase sweep
FOOTSWITCH toggles effect
on/bypass
DESCRIPTION
• Add shimmery velocity to lead
licks, or add swoosh to chords
• Works well with bass, keyboards
and even vocals
• Heard on Zakk’s legendary
blazing leads and solos
• Limited 2011 run
POWER
The MXR Wylde Phase can be
powered by one 9-volt battery
(accessed by removing the bottom
plate of the pedal), a Dunlop
ECB003 AC adapter (ECB003E in
Europe), or a Dunlop DCB10 DC
Brick power supply.
DIRECTIONS
• Run a cable from your guitar
to the Wylde Phase’s Input jack
and run another cable from the
Wylde Phase’s Output jack to
your amplifier.
• Set the Wylde Phase’s
Speed control knob to
the 12 o’clock position.
• Turn the effect on by depressing
the footswitch.
• Rotating the Speed knob in a
clockwise motion results in a
faster phase effect, while rotating
the knob counterclockwise results
in a slower phase effect.
SAMPLE SETTINGS
ZAKK’S OUTTA SPACE A-MUSEING
SPECIFICATIONS
Input Impedance
1 MΩ
Output Impedance 10 kΩ
Nominal Input -20 dBV
Signal to Noise > 96 dBA
Bypass Hardwire
Current Draw 5 mA
Power Supply DC 9 Volts
