Buddy guy signature wah manual-inside, Four-color print onto cover stock – Dunlop Manufacturing BG95 User Manual
Page 2
SETUP INSTRUCTIONS
A) Insert a 9-volt battery, plug in an ECB-003 power adapter (ECB-003E for
Europe), or plug into a Dunlop DC Brick multi-power supply 9-volt output.
B) Run a shielded instrument cable from your
guitar to the BG-95’s Instrument jack.
C) Run another shielded instrument cable from the
BG-95’s Amplifier jack into your amplifier input.
D) Turn on the amplifier and begin playing.
E) Select between two distinct wah voices with the side-mounted Red
kickswitch. Choose “DEEP” (button “out”) for a big and throaty growl or
“BG” (button “in”, Red LED lit) for a warm and bell-like wah tone.
F) To turn the pedal on/off, push the toe of the pedal down until you feel a
“click”. Illuminated Blue LED indicates OFF.
TECHNICAL SPECIFICATIONS
- Filter Parameters
“BG” Mode
- Low Pass .......................................290Hz - 390Hz
- High Pass .......................................1.5kHz –1.9kHz
“DEEP” Mode
- Low Pass ........................................250Hz - 330Hz
- High Pass .......................................1.3kHz –1.6kHz
- Input Impedance (Wah Active).............1MEG
- Output Impedance...................................<4.7K
- Maximum Input Level ............................-6dBm @ Filter’s Center Frequency
- Maximum Output Level ..........................7dBm
- Maximum Gain (Toe Down) ...................16dB
- Maximum Gain (Heel Down) .................16dB
- S/N (Heel Down)......................................>96dBV
- S/N (Toe Down)........................................>95dBV
- Bypass Configuration .............................True Hardwire Bypass
- Power Requirements..............................<3.5mA @ 9V DC

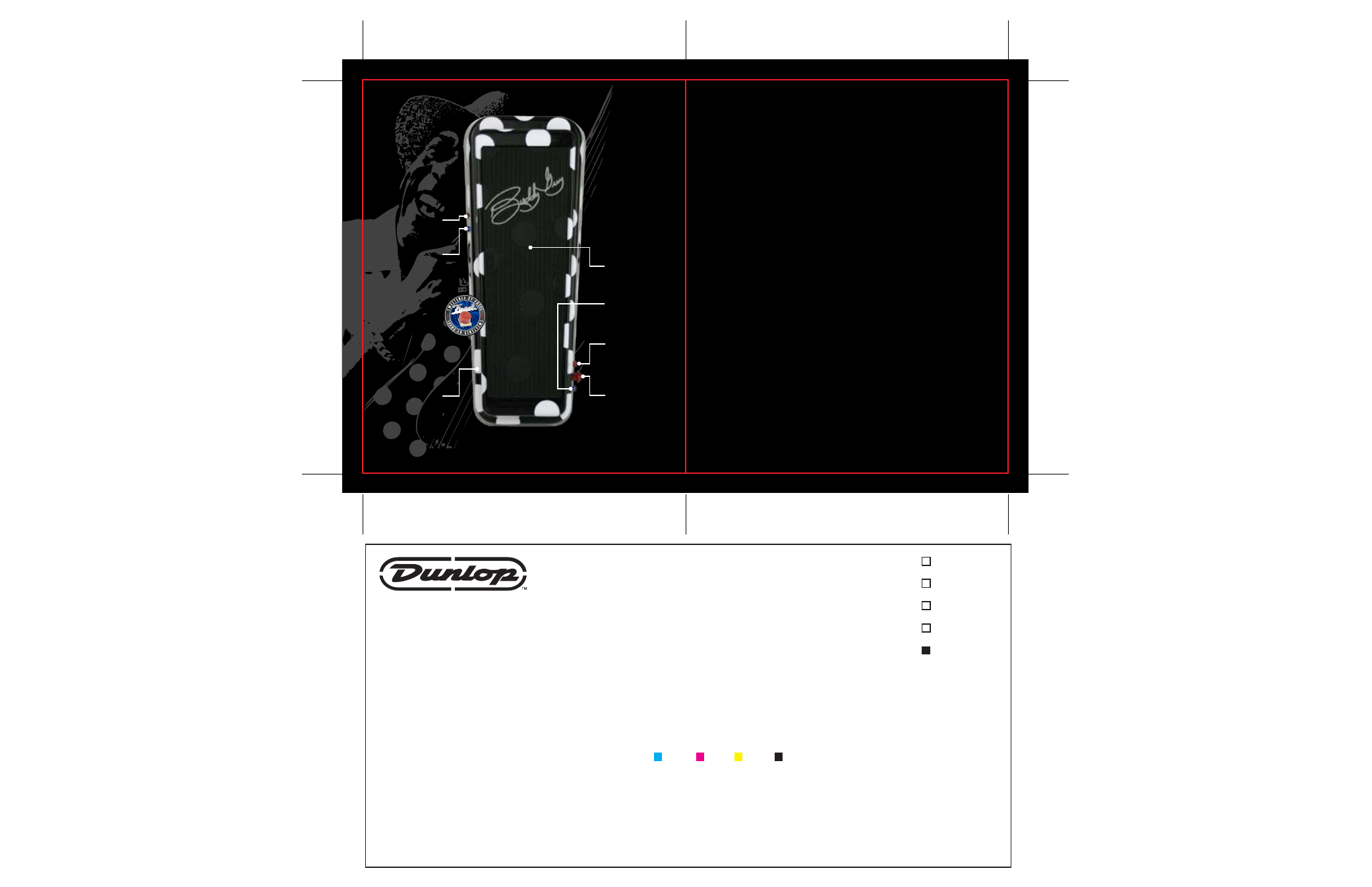

CUSTOM BUDDY GUY
SIGNATURE TREAD
SELECT BETWEEN “BG”
OR “DEEP” WAH VOICES
BLUE LED INDICATES
EFFECT ON/OFF
RED LED INDICATES
EITHER “BG”
OR “DEEP” MODE
BLUE LED INDICATES
EFFECT ON/OFF
RED LED INDICATES
EITHER “BG”
OR “DEEP” MODE
SIGNATURE POLKA DOT
PATTERN PAINT JOB
