SAMPLE SETTINGS
M75 SUPER BADASS DISTORTION
CHUNKY METAL DIRTY BOOST CLASSIC OD
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658

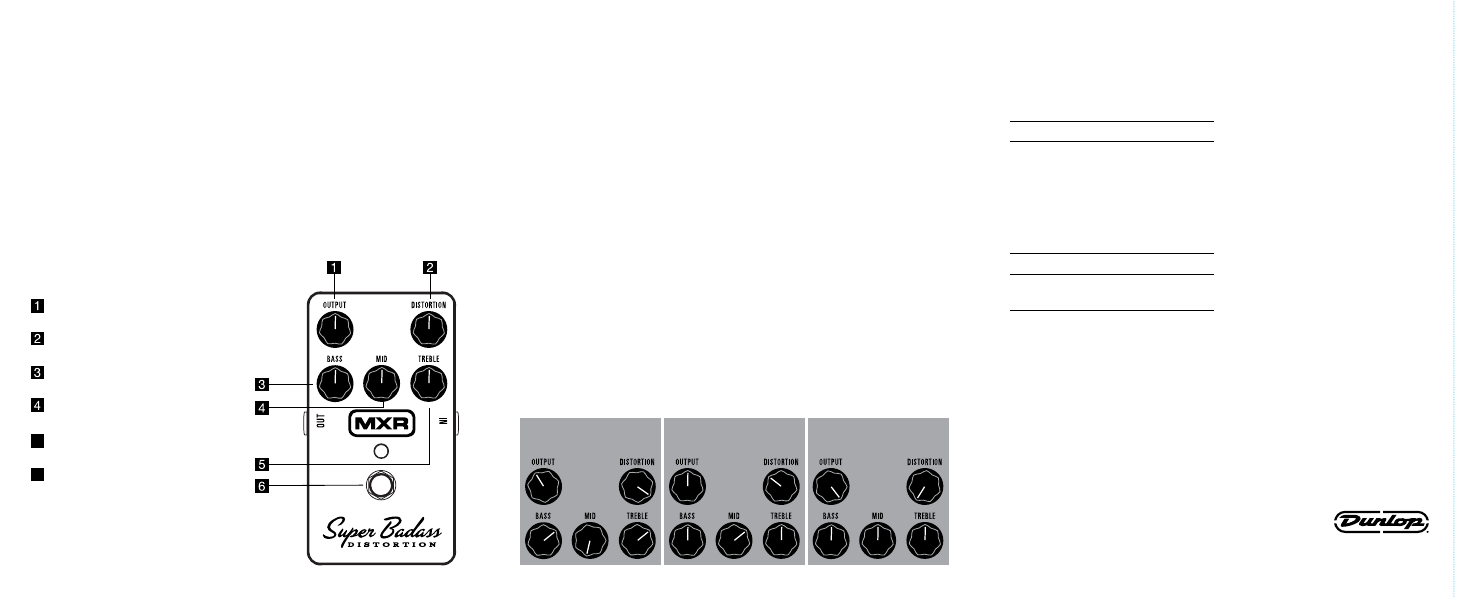

CONTROLS
OUTPUT knob controls overall
effect volume
DISTORTION knob controls
amount of distortion
BASS knob cuts or boosts
low frequencies
MID knob cuts or boosts
midrange frequencies
5 TREBLE knob cuts or boosts
high frequencies
6 FOOTSWITCH toggles effect on/
bypass (red LED indicates on)
POWER
The MXR Super Badass Distortion
is powered by one 9 volt battery
(remove bottom plate to install), a 9
volt AC Adapter such as the Dunlop
ECB003/ECB003EU or a power
supply such as the DC Brick
™ .
DESCRIPTION
• Decades of distortion tones
in one pedal
• Ultra wide range of
distortion gain
• Highly tweakable EQ
• True hardwire bypass
DIRECTIONS
• Run a cable from your guitar
to the Super Badass Distortion’s
Input jack and run another
cable from the Super Badass
Distortion’s Output jack to
your amplifier.
• Start with all controls at
12 o’clock.
• Turn the effect on by depressing
the footswitch.
• Rotate the OUTPUT clockwise
to increase volume or
counterclockwise to decrease it.
• Rotate the DISTORTION knob
clockwise to increase amount of
distortion or counterclockwise to
decrease it.
• Rotate the BASS knob clockwise
to boost low frequencies or coun-
terclockwise to cut them.
• Rotate the MID knob clockwise
to boost midrange frequencies or
counterclockwise to cut them.
• Rotate the TREBLE knob clock-
wise to boost high frequencies or
counterclockwise to cut them.
SPECIFICATIONS
Input Impedance 390 kΩ, 500 Hz
Output Impedance*
3.4 kΩ
Nominal Output Level -8 dBV
Signal to Noise* 93 dBV
Tone Controls
BASS
+/-11 dB, 150 Hz
MID +/-12 dB, 500 Hz
TREBLE +/-10 dB, 10 kHz
Distortion Gain
15 dB to 76 dB, 1 kHz
Bypass True Hardwire
Current Draw 10 mA
Power Supply 9 Volts DC
*A-weighted, all controls at mid position
