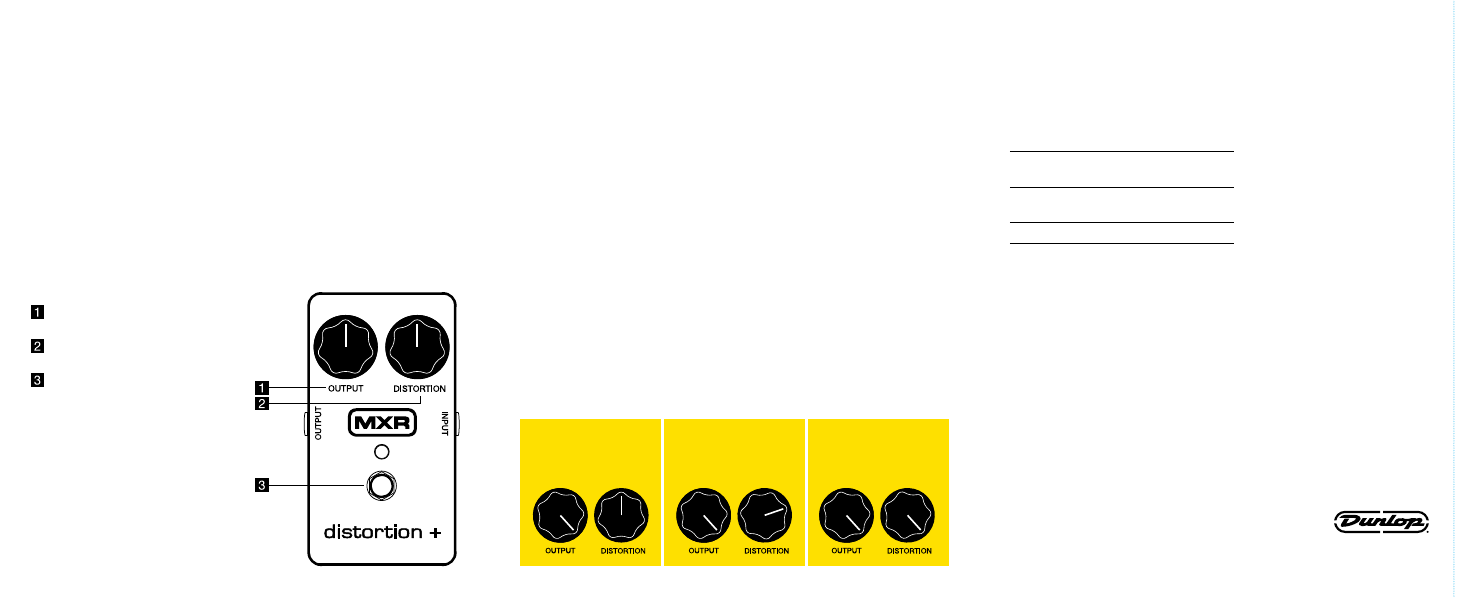

SAMPLE SETTINGS
M104 DISTORTION +
DESCRIPTION
• Overdrive with just the right flavor
of non-brittle signal breakup
• Organic, germanium-
powered clipping
• Goes from subtle overdrive
to fuzz-like saturation
CONTROLS
OUTPUT knob controls
overall volume of effect
DISTORTION knob controls
amount of distortion
FOOTSWITCH toggles
effect on/bypass (red LED
indicates on)
SPECIFICATIONS
Input Impedance
1 MΩ
Output Impedance* 25 kΩ
Nominal Input Level -22 dBV
Maximum Output Level -14 dBV
Noise Floor** -74 dBV
Distortion Gain 10 dB to 45 dB, 1 kHz
Bypass
Hardwire
Current Draw 2.5 mA
Power Supply 9 volts DC
*Output control at mid position
**A-weighted, all controls at maximum clockwise position
BLACK STRIPED
EXPLOSION
MADE IN RHOADS RUSH TO NOWHERE
POWER
The MXR Distortion+ is powered
by one 9-volt battery (remove
bottom plate to install), a 9-volt
AC adapter such as the Dunlop
ECB003/ECB003E, or a DC Brick
™
power supply .
DIRECTIONS
• Run a cable from your guitar
to the Distortion+’s INPUT jack
and run another cable from the
Distortion+’s OUTPUT jack to
your amplifier.
• Start with all controls at
12 o’clock.
• Turn the effect on by depressing
the footswitch.
• Rotate OUTPUT knob clockwise
to increase overall volume of
effect or counterclockwise to
decrease it.
• Rotate DISTORTION knob
clockwise to increase amount
of distortion or counterclockwise
to decrease it.
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
