DESCRIPTION
• A true rock and roll artifact — Jimi’s original Octavio produced the
unforgettable fuzzed-out octave tones heard on the legendary Band of Gypsys:
Live at the Fillmore East Performance.
• An exact clone of the amazing, “octave up” pedal that Jimi used to make rock
history.
DIRECTIONS
To begin using your Jimi Hendrix Octavio:
A) Run a cable from your guitar to the Octavio’s Input jack and run another
cable from the Octavio’s Output jack to your amplifier.
B) Set all of the Octavio’s controls to their 12 o’clock position.
C) Turn the effect on by depressing the footswitch.
D) Dial in the amount of desired octave/fuzz by adjusting the FUZZ knob.
E) Use the LEVEL knob to set the desired volume level of the effect.

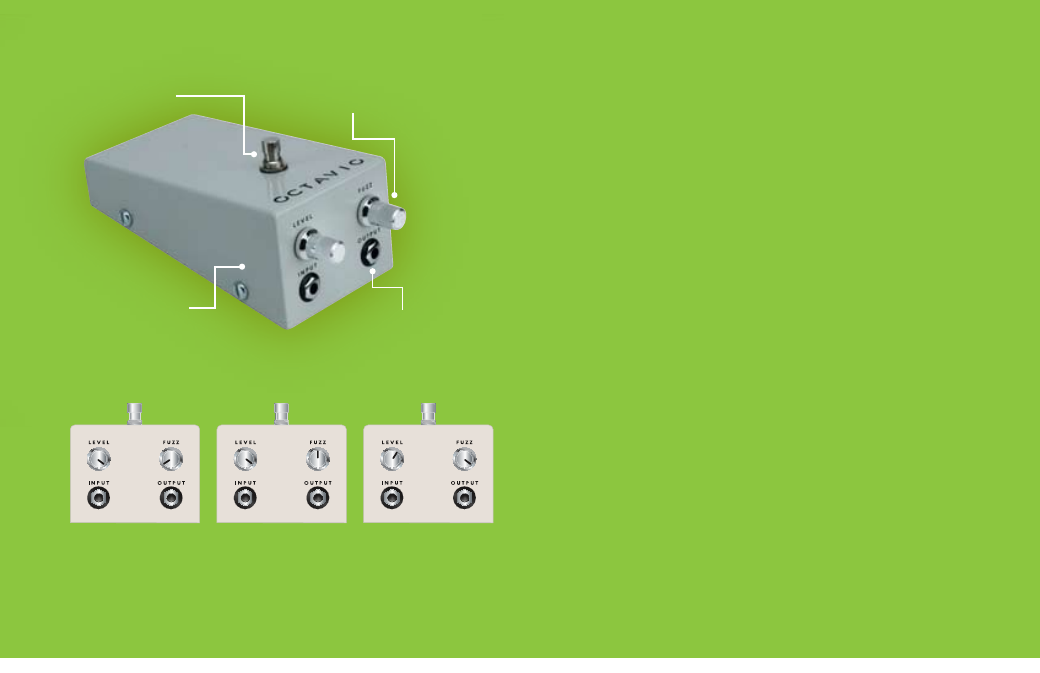

SAMPLE SETTINGS
FAITHFUL REPLICATIONS
OF THE ORIGINAL KNOBS
TOP GRADE U.K. MADE
CLIFF JACKS
TRUE BYPASS
SWITCHING
WELDED STEEL CHASSIS
POWER REQUIREMENTS
Single 9-volt alkaline battery
TECHNICAL SPECIFICATIONS
- Input Impedance @ FUZZ CW............................................................... 15 K ohm
- Input Impedance @ FUZZ CCW.......................................................... 187 K ohm
- Maximum Input Level ................................................................................... -8 dB
- Minimum Gain...................................................................................................8 dB
- Maximum Gain................................................................................................37 dB
- Output Impedance @ 1 KHz Max. Volume…..................................... 1.5 K ohm
- Output Impedance @ 1 KHz -6dB Volume… .................................... 115 K ohm
- Maximum Output Level .......................................................................... 1.7 V P-P
- Power Consumption.......................................................................4 mA @ 9 VDC
- Effect Switching ...............................................................True Hardwire Bypass
*All Specifications are +/- 10%
WHO KNOWS
Jimi Hendrix - Band of Gypsys
Fuzz Knob = at minimum
Level Knob = at maximum
PORK PIE HAT
Jeff Beck - Wired
Fuzz Knob = 12 o’clock
Level Knob = 4 o’clock
OVER THE TOP
Fuzz Knob = at maximum
Level Knob = 1 o’clock
