SAMPLE SETTINGS
M102 DYNA COMP
®
COMPRESSOR
DESCRIPTION
• In-line compressor “evens
out” your signal
• Especially useful for increased
sustain with stable dynamics
• Nashville studio standard

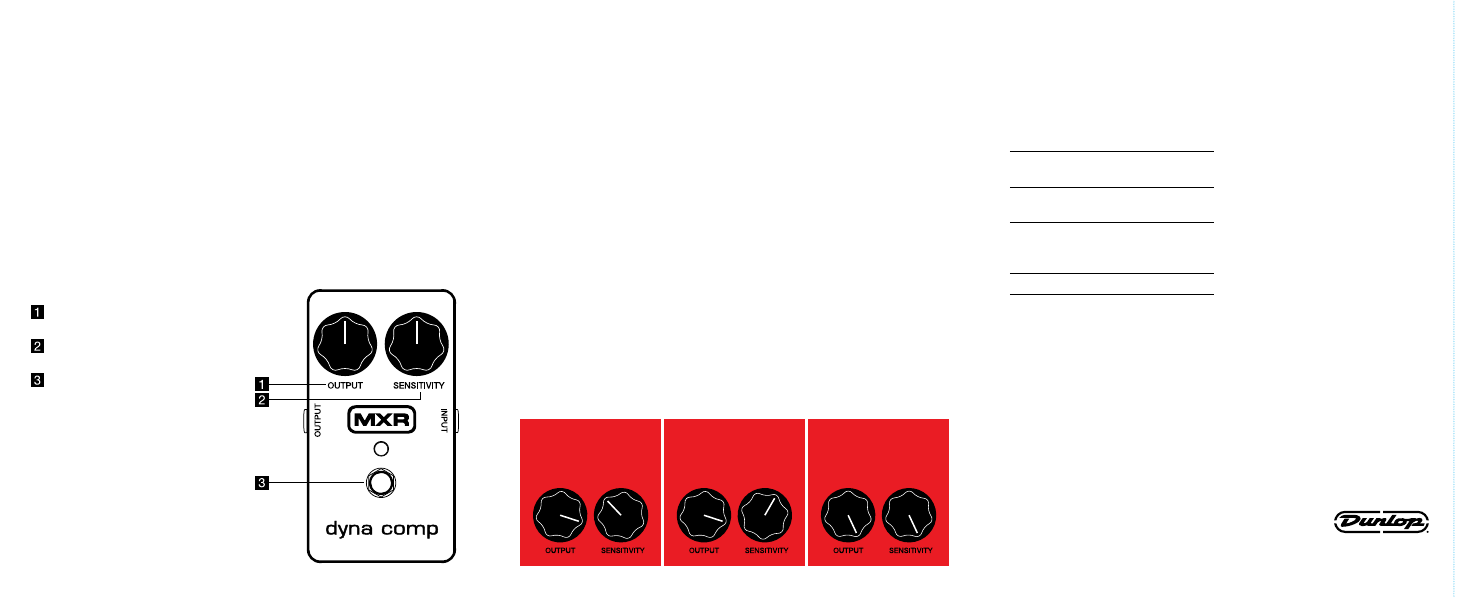

CONTROLS
OUTPUT knob controls overall
effect volume
SENSITIVITY knob sets
compression ratio
FOOTSWITCH toggles effect on/
bypass (red LED indicates on)
SPECIFICATIONS
Input Impedance
1 MΩ
Output Impedance 10 kΩ
Nominal Input Level -5 dBV
Nominal Output Level -12 dBV
Noise Floor* 95 dBV
T.H.D 0.2% Typ. at -20 dBV, 1 kHz
Max Compression 36 dB
Attack Time 5 ms
Release Time 1 s
Bypass True Hardwire
Current Draw 3.3 mA
Power Supply 9 volts DC
*A-weighted
NASHVILLE NASTY
BOTTLENECK NEW WAVE SQUASH
DIRECTIONS
• Run a cable from your guitar
to the Dyna Comp’s INPUT jack
and run another cable from the
Dyna Comp’s OUTPUT jack to
your amplifier.
• Start with all controls at
12 o’clock.
• Turn the effect on by depressing
the footswitch.
• Rotate OUTPUT knob clockwise
to increase overall volume of
effect or counterclockwise to
decrease it.
• Rotate SENSITIVITY knob
clockwise to increase sensitivity
(more compression) or counter-
clockwise to decrease it (less
compression).
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
POWER
The Dyna Comp is powered by one
9-volt battery (remove bottom plate
to install), a 9-volt AC adapter such
as the Dunlop ECB003/ECB003E,
or a DC Brick
™ power supply .
