SAMPLE SETTINGS
M234 ANALOG CHORUS
DESCRIPTION
• Analog bucket
brigade technology
• Small footprint saves
pedalboard space
• High and Low filter cut controls
for detailed tone sculpting
• Two outputs for a wide and
sweeping stereo spread
POWER
The MXR M234 Analog Chorus
can be powered by one 9 volt
battery (accessed by removing the
bottom plate of the pedal), a Dunlop
ECB003 AC adapter (ECB003E in
Europe) or a Dunlop DCB10 DC
Brick power supply.

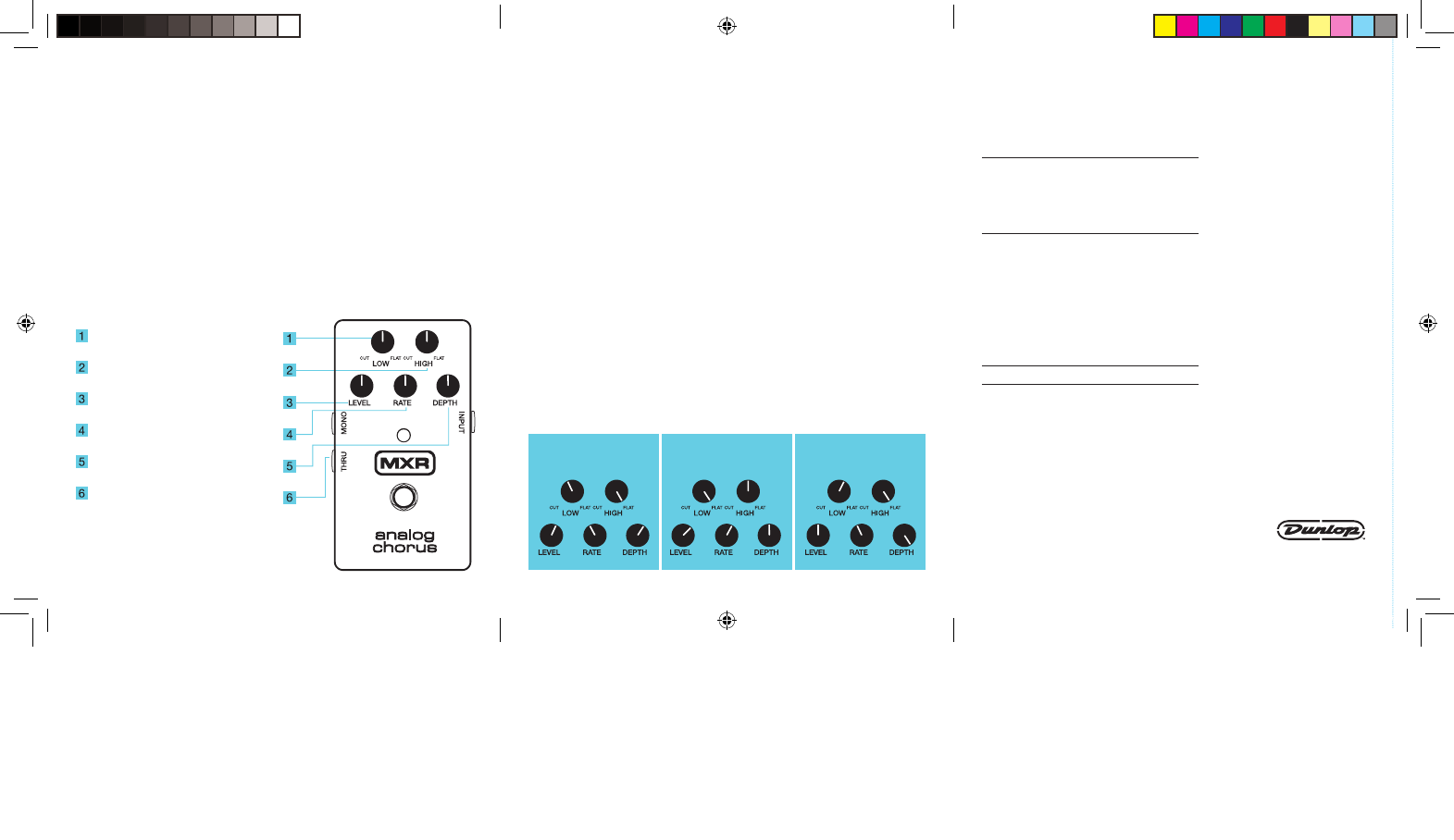

CONTROLS
LOW Controls the amount of
low frequency cut of effect
HIGH Controls the amount of
high frequency cut of effect
LEVEL Controls the overall
volume of the effect
RATE Controls the speed of the
chorus effect
DEPTH Controls overall intensity
of the chorus effect
THRU OUTPUT JACK Engages
stereo mode
DIRECTIONS
• Run a cable from your guitar to
the M234 Analog Chorus’ Input
jack and run another cable from
the M234 Analog Chorus’ Mono
Output jack to your amplifier
(for mono operation). To use the
M234 Analog Chorus in stereo
mode, run an additional cable
from the Thru Output jack to the
input of a second amp. Using
this jack automatically sends the
delayed signal only to the Mono
output jack when the effect is on
and outputs a buffered copy of
the input signal.
• Start off with all of the controls
set to 12 o’clock.
SPECIFICATIONS
Input Impedance
1 MΩ
Output Impedance 1 kΩ
Signal to Noise
Level, Rate, Depth Controls @ Max CW
Tone Controls @ Center Position
Effect On > 96 dBV
Bypass > 106 dBV
Tone Controls (Effects On)
LOW Variable Shelf 12dB/Octave
CW 800 Hz
Center 350 kHz
CCW 70 Hz
HIGH Variable Shelf 6dB/Octave
CW Flat
Center 1.2 kHz
CCW 660 Hz
Bypass Buffered
Current Draw 13 mA
Power Supply DC 9 Volts
• Turn the effect on by depressing
the footswitch. The illuminated
blue LED indicates the unit is on.
• Rotate the Depth control
clockwise to increase the
intensity of the effect.
• Rotate the Rate control clockwise
to increase the speed of the
chorus effect.
• Adjust the Level control to set the
overall volume of the effect.
• Adjust the Low and High controls
to set desired tonality of the
chorus effect.
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
“MOMS” PROM
80’S ANGULAR HAIRCUT
FACE SPACE TWEETER
00’S INDIE SHOE GAZER
SAD SEATTLE RAIN
90’S GRUNGY BALLAD
SCORE/FOLD SCORE/FOLD SHORT TRIM
