Dunlop Manufacturing JHM2 - Manual (Page 2)

DIRECTIONS
• Run a cable from your guitar to the
Octavio’s Input jack and run another
cable from the Octavio’s Output jack
to your amplifier.
• Start with LEVEL and FUZZ controls
at 12 o’clock.
• Turn the effect on by depressing
the footswitch.
• Rotate LEVEL knob clockwise to increase
overall volume or counterclockwise to
decrease it.
• Rotate FUZZ knob clockwise to increase
amount of octave up fuzz or
counterclockwise to decrease it.

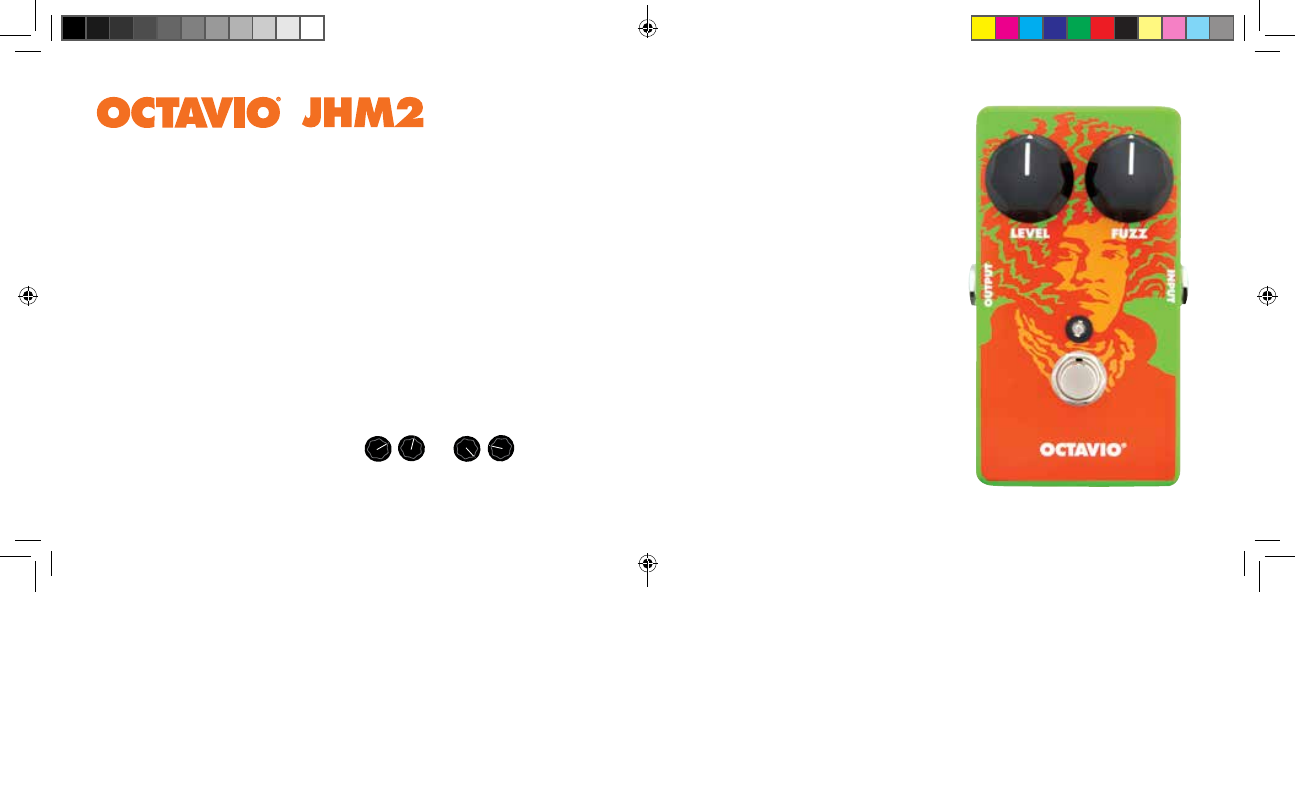

SAMPLE SETTINGS
SPECIFICATIONS
Input Impedance
Max Fuzz 187kΩ
Min Fuzz 15kΩ
Output Impedance
Max Volume 1.5kΩ
Mid Volume 50kΩ
Max Output 1.7 Vpp
Gain Range 8dB to 37dB
Bypass True Hardwire
Current Draw 5.9mA
Power Requirement 9 volts DC
DESCRIPTION
• The octave up fuzz design that Jimi
used to make rock history
• Pedalboard-friendly housing
• Limited edition finish featuring
art by legendary rock artist John
Van Hamersveld
POWER
The JHM2 Jimi Hendrix 70th Anniversary
Tribute Series Octavio can be powered by
one 9 volt battery (accessed via the bottom
of the pedal), a Dunlop ECB003 AC adapter
(ECB003E in Europe) or a DC Brick ™ series
power supply. .
CONTROLS
• LEVEL knob controls overall volume
of effect
• FUZZ knob controls amount of octave
up fuzz
• FOOTSWITCH toggles effect on/bypass
(indicated by blue LED)
PURPLE HAZE ONE RAINY WISH
LEVEL LEVEL FUZZ FUZZ
