Dunlop Manufacturing M84 - Manual (Page 2)

SAMPLE SETTINGS
M84
BASS FUZZ DELUXE
DESCRIPTION
• Based on a rare vintage fuzz
circuit but modified for the
modern bassist
• Tone control affects only the fuzz
signal, leaving your direct signal
clean and clear
• Separate Dry and Fuzz controls
for tonal versatility
• Delivers a bold and cutting
fuzz tone while retaining
clarity and punch
• Analog circuitry for rich
organic tone
POWER
The MXR Bass Fuzz Deluxe can be
powered by one 9 volt battery, a
Dunlop ECB003 9 volt AC adapter
(ECB003E in Europe), or a Dunlop
DCB10 DC Brick power supply. DIRECTIONS
• Run a cable from your bass to
the Bass Fuzz Deluxe’s Input jack
and run another cable from the
Bass Fuzz Deluxe’s Output jack
to your amplifier.
• Set all controls to the 12
o’clock position.
• Turn the effect on by depressing
the footswitch.
• Turn the Dry control clockwise to
increase the amount of the direct
signal or counter-clockwise to
decrease it.
SPECIFICATIONS
Input Impedance
1 MΩ
Output Impedance 100 Ω
Signal to Noise 90 dBV
Fuzz Gain Range 40 dB
Dry Max Gain +6 dB
Bypass True Hardwire
Current Draw 11 mA
Power Supply 9 volts DC
• Turn the Wet control clockwise
to increase the amount of fuzz
signal or counter-clockwise to
decrease it.
• Turn the Tone control clockwise
for a brighter sound; counter-
clockwise for a darker sound.
• Turn the Fuzz control clockwise
to increase the amount of fuzz or
counter-clockwise to decrease it.
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
TOOL BOX
PROG METAL
DESERT SMOKE
STONER HARD ROCK
GRAHAM SLAM
’70 S FUNK ROCK

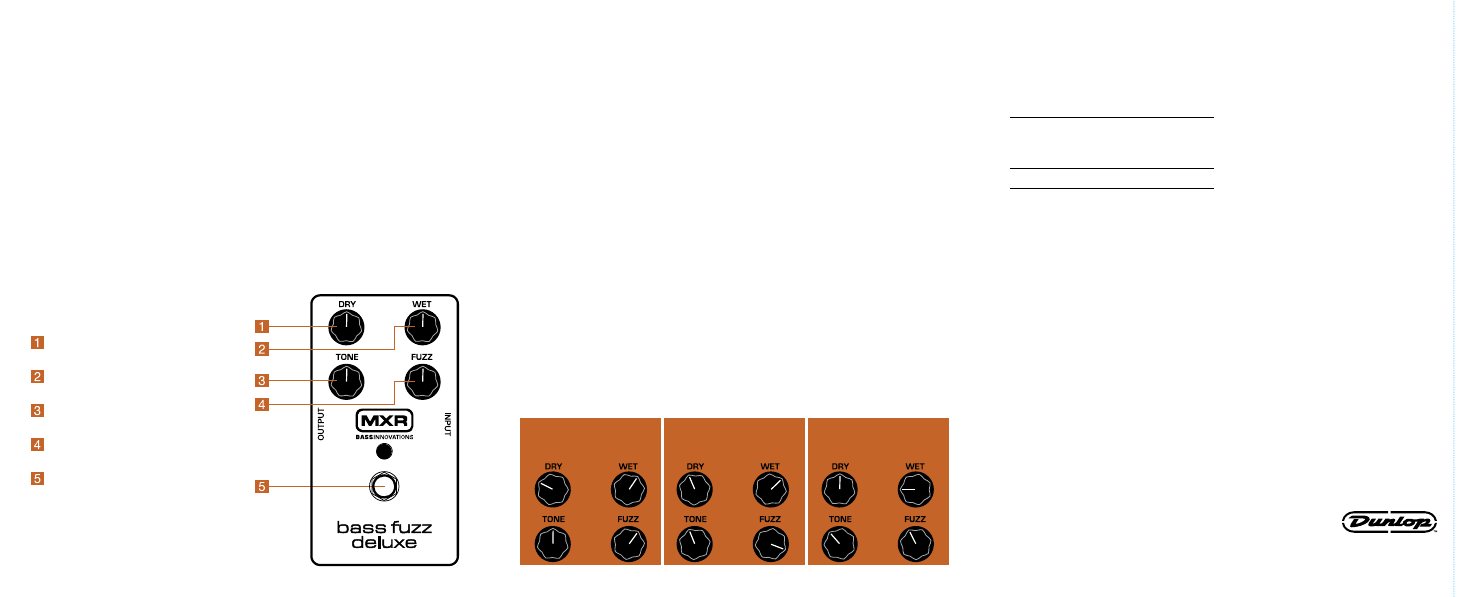

CONTROLS
DRY Controls the direct signal
output level
WET Controls the fuzz signal
output level
TONE Controls the color of the
fuzz signal only
FUZZ Controls the amount
of fuzz
Footswitch toggles effect on/
bypass (White LED indicates on)
