SAMPLE SETTINGS
M117 FLANGER
POWER
The MXR Flanger is powered
by two 9-volt batteries (remove
bottom plate to install), an 18-volt
AC adapter such as the Dunlop
ECB004/ECB004E, or a DC Brick
™
power supply .
DESCRIPTION
• A staple of funky ’70s sounds,
from jet plane to space effects
• Numerous tweakable
parameters
• Does the work of a flanger,
chorus, delay and more
MAY GALLOP GENIUS OF
FLANGE
CHAINED EDDIE
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658

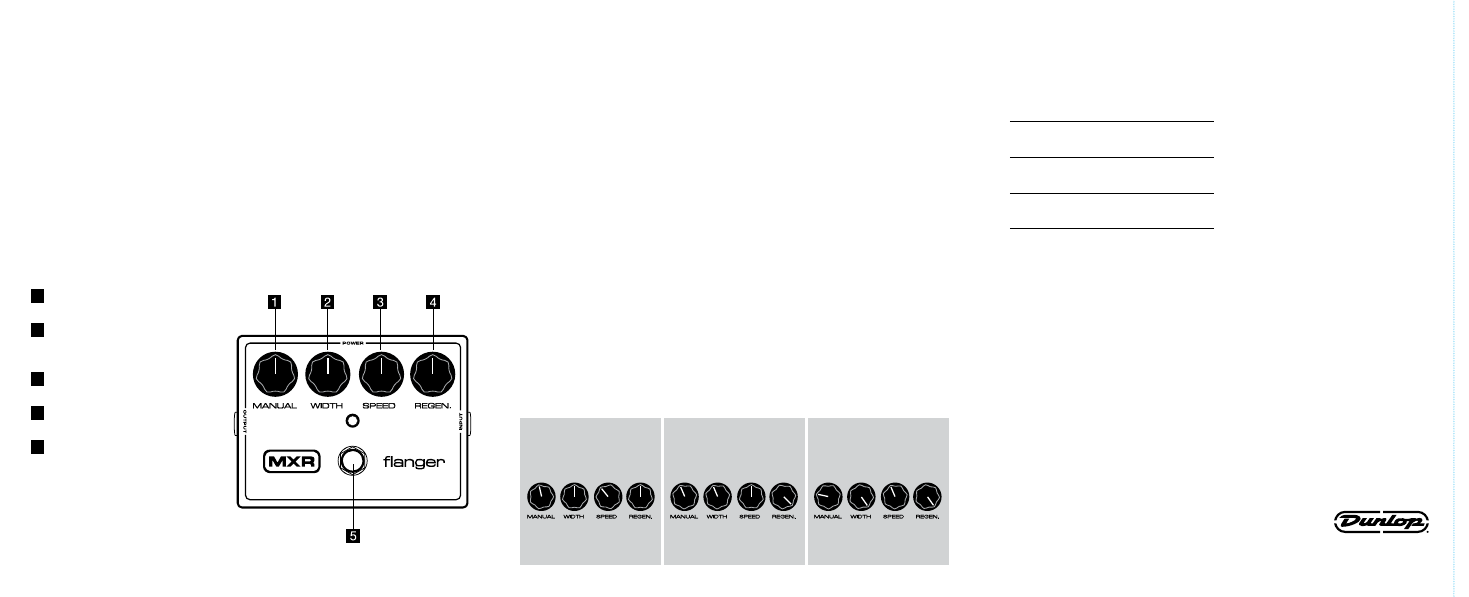

CONTROLS
1 MANUAL knob controls the
degree of phase shifting
2 WIDTH knob controls the
intensity of the time delay
set by SPEED knob
3 SPEED knob controls the
speed of time delay
4 REGEN. knob controls the
intensity of the overall effect
5 FOOTSWITCH toggles
effect on/bypass (blue
LED indicates on)
SPECIFICATIONS
Input Impedance
470 kΩ
Output Impedance 1 kΩ
Max Input Level 5 dBV
Max Output Level 5 dBV
Noise Floor* -98 dBV
Noise Reduction 2:1 ratio
Max Delay 12.8 ms
Rate Range 0.1 Hz to 10 Hz
Current Draw 39 mA
Power Supply 18 volts DC
*A-weighted
DIRECTIONS
• Run a cable from your guitar to
the Flanger’s INPUT jack and run
another cable from the Flanger’s
OUTPUT jack to your amplifier.
• Start with all controls at
12 o’clock.
• Turn the effect on by depressing
the footswitch.
• Rotate the MANUAL control
clockwise to emphasize higher
frequencies or counterclockwise
to emphasize lower frequencies.
• Rotate the WIDTH control
clockwise to increase the
intensity of the time delay as
set by the SPEED control or
counterclockwise to decrease it.
• Rotate the SPEED knob
clockwise for a faster phase
effect or counterclockwise
for a slower phase effect.
• Rotate the REGEN. control
clockwise to increase the
overall intensity of the effect or
counterclockwise to decrease it.
