POWER
The Cry Baby ® Classic Wah Wah is
powered by one 9-volt battery (accessed
via the bottom of the pedal), an AC
adapter such as the Dunlop ECB003/
ECB003E, or a DC Brick
™ power supply.
SETUP INSTRUCTIONS
• Run an instrument cable from your guitar
to the GCB95F’s INSTRUMENT jack and
run another instrument cable from the
GCB95F’s AMPLIFIER jack to your amp.
• To turn the pedal on/off, push the toe of
the pedal down until you feel a “click.”
• By rocking your foot back and forth
on the pedal, you can change the
effect that the Classic Cry Baby Wah
Wah has on the tone of your instrument
instantaneously.
SPECIFICATIONS
Impedance
Input 1 MΩ
Output 1 kΩ
Noise Floor * -102 dBV
Bypass Hardwire
Current Draw 2.5 mA
Power Supply 9 volts DC
*A-weighted

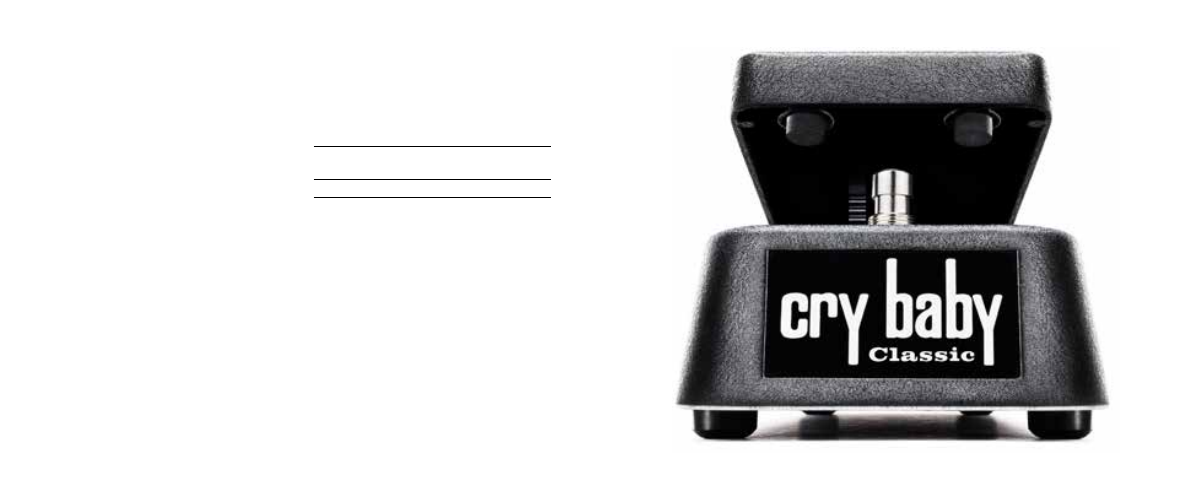

GCB95F CRy BABy
®
CLASSIC WAH WAH
