SF01 OCTAVE FUZZ
DIRECTIONS
• Run a cable from your guitar to
the Slash Octave Fuzz’s Input
jack and run another cable from
the Slash Octave Fuzz’s Output
jack to your amplifier.
• Turn the effect on by depressing
the ON footswitch.
• Turn the Volume control clock-
wise to increase the amount of
the direct signal (Sub into Fuzz
disengaged)/main fuzz effect (Sub
into Fuzz engaged) or counter-
clockwise to decrease it.
• Turn the Sub Octave control
clockwise to increase the amount
of the Sub Octave signal or
counter-clockwise to decrease it.
• Push the Sub into Fuzz switch to
activate the main fuzz effect. You
can now use the Volume knob to
adjust its output. Turn the Tone
knob clockwise for a brighter fuzz
tone and counter-clockwise for a
warmer, thicker fuzz tone.
• Depress the UP footswitch to
activate the octave up fuzz effect.
Turn the Octave Up control
clockwise to increase the amount
of the Octave Up fuzz signal or
counter-clockwise to decrease it.
• To access internal controls,
unscrew bottom plate. Gain
control affects intensity of Octave
Up fuzz and Tone shapes EQ of
Octave Up fuzz.
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
7

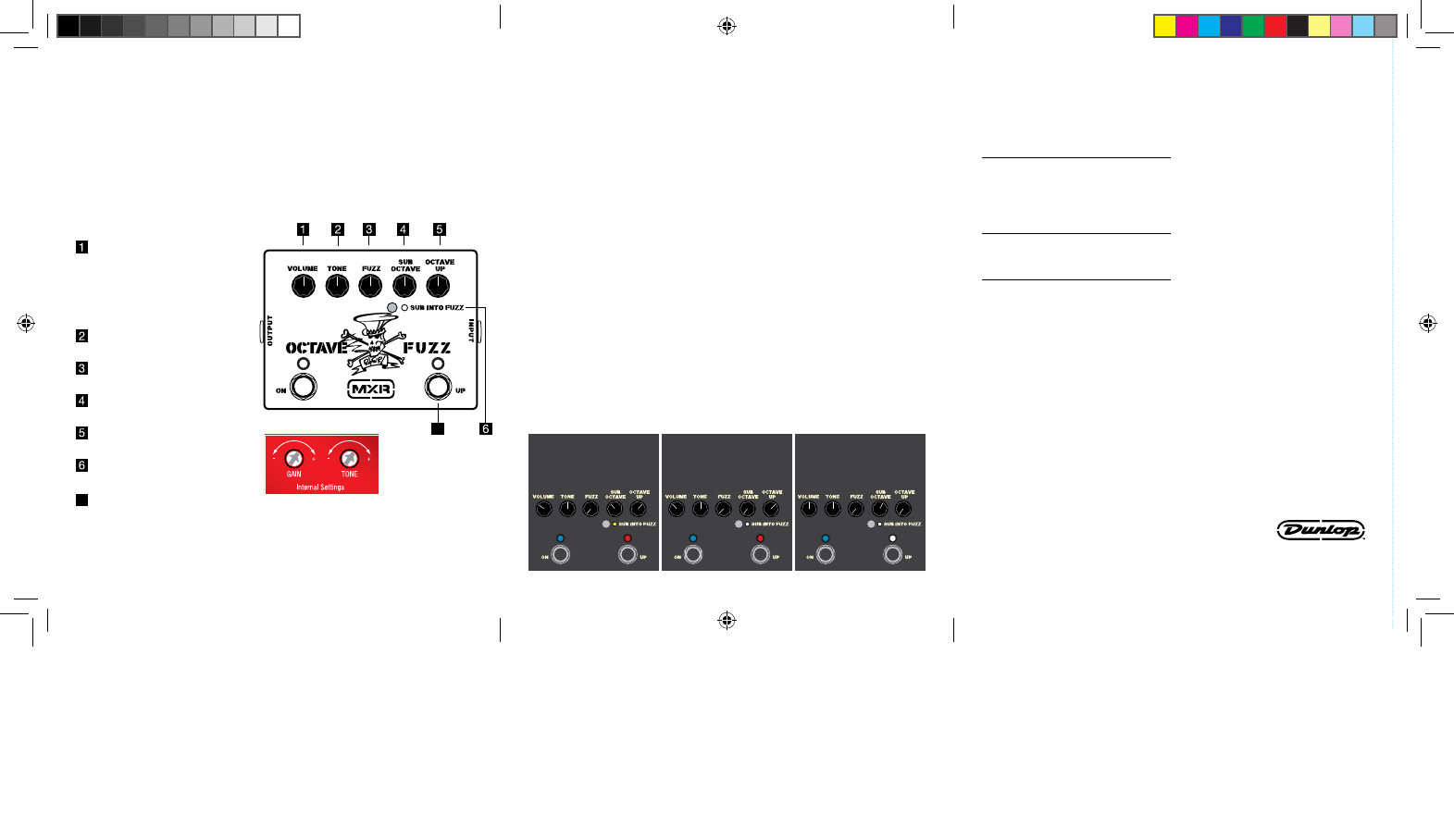

CONTROLS
VOLUME knob controls
volume of dry signal when
Sub into Fuzz switch is
disengaged; controls volume
of main fuzz when Sub into
Fuzz switch is engaged
TONE knob shapes overall
EQ of main fuzz
FUZZ knob controls intensity
of main fuzz
SUB OCTAVE knob controls
volume of Sub Octave voice
OCTAVE UP knob controls
volume of Octave Up fuzz
SUB into FUZZ switch
activates main fuzz
UP footswitch activates
Octave Up fuzz
7
SAMPLE SETTINGS
SLASH 1
BOTh OCTAVES
SLASH 3
SUB OCTAVE
SLASH 2
OCTAVE UP
INTERNAL SETTINGS
GAIN trim pot controls intensity
of Octave Up fuzz
TONE trim pot shapes overall EQ
of Octave Up fuzz
DESCRIPTION
• Three different effects to thicken up your tone
• Sub octave growl
• Thick ‘70s shag fuzz
• Psychedelic Octave Up fuzz SPECIFICATIONS
Input Impedance
47 kΩ
Output Impedance 100 Ω
Signal to Noise* >85 dB
Dry Max Gain +1.6 dB
Fuzz Gain Range 40 dB
Octave Up Gain Range 20 dB
Sub Octave Corner Freq. 149 hz
Bypass
True hardwire
Current Draw 17 mA
Power Requirement 9 volts DC
*All controls at mid postion, A-weighted, Vref = 1Vrms
POWER
The SF01 Octave Fuzz can be
powered by one 9 volt battery
(accessed by opening the
compartment in the bottom plate
of the pedal), a Dunlop ECB003
AC adapter (ECB003E in Europe)
or a Dunlop DCB10 DC Brick
power supply.
