Dunlop Manufacturing M193 - Manual (Page 2)

SAMPLE SETTINGS
M193 GT-OD
DESCRIPTION
• Traditionally warm and
transparent overdrive
• Single tone control makes
tone-shaping simple
• Adds sustain and gain without
coloring your guitar or amp’s tone

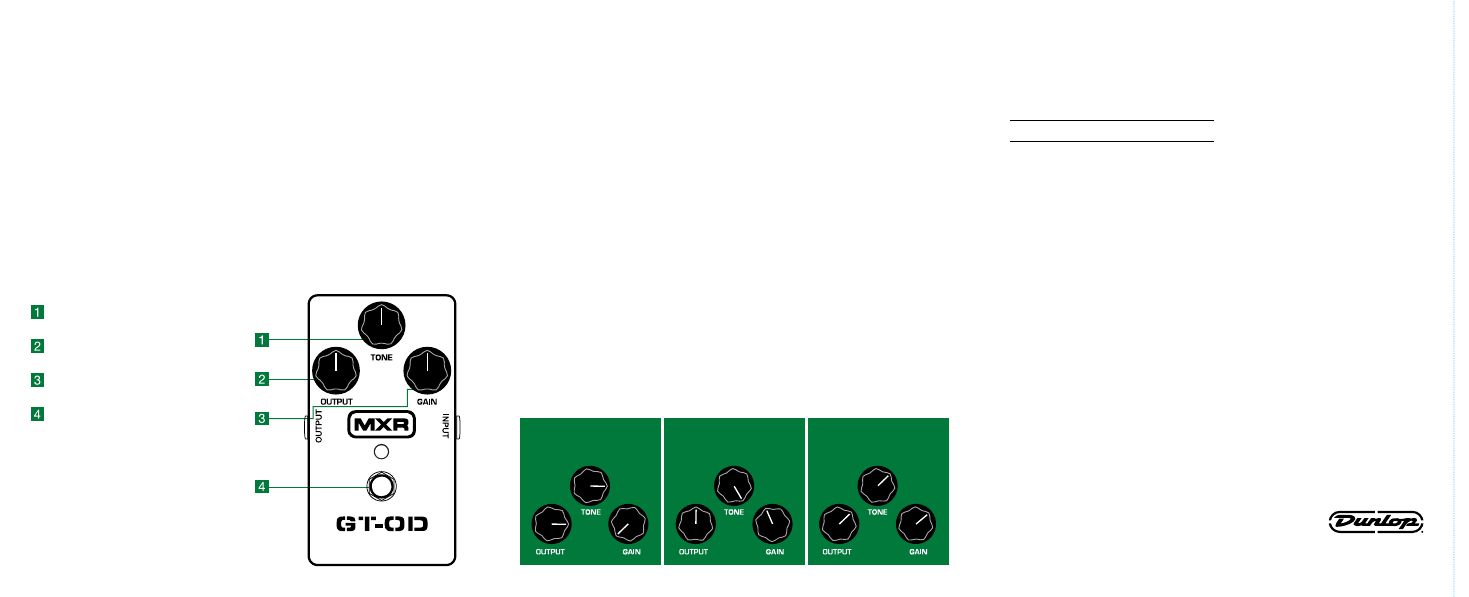

CONTROLS
TONE knob shapes color of
distorted signal
OUTPUT knob controls overall
volume of effect
GAIN knob controls amount
of overdrive
FOOTSWITCH toggles effect on/
bypass (indicated by red LED)
DIRECTIONS
• Run a cable from your guitar to
the GT-OD’s INPUT jack and run
another cable from the GT-OD’s
OUTPUT jack to your amplifier.
• Start with the OUTPUT, TONE
and GAIN controls at 12 o’clock.
• Turn the effect on by depressing
the footswitch.
SPECIFICATIONS
Input Impedance
1 MΩ
Output Impedance <7.5 kΩ
Noise Floor* >88 dB
Current Draw 2.2 mA
Bypass Hardwire
Power Supply 9 volts DC
* A-weighted, all controls at mid position
• Rotate the OUTPUT knob
clockwise to increase the
overall volume of the effect or
counterclockwise to decrease it.
• Rotate the TONE knob clockwise
for a brighter sound and
counterclockwise for a
darker sound.
• Rotate the GAIN knob clockwise
to increase the amount of
distortion and counterclockwise
to decrease it.
LIGHT BOOST SINGING LEAD MEDIUM CRUNCH
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
POWER
The MXR GT-OD is powered by one
9-volt battery (remove bottom plate
to install), a 9-volt AC adapter such
as the Dunlop ECB003/ECB003E,
or a DC Brick
™ power supply.
