SPECIFICATIONS
INPUT IMPEDANCE: .................................................................. 500K Ohm
NOMINAL INPUT: ......................................................................... -20dBV
OUTPUT IMPEDANCE: .............................................................. 10K Ohm
OUTPUT LEVEL:............................................................................ -20dBV
SIGNAL TO NOISE ALL CONTROLS @ MID POSITION :.... >95dB ‘A’ weighted
(Vref 1V RMS)
POWER DRAW:............................................................................ <2.2mA
1
CLASSIC 80’s ROCK
Speed knob to 9:00
PSEUDO LESLIE
Set Speed knob to 12:00
POWER
The MXR CUSTOM SHOP ‘74 VINTAGE PHASE 90 can be powered by one 9-volt
battery accessed through the bottom of the pedal.
DIRECTIONS
To begin using your MXR CUSTOM SHOP ‘74 VINTAGE PHASE 90:
A) Run a cable from your guitar to the Vintage Phase 90’s Input jack and run another
cable from the Vintage Phase 90’s Output jack to your amplifier. (For starters,
select the clean channel of your amp).
B) Set the Vintage Phase 90’s Speed control to 12 o’clock.
C) Turn the effect on by depressing the footswitch.
D) Rotating the Speed knob in a clockwise motion will result in a faster phase effect,
and a counterclockwise motion creates slower effects.
E) Select your amp’s distortion channel and repeat steps B through D to hear how the
effect reacts differently with a dirty tone.
SAMPLE SETTINGS
Check out the sample settings below to hear some of the many great sounds the
Vintage Phase 90 is capable of.
2
2
1

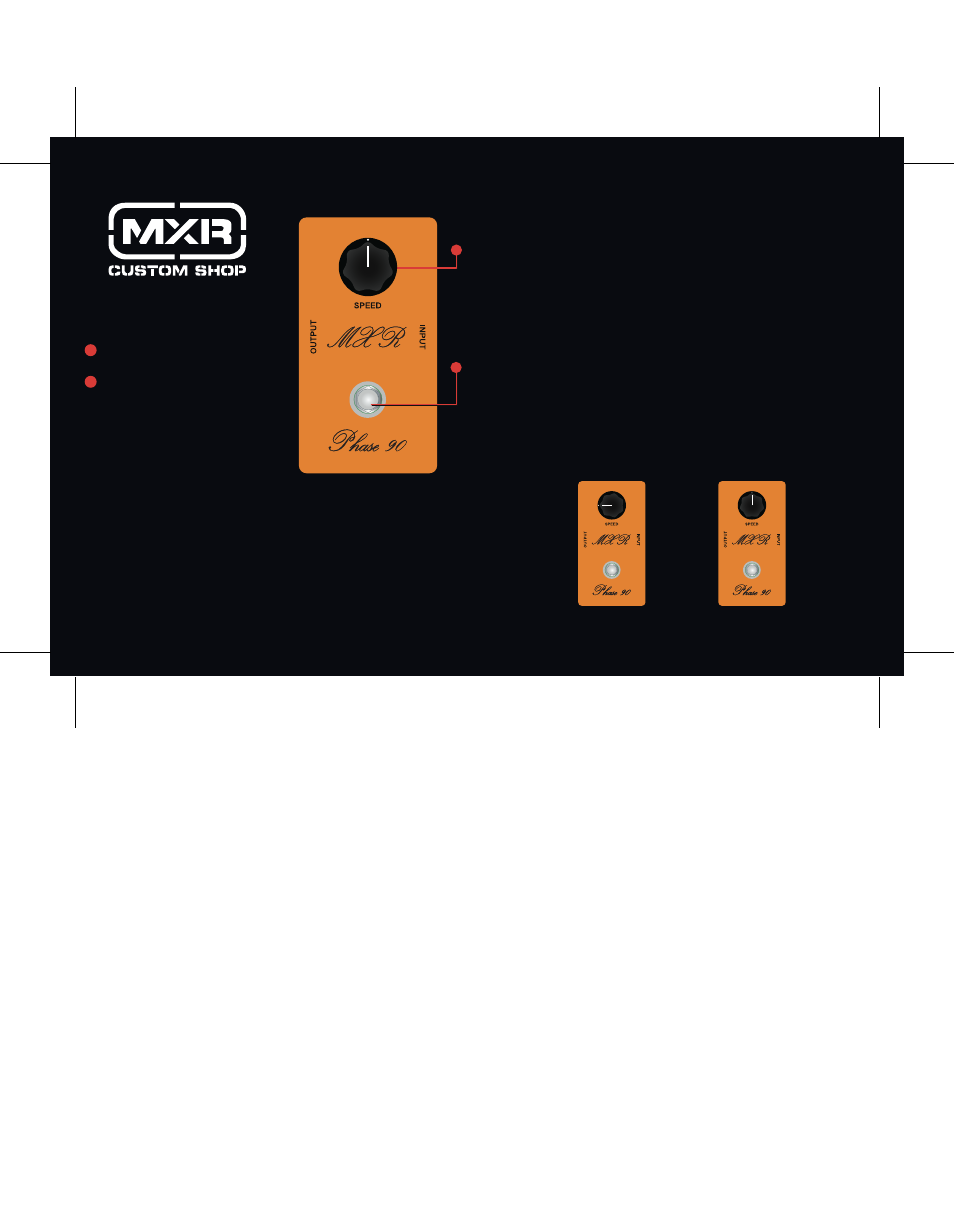

SPEED knob regulates overall effect
rate (inactive in bypass mode)
FOOTSWITCH toggles effect
on/bypass
CONTROLS
