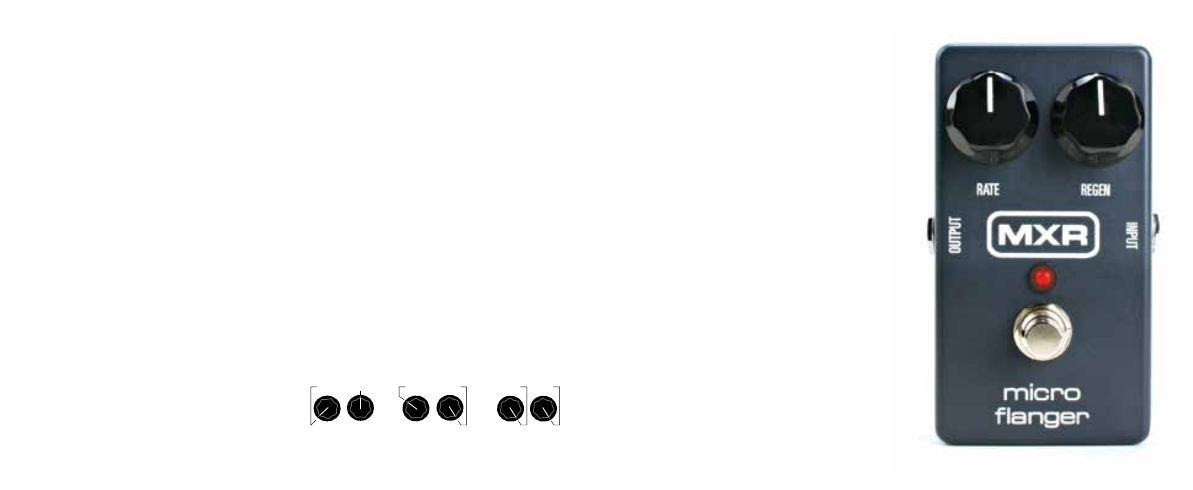

M152 MICRO FLANGER
DESCRIPTION
• Dial in warm and thick flanging for
massive sonic “swooshes”
• Two control knobs to adjust speed
and regeneration for simple operation
• All analog circuitry with bucket brigade
technology for warm analog tone
• True bypass
POWER
The MXR Micro Flanger can be powered
by one 9-volt battery (accessed by re-
moving the pedal bottom plate), a 9-volt
AC adapter such as the Dunlop ECB003/
ECB003E, or a DC Brick
™ power supply. .
CONTROLS
• RATE knob adjusts the speed
of the effect.
• REGENERATION controls the
amount of feedback, affecting
the effects intensity.
• FOOTSWITCH toggles effect on/
bypass (red LED indicates on)
SPECIFICATIONS
Input Impedance
1 MΩ
Output Impedance 1 kΩ
Max Input Level -2 dBV, 500 Hz
Max Output Level +8 dBV
Noise Floor* -88 dBV
Rate Control 0.2 Hz to 5.5 Hz
Delay Range 3.9 µs to 4 ms
Bypass True Hardwire
Current Draw 7 mA
Power Supply 9 volts DC
*A-weighted
DIRECTIONS
• Run a cable from your guitar to the
Micro Flanger’s INPUT jack and run
another cable from the Micro Flanger’s
OUTPUT jack to your amplifier.
• Turn the Micro Flanger’s effect on by
depressing the footswitch; the red LED
will illuminate, indicating that the effect
is activated.
• Turn the RATE knob clockwise for a
faster flanging effect, counterclockwise
for a slower effect. Rotate the
REGENERATION knob clockwise for
more intensity, and clockwise for a
more subtle effect.
SAMPLE SETTINGS
“BLACK HOLE SOUND”
90’s GRUNGE
“BARLEY-CUDA”
70’s ROCK
“FAST LANE LIFE”
70’s POP/ROCK
7:00 12:00 5:30 5:30 5:30
RATE REGEN
10:00
RATE REGEN RATE REGEN
