SAMPLE SETTINGS
M107 PHASE 100
DESCRIPTION
• Big brother of the Phase 90 with
a broader range of sounds
• Four-position rotary switch
selects four preset waveforms
• Spacey, psychedelic ambience
for guitar solos or chords
DIRECTIONS
• Run a cable from your guitar
to the Phase 100’s INPUT jack
and run another cable from the
Phase 100’s OUTPUT jack to
your amplifier.
• Start with all controls
at 12 o’clock.
• Turn the effect on by depressing
the footswitch.
• Rotate the SPEED knob
clockwise for a faster phase
effect or counterclockwise
for a slower phase effect
.
• Use the INTENSITY knob to
select your desired waveform.
SLOW AND DEEP MEDIUM SUBTLE SPINNING SPEAKER

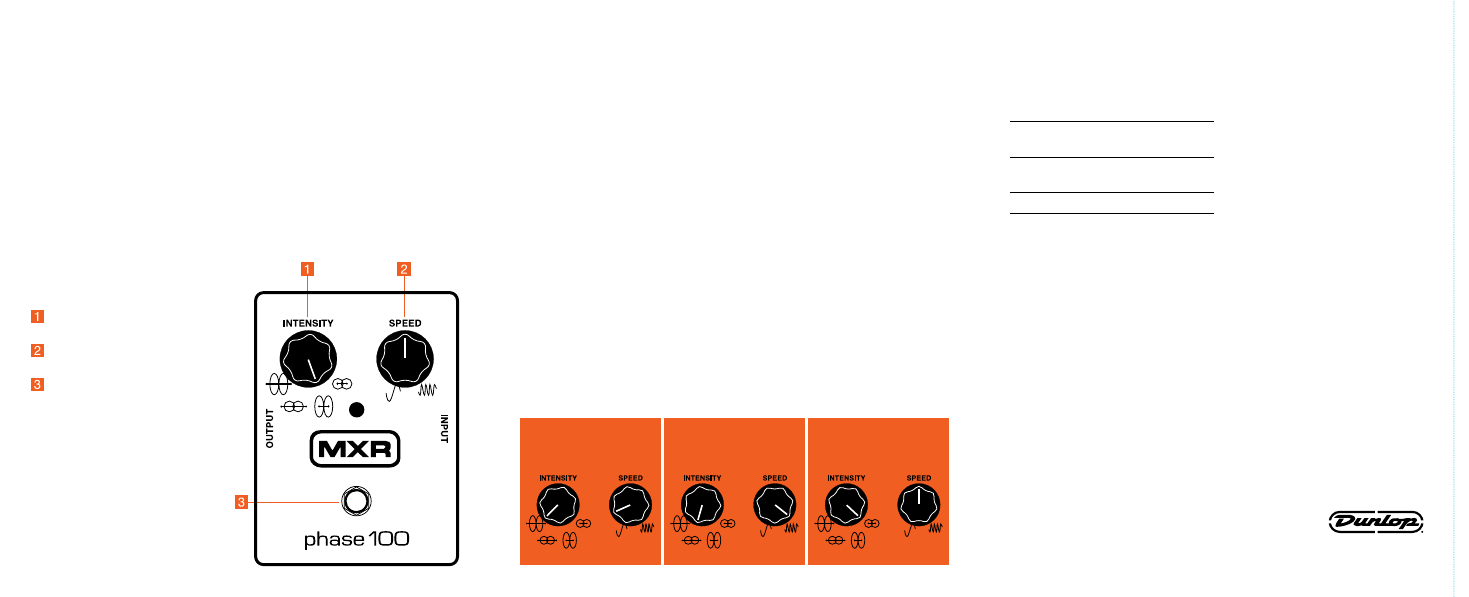

CONTROLS
INTENSITY knob selects one of
four preset phase waveforms
SPEED knob controls speed
of phase effect
FOOTSWITCH toggles
effect on/bypass (red LED
indicates on)
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
POWER
The MXR Phase 100 is powered
by one 9-volt battery (remove
bottom plate to install), a 9-volt
AC adapter such as the Dunlop
ECB003/ECB003E, or a DC Brick
™
power supply .
SPECIFICATIONS
Input Impedance
500 kΩ
Output Impedance 3 kΩ
Maximum Intput Level +5 dB
Maximum Output Level +8 dB
Noise Floor* 95 dBV
Phase Shift Range 180 Degrees
Bypass Hardwire
Current Draw 6 mA
Power Supply 9 volts DC
*A-weighted
