105Q CRY BABY
®
BASS WAH WAH
POWER
The 105Q Cry Baby Bass Wah Wah is
powered by one 9-volt battery (accessed
via the bottom of the pedal), an AC adapter
such as the Dunlop ECB003/ ECB003E, or
a DC Brick
™ power supply.
CONTROLS
• VOLUME knob controls amount of gain
added by BOOST switch, up to 20dB
• VARIABLE Q knob adjusts frequency
range of wah wah effect
• BOOST switch increases output
as set by VOLUME knob
• Silent “auto-off” switching puts
pedal into bypass mode when
you take your foot off rocker
SETUP INSTRUCTIONS
• Run an instrument cable from your
guitar to the 105Q’s INSTRUMENT
jack and another instrument cable
from the 105Q’s AMPLIFIER jack
into your amplifier’s input.
• The 105Q is bypassed (off) whenever
your foot is off the pedal. To turn it on,
simply press the toe of the pedal down
with your foot.
• Set both the VOLUME control
and the VARIABLE Q control
fully counterclockwise.
• Rock your foot back and forth on the
pedal to hear the vocal, expressive
tones that the Cry Baby Wah Wah is
famous for.
• Rotate the VARIABLE Q knob
clockwise for a narrower frequency
range to emphasize higher end
harmonics or counterclockwise for a
wider frequency range that emphasizes
lower end harmonics.
• To increase the 105Q’s output, engage
the BOOST switch and rotate the
VOLUME control clockwise to increase
the amount of gain, up to +20dB, or
counterclockwise to decrease it.

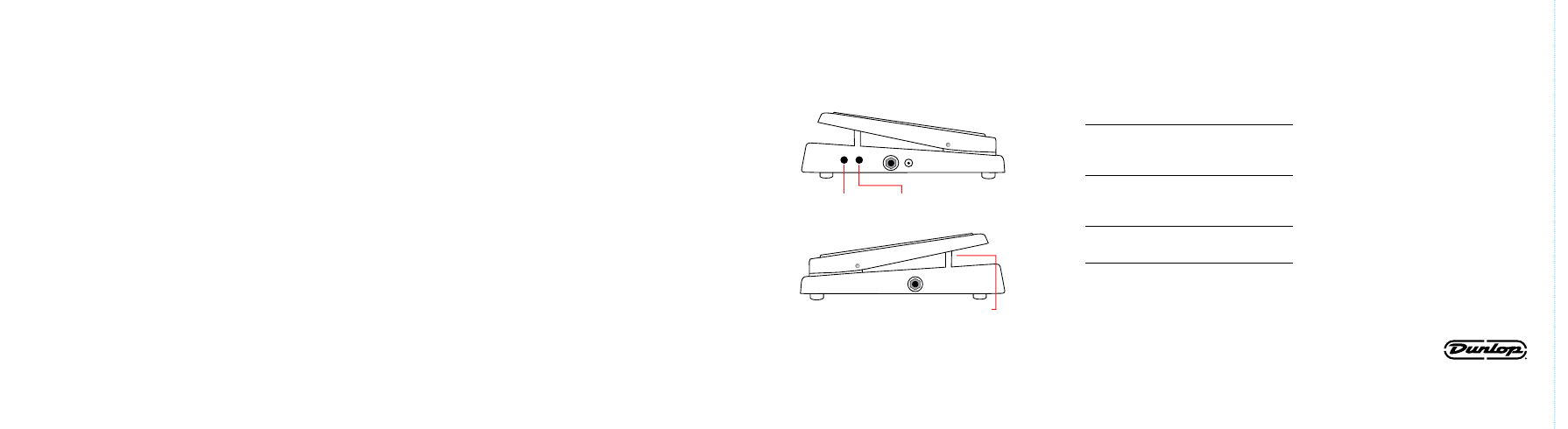

ADJUSTABLE VOLUME control
sets level of preset gain
boost of up to +20dB
Silent “AUTO-OFF” switching
puts the pedal in BYPASS mode
when you lift your foot
VARIABLE Q control lets you
adjust the frequency width
of the effect
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
SPECIFICATIONS
Impedance
Input 1 MΩ
Output 1 kΩ
Filter Center Frequency
Heel Down 180 Hz
Toe Down 1800 Hz
Gain at Center Frequency
Heel Down +25 dB
Toe Down +32 dB
Bypass Buffered
Current Draw 3.5 mA
Power Supply 9 volts DC
