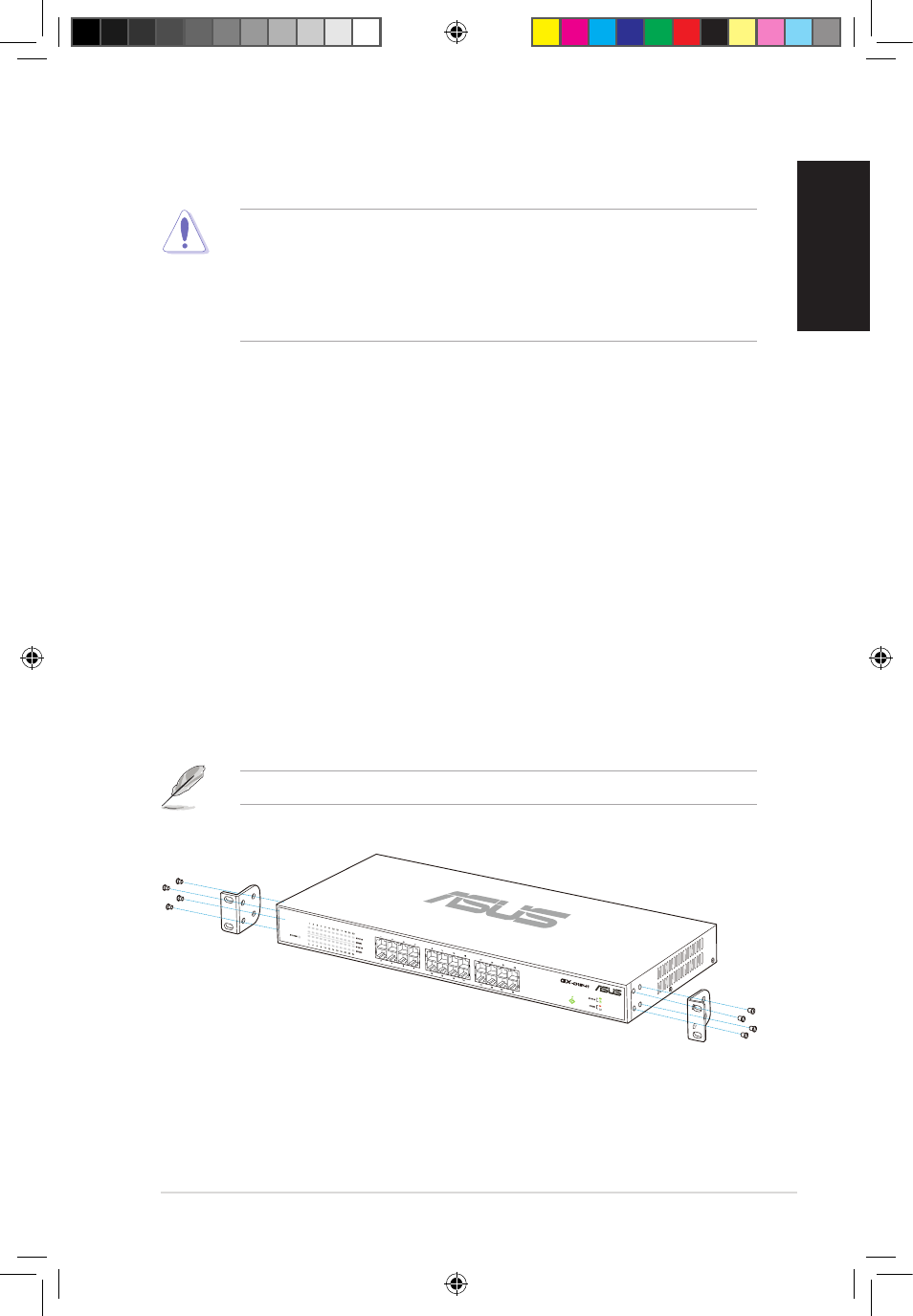

Mounting the switch on a 19-inch rack
Mount the GX-D1241 switch on a rack with the supplied mounting brackets and
screws.
To mount the switch on a rack:
1. Locate three screw holes on both sides of the switch.
2. Align the mounting brackets with the switch screw holes.
3. Secure the mounting brackets with six screws supplied in the mounting kit on
both sides of the switch.
4. Place the switch in a 19-inch rack, then secure both sides with four rack
mount screws.
NOTE: The rack mount screws are not supplied.
Desktop placement
Put the GX-D1241 switch on a flat and stable surface.
Placement options
CAUTION:
• DO NOT place any device on top of the switch.
• Leave enough space around the switch for adequate ventilation. Ensure
that the switch is placed in a location that meets the environmental
specifications. See page 4 for details.
1000 Mbps
10/100 Mbps
Link
Transmit/
Receive
