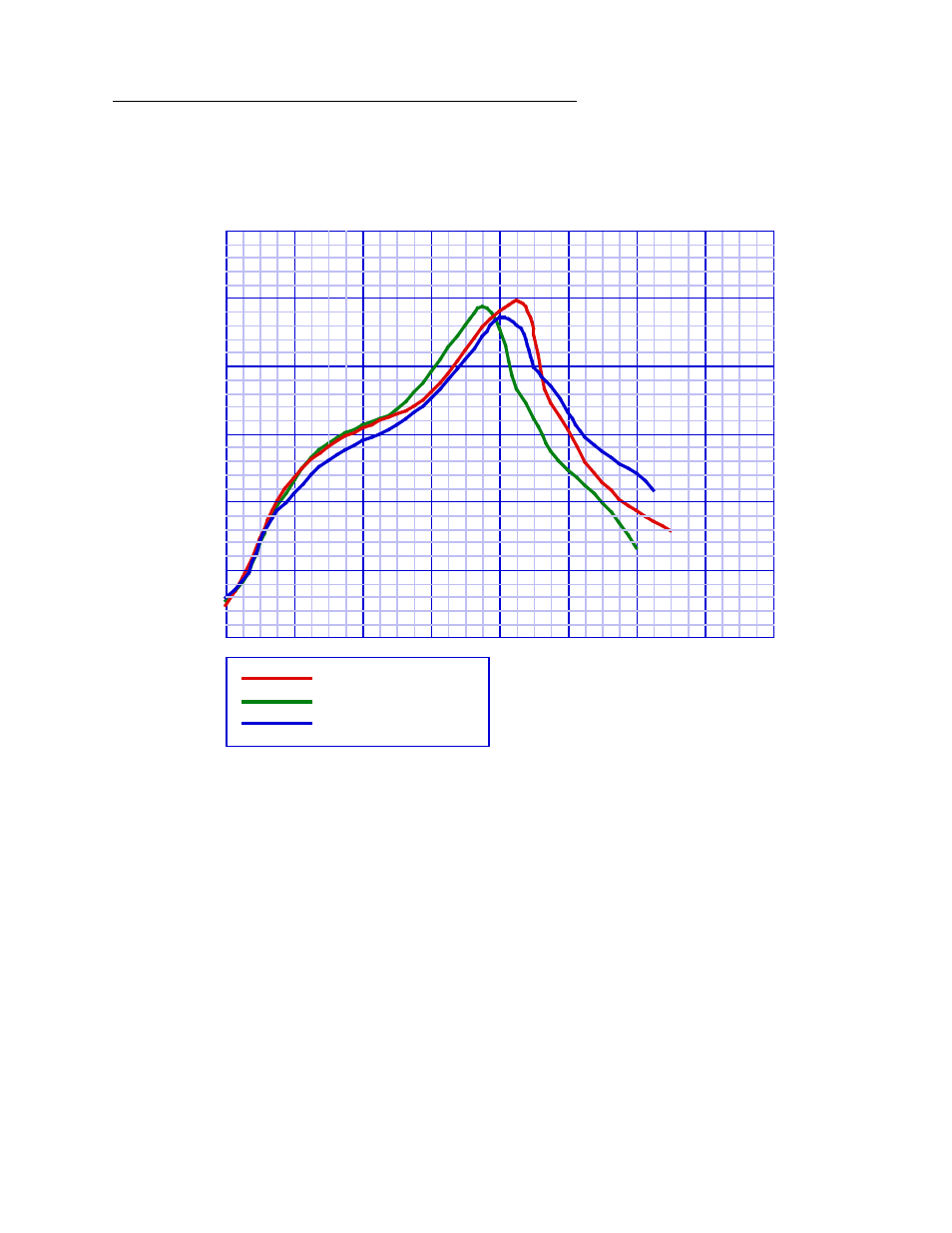

Summary of Pb-Free SMT Soldering Profiles
8Min 7Min 6Min 5Min 4Min 3Min
0°C
100°C
150°C
50°C
0Min 1Min
200°C
250°C
SOPSocket, Pb Free -Target
SOPSocket, Pb Free -High
SOPSocket, Pb Free - Low
2Min
In each case, a Ramp-Soak-Spike (RSS) profile was used.
