Socket Connector Jumper Selection Guide
Style No.: 39001
Great Jumper
FEATURES and BENEFITS:
SPECIFICATIONS:
Electrical:
Current rating:
Dielectrical withstanding voltage:
1 amp (D.C.)
1000 volts (sea level)
Physical:
Contact material:
Plating:
CuNi18Zn20
see Surface-Finish-Materials Table
Environmental:
Material:
Operating temperature range:
U.L. rated 94 V-O
-40°C to +105°C
Socket Without Tab Key
• Eliminates usual cable/connector assembling.
• Ultimate strain relief inherent in design.
• Inseparable - nothing to come apart.
• No pull tabs required; cable molded into connector.
• Eliminates usually exposed conductor ends.
• Standard .050 in. (1,27 mm) pitch round-wire flat ribbon cable.
• Line-by-line probe access holes are standard.
• Industry standard interface dimensions - directly interchangeable replacements
for other standard IDC socket cable assemmblies - mate with male headers
and DRP’s with .025 in. (0,64 mm) square or round posts on .100 x .100 in.
(2,54 mm) spacing.
• Three industry-standard polarity keying systems.
• Slotted ends clear adjacent posts when installed in continuous-row headers.
• Typical applications include: jumpering within a PC board; interconnecting
between PC boards, backplanes and motherboards; interfacing input / output
signals to the system as well as to test and checkout equipment.
• 100% factory testing of each jumper shipped.

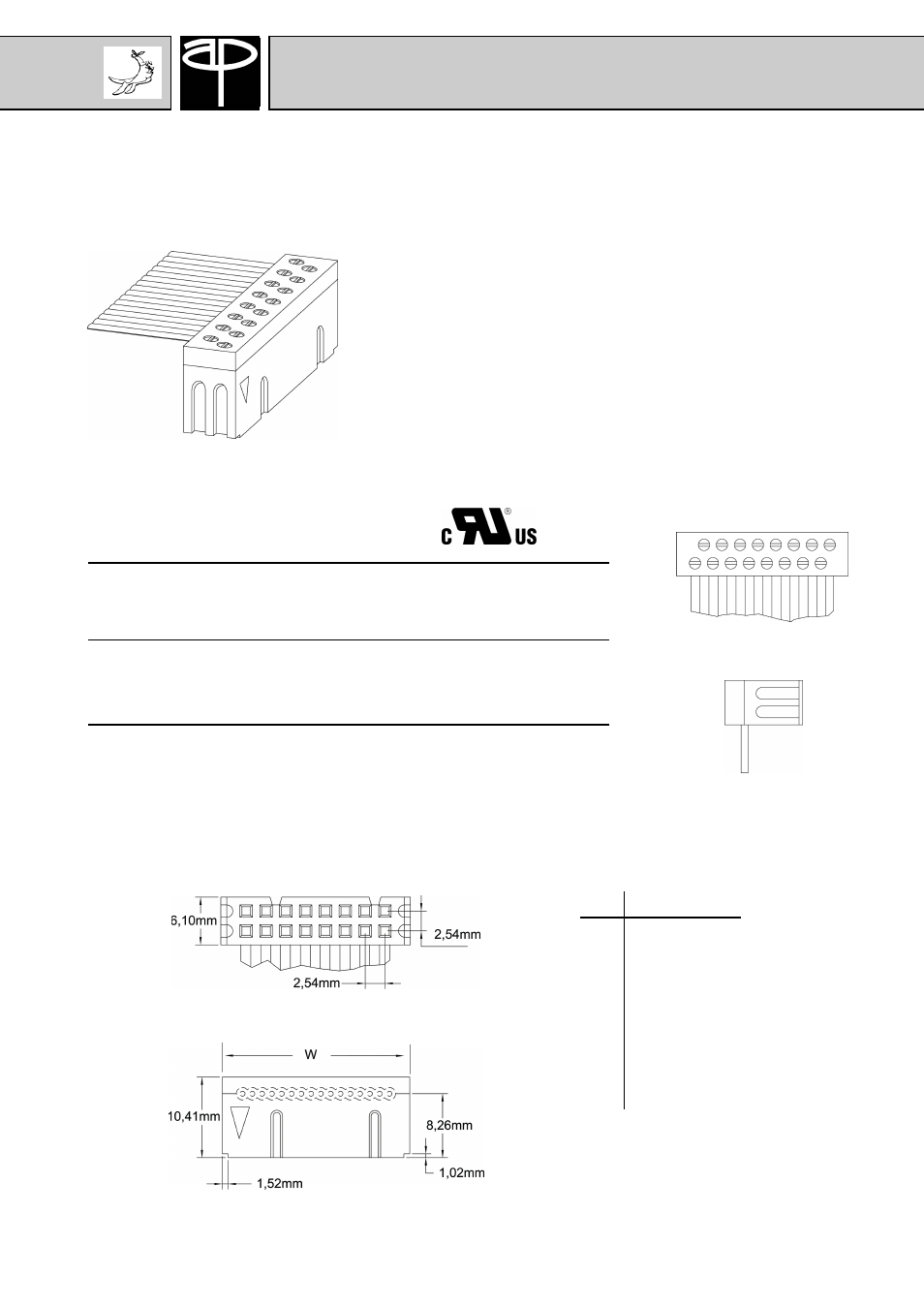

DIMENSIONS:
in inch (mm)
08
10
14
16
20
26
34
40
50
60 0.560 (14,22)
0.660 (16,76)
0.860 (21,84)
0.960 (24,38)
1.160 (29,46)
1.460 (37,08)
1.860 (47,24)
2.160 (54,86)
2.660 (67,56)
3.160 (80,26)
W Size
UL File No. E189343
