插槽卸除存储控制器。请参阅图 1-1, 参阅图 1-1 – Dell PowerEdge RAID Controller H800 User Manual
Page 8

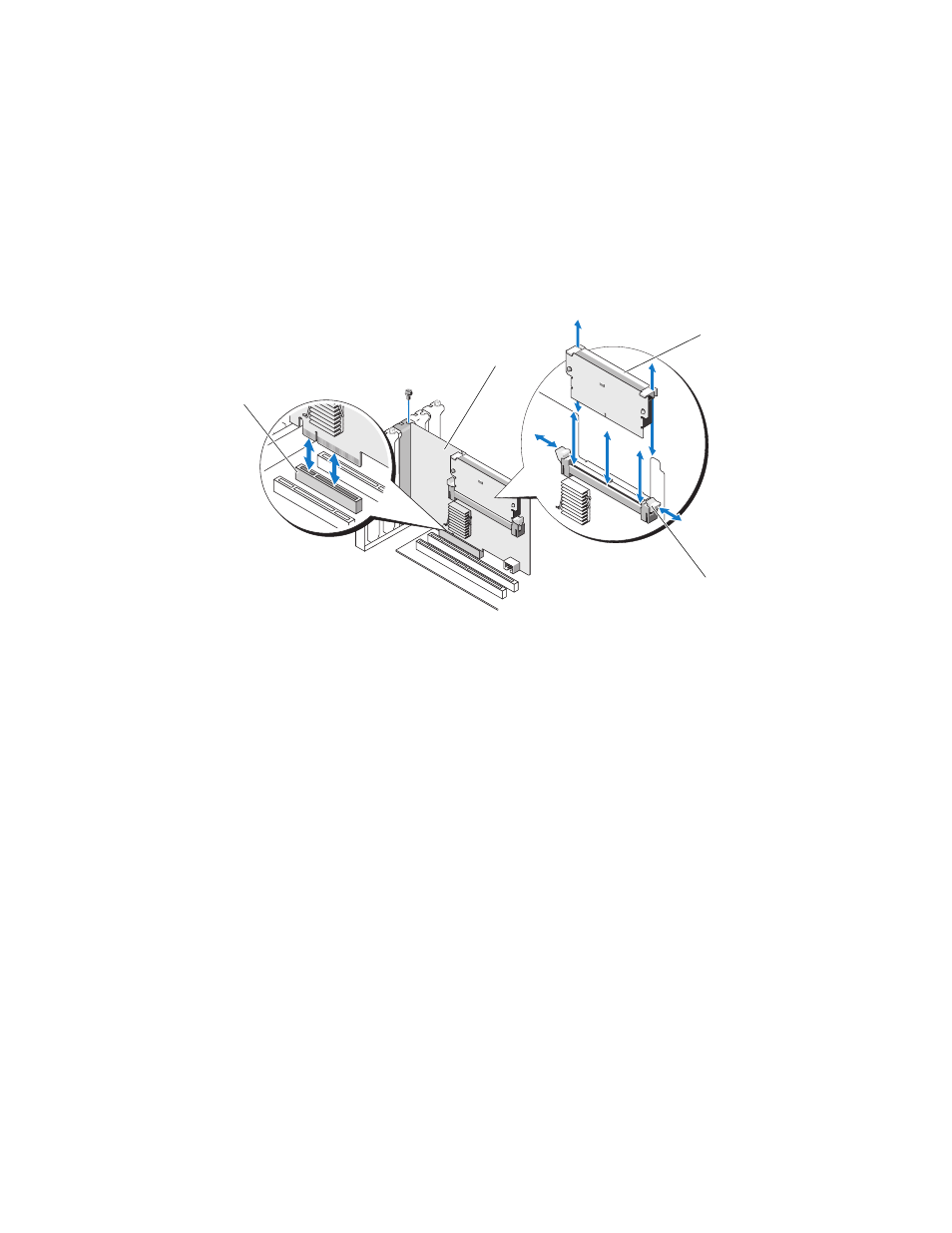

图 1-1. 卸除和安装 PERC 适配器
装回在 PERC 5/i、 PERC 6/i、 PERC H700 或 PERC H800 上的 BBU
1
请确保在 PERC 适配器上没有保留的高速缓存。请参阅第 4 页上的 “管理
2
执行系统和连接的外围设备的控制性关闭。
3
断开系统与电源插座的连接并卸下系统护盖。
4
从系统的塑料安装护盖卸除电池备份单元 (BBU) 并断开电池电缆。
5
通过将电池电缆的一端插入到控制器上的连接器重新将 BBU
连接至控制器。
1 PCI-E 插槽
2 PERC 适配器
3 DIMM
4 卡舌 （2 个）
2
3
4
1
