Q87M vPro
22 23
English

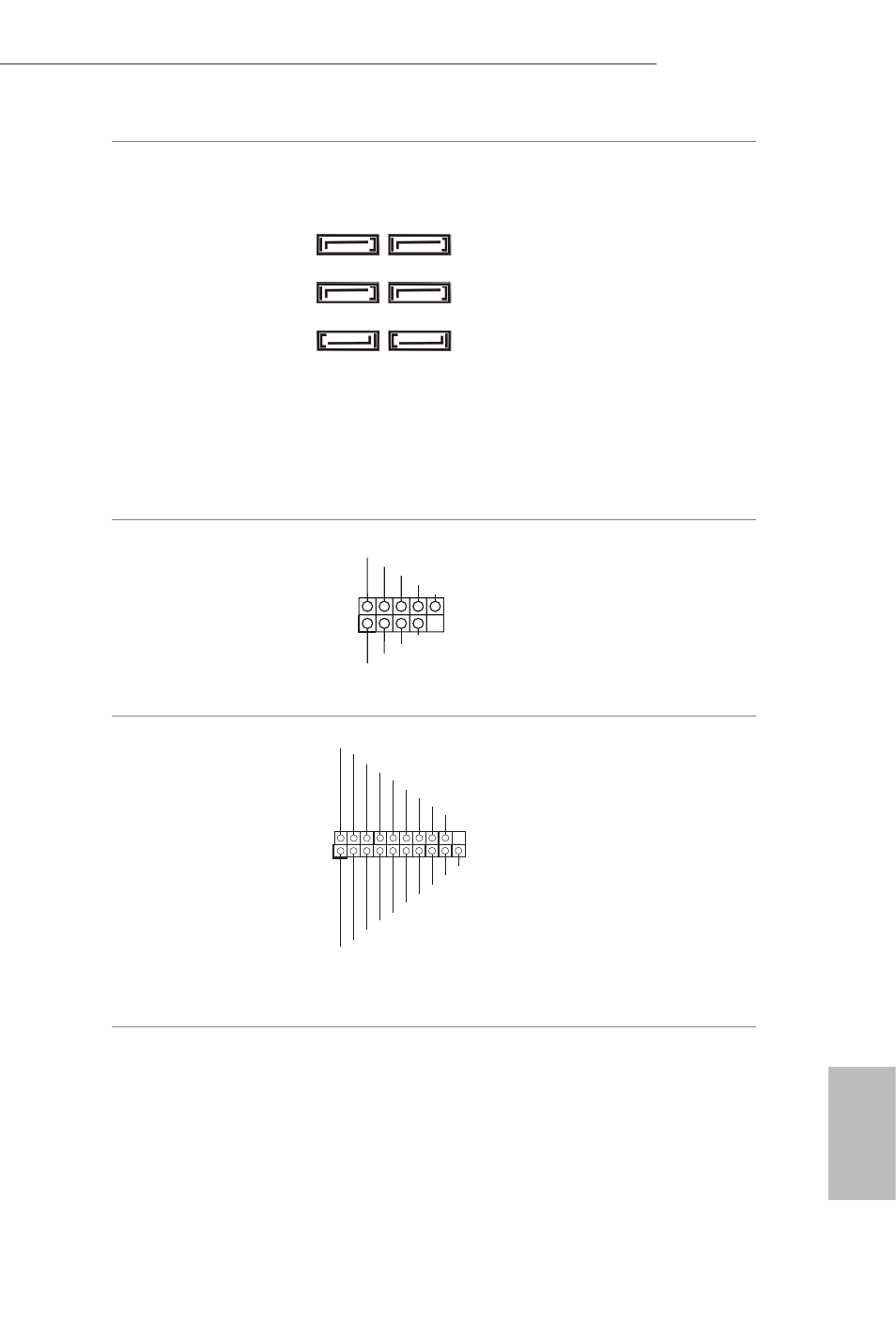

Serial ATA3 Connectors
(SATA_0:
see p.1, No. 15)
(SATA_1:
see p.1, No. 18)
(SATA_2:
see p.1, No. 14)
(SATA_3:
see p.1, No. 19)
(SATA_4:
see p.1, No. 11)
(SATA_5:
see p.1, No. 20) These six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB_4_5)
(see p.1, No. 23)
(9-pin USB_6_7)
(see p.1, No. 24) Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Headers
(19-pin USB3_4_5)
(see p.1, No. 21) Besides four USB 3.0 ports
on the I/O panel, there
are one header on this
motherboard. Each USB
3.0 header can support
two ports.
SATA_5
SATA_3
SATA_1
SATA_4
SATA_2
SATA_0
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-
