2
ASRock 970DE3/U3S3 Motherboard
English

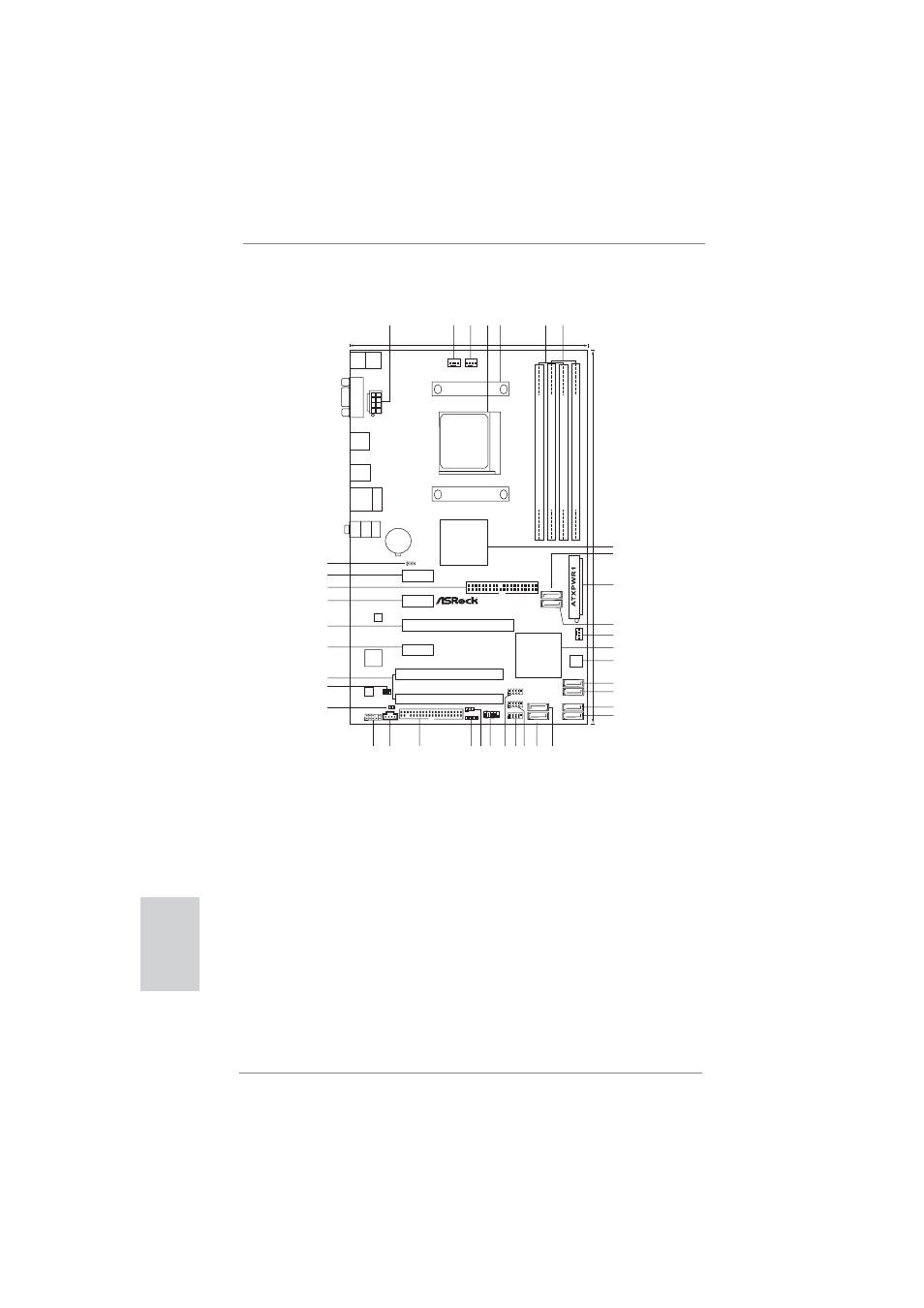

Motherboard Layout
1
ATX 12V Power Connector (ATX12V1)
19
SATA2 Connector (SATA2_2 (PORT 1), Black)
2
Power Fan Connector (PWR_FAN1)
20
SATA2 Connector (SATA2_1 (PORT 1), Black)
3
CPU Fan Connector (CPU_FAN1)
21
USB 2.0 Header (USB6_7, Black)
4
AM3+ CPU Socket
22
USB 2.0 Header (USB4_5, Black)
5
CPU Heatsink Retention Module
23
USB 2.0 Header (USB8_9, Black)
6
2 x 240-pin DDR3 DIMM Slots
24
System Panel Header (PANEL1, Black)
(Dual Channel: DDR3_A1, DDR3_B1; Black)
25
Power LED Header (PLED1)
7
2 x 240-pin DDR3 DIMM Slots
26
Chassis Speaker Header (SPEAKER 1, Black)
(Dual Channel: DDR3_A2, DDR3_B2; Black)
27
Floppy Connector (FLOPPY1)
8
Northbridge Controller
28
Internal Audio Connector: CD1 (Black)
9
SATA3 Connector (SATA3_2 (PORT 7), Gray)
29
Front Panel Audio Header (HD_AUDIO1, Black)
10
ATX Power Connector (ATXPWR1)
30
HDMI_SPDIF Header (HDMI_SPDIF1, Black)
11
SATA3 Connector (SATA3_1 (PORT 6), Gray) 31
Infrared Module Header (IR1)
12
Chassis Fan Connector (CHA_FAN1)
32
PCI Slots (PCI1-2)
13
Southbridge Controller
33
PCI Express 2.0 x1 Slot (PCIE4; Black)
14
SPI Flash Memory (8Mb)
34
PCI Express 2.0 x16 Slot (PCIE3; Black)
15
SATA2 Connector (SATA2_6 (PORT 5), Black) 35
PCI Express 2.0 x1 Slot (PCIE2; Black)
16
SATA2 Connector (SATA2_5 (PORT 4), Black) 36
IDE1 Connector (IDE1, Black)
17
SATA2 Connector (SATA2_4 (PORT 3), Black) 37
PCI Express 2.0 x1 Slot (PCIE1; Black)
18
SATA2 Connector (SATA2_3 (PORT 2), Black) 38
Clear CMOS Jumper (CLRCMOS1)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
IDE1
AMD
SB710
Chipset
ATX12V1
8Mb
BIOS
CMOS
BATTERY
CLRCMOS1
1
LAN
PHY
AUDIO
CODEC
Super
I/O
IR1
1
CD1
HD_AUDIO1
1
PCIE1
FLOPPY1
HDLED
RESET
PLED PWRBTN
1
PANEL 1
SPEAKER1
1
SATAII_2(PORT 1)
19.1cm (7.5-in)
30.5cm
(12.0-in)
AMD
770
Chipset
PCI1
PCI2
970DE3/U3S3
SATAII_4(PORT 3)
SATAII_3(PORT 2)
Top:
LINE
IN
Center:
FRONT
Bottom:
MIC
IN
PS2
Mouse
PS2
Keyboard
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
USB 3.0
T: USB0
B: USB1
SA
T
A
3
6
Gb/s
USB 3.0
ErP/EuP Ready
RoHS
USB8_9
1
SATAII_1(PORT 0)
SATAII_6(PORT 5)
SATAII_5(PORT 4)
1
PLED1
1
HDMI_SPDIF1
USB6_7
1
USB4_5
1
USB 2.0
T: USB2
B: USB3
COM1
CHA_FAN1
Designed
in
T
aipei
Support
8
-Core
C
PU
36
37
38
SOCKET
AM3b
PCIE2
PCIE4
PCIE3
FSB800
DDR3_A1
(64
b
it,
2
40-pin
module)
DDR3_A2
(64
b
it,
2
40-pin
m
odule)
FSB800
DDR3_B1
(64
b
it,
2
40-pin
module)
DDR3_B2
(64
bit,
240-pin
module)
SATA3_2(PORT 7)
SATA3_1(PORT 6)
DDR3
1866
AM3+
140W CPU
CPU_FAN1
PWR_FAN1
X
Fast RAM
X
Fast USB
X
Fast LAN
