Acu-Rite Companies Inc.

ENC 250

MULTI-SECTION

Components

Each unit should consist of the following boxes:

Scale Section Boxes:
• Right End Section
• Left End Section
• Center Sections (One or more boxes depending on length)

Common Components Box:
• Scale Measuring Tape (Coiled On Spool)
• Lipseals (Coiled On Spool)
• Reading Head
• Mounting Hardware with RTV and Silicone Grease
• Reference Manual

* NOTE: Both English and metric mounting hardware have
been supplied. The mounting instructions reference to both.
Tools required depend on the fasteners being used.

2

Tools

You will need the following tools to complete the
installation:

• 0.001” Dial Indicator with Magnetic Base
• English Hex Wrench Set
• Metric Hex Wrench Set
• Dial Calipers
• Feeler Gage
• Hand Drill
• Hand Tap
• Taps (English): 1/4-20 UNC & #8-32 UNC
• Taps (Metric): M6, M4
• Drills (English): #7 (.201”), #29 (.136”), N (.302”)
• Drills (Metric): 5mm, 3.3mm, 7.7mm
• Reamer (English): .312”
• Reamer (Metric): 8mm
• Transfer Punch Set
• Hammer
• Center Punch
• Phillips Screw Driver
• Flat-tip Screw Driver
• Torque Wrench

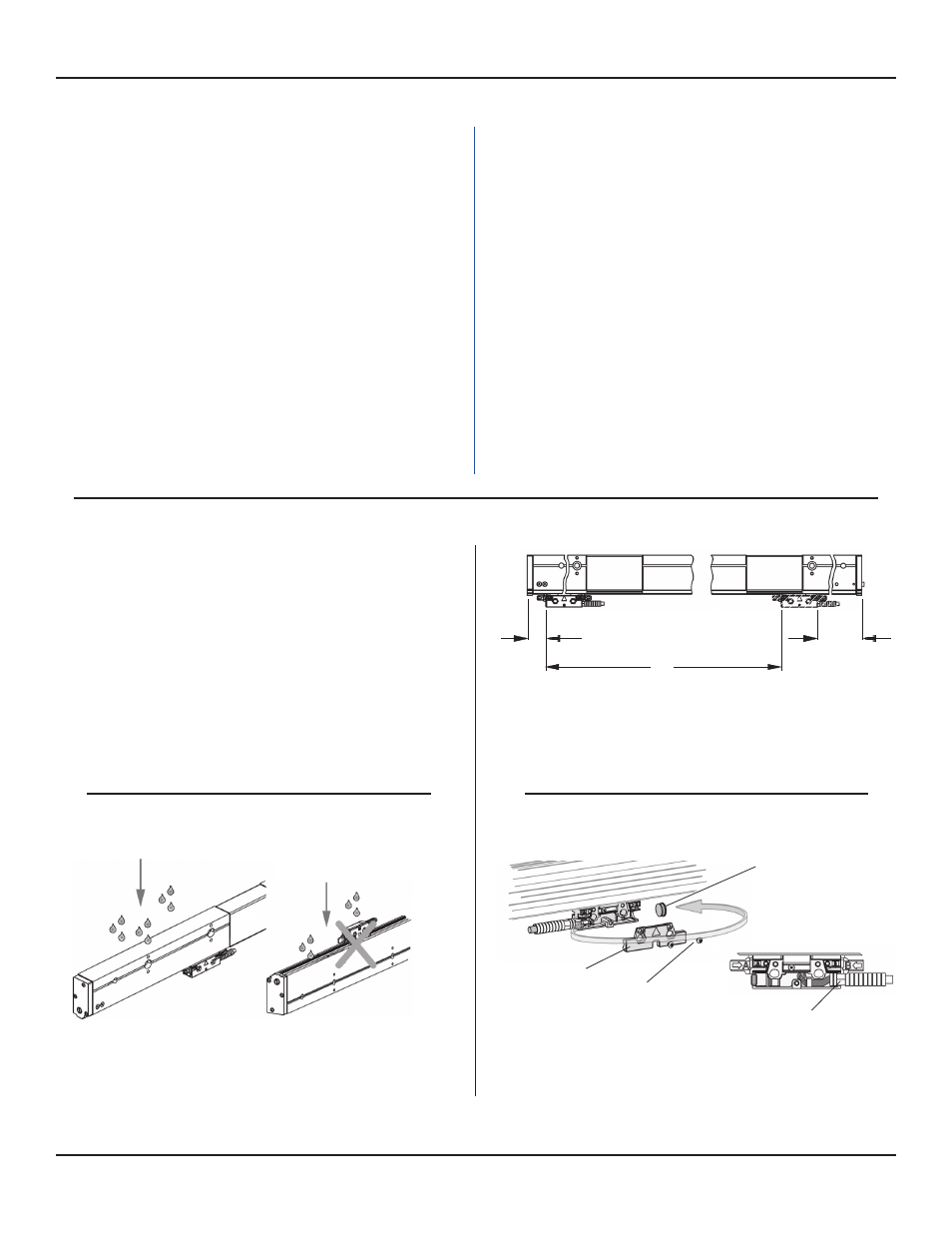

Please follow these preparation guide lines.

• Understand your mounting requirements.
• Mount with lip seals down and away from the work area.
• Brackets should be kept as short as possible and rigid.
• Surfaces must be in good condition, clean, and free of dirt.

Remove paint from machined mounting surfaces.

Locate the machine’s center of travel on the axis that

the encoder will be mounted to. Move the axis to the
center of travel prior to installing the encoder. Mark
a reference line on the axis so that it can easily be
returned to the center of travel.

Measuring length ...

• Machine travel can not exceed the encoder measuring

length.

• Either limit machine travel or obtain correct length scale.

L

• Determine the cable exit direction before installing the reading

head.

• To change the cable exit direction; remove the cover plate

and rotate the cable 180°.

Changing cable exit direction ...

Cover plate

T-10 Torx screw (2)

Plug

Armor cable hex crimp

• Encoder lip seals to face away from coolant spray.

Coolant spray ...

Mounting Preparation

L” = Measuring length + [2.0”] 50.8mm nominal over travel

Travel is limited by stops at each end of scale

[1.0”]

25mm

[2.8”]

71.1mm
