324
Han
d
lin
g the U
n
expected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

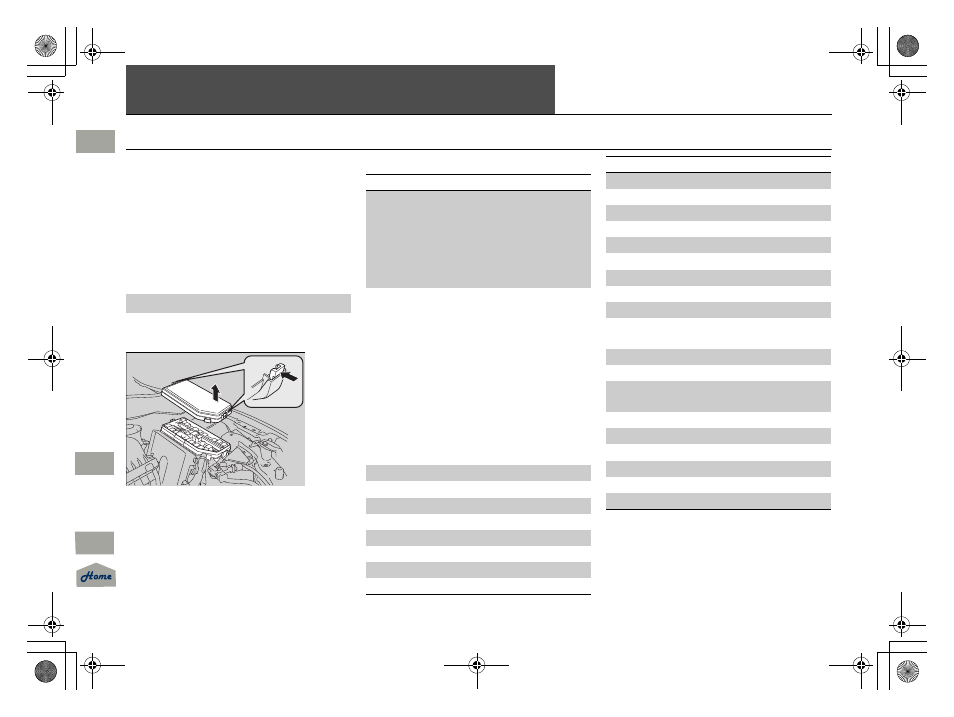

Located near the brake fluid reservoir. Push
the tabs to open the box.
■ Engine Compartment Fuse Box
■ Circuit protected and fuse rating
Circuit Protected Amps
1
EPS 70 A
− −
ABS/VSA Motor 30 A
ABS/VSA FSR 30 A
WIPER 30 A
Main Fuse 100 A
2
IG Main 50 A
Fuse Box Main 60 A
Fuse Box Main 2 60 A
Headlight Main 30 A
ST/MG SW 30 A
Rear Defogger 30 A
− −
Blower 40 A
− −
Sub Fan Motor 20 A
Main Fan Motor 20 A
3 − −
4 − −
5 Starter DIAG, ST MG 7.5 A
6 − −
7 − −
8 − −
9 − −
10 − −
*1:Models with halogen bulb low beam headlights
*2:Models with discharge headlights
11 Oil Level 7.5 A
12 Fog Lights * (20 A)
13 − −
14 Hazard 10 A
15 FI Sub 15 A
16 IG Coil 15 A
17 Stop 15 A
18 Horn 10 A
19 − −
20
Right Headlight Low Beam *1
Right Headlight Low Beam (HID) *2
10 A
15 A
21 IGP 15 A
22 DBW 15 A
23
Left Headlight Low Beam *1
Left Headlight Low Beam (HID) *2
10 A
15 A
24 − −
25 MG Clutch 7.5 A
26 WASHER 15 A
27 SMALL 20 A
28 Interior Lights 7.5 A
29 Backup 10 A
Circuit Protected Amps
* Not available on all models
