Chapter 3: System Setup
Installing the Full-Size Mini PCIe Module

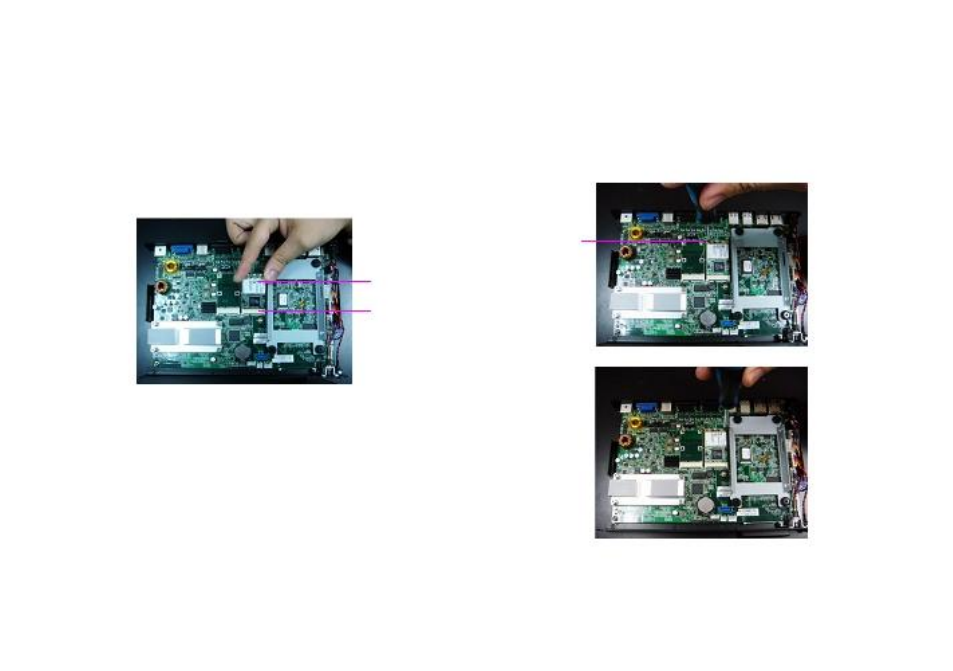

1. Insert the Mini PCIe module into the Mini PCIe slot at a 45 degrees
angle until the gold-plated connector on the edge of the module
completely disappears inside the slot.
2. Secure the module with mounting screws.
Mounting
screw
Mini PCIe
module
Mini PCIe slot
Mounting
screw
47
