Installing a cfast card – Acura Embedded AcuPanel 15 User Manual
Page 41
Chapter 3: System Setup

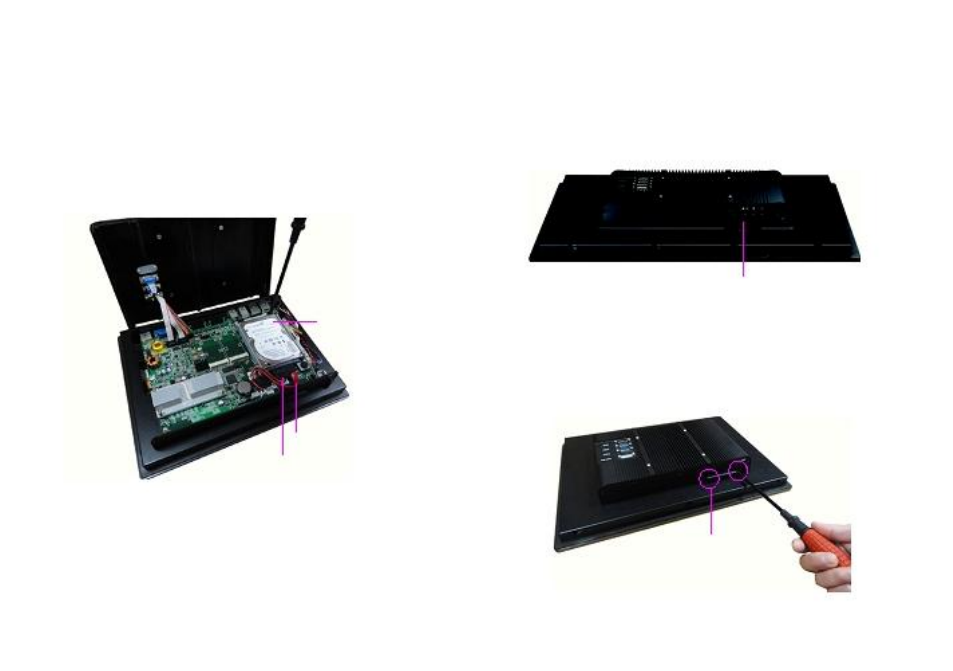

6. Place the SATA drive in the chassis and then use the provided mounting
screws to secure the drive in the chassis.
Connect the SATA data cable and SATA power cable to the
connectorson the SATA drive.
SATA drive
SATA data cable
SATA power cable
36
Installing a CFast Card
1. The CFast card socket is located on the rear top side of the chassis.
CFast card socket
2. Remove the mounting screws of the CFast socket's cover.
Mounting
screw
