19
Explorer, you can find cameras that are discovered by Windows via UPnP protocol.
Chapter 3-5 Video Settings
This section describes the details in setting the H.264 video’s attributes. The settings
of bit rate control, video input, and video resolution can be configured.

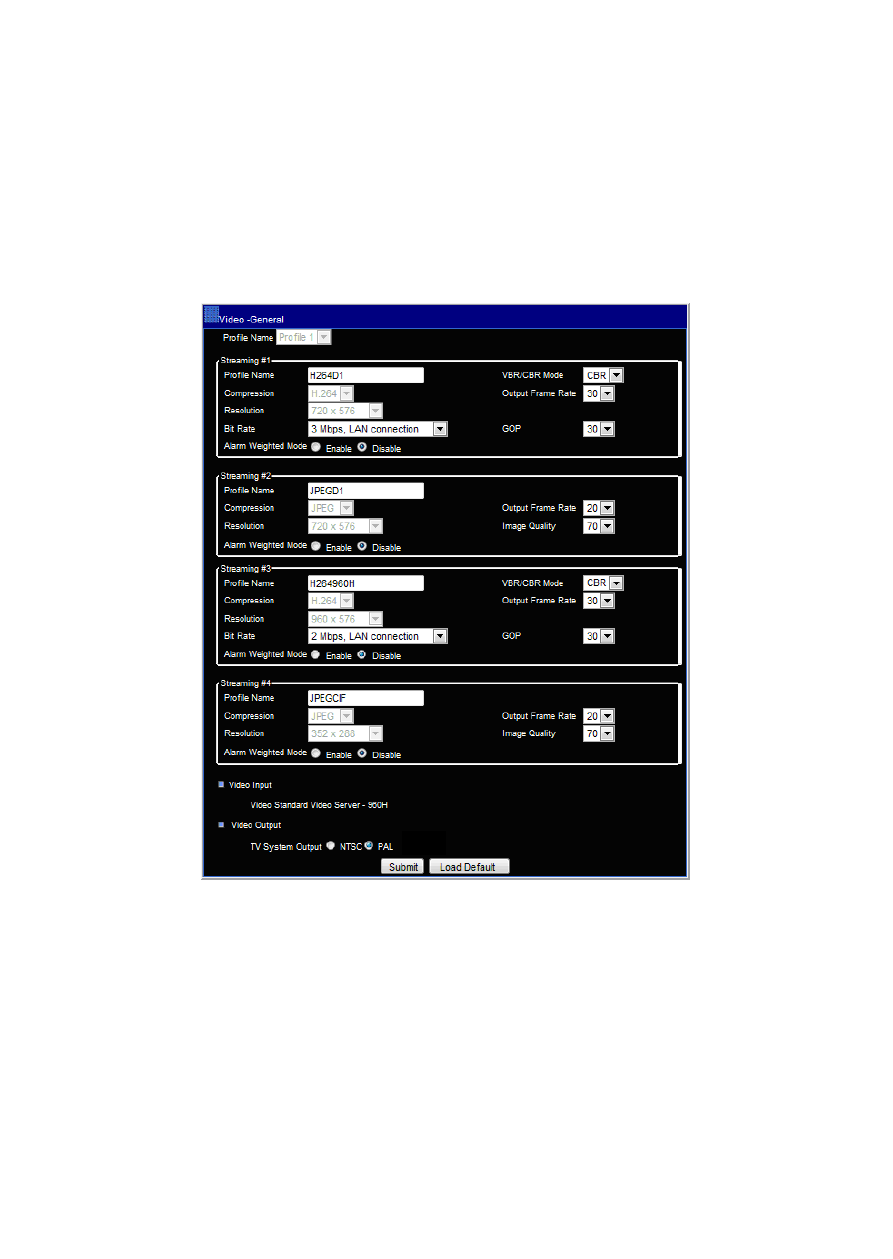

Chapter 3-5-1 Video General
For transmitting H.264 video over low bandwidth network such as Internet, please set
the bit rate close to network upload bandwidth. H.264 AiP camera can encode video
frames based on the bit rate setting.
 Profiles: Selections of streaming combination
 Profile Name: Description of the streaming profile
 Compression: compression type of the streaming profile
 Resolution: the resolution of the compression
 VBR/CBR: VBR: Video quality encoding mode/constant bit rate encoding mode.
 Bit Rate: Maximum bit rate available for a network connection
 Output Frame Rate: the frame rate of the profile
 GOP: I frame period per second
 Video Input: sensor input device
 TV System Output: NTSC/PAL video system
