Activeforever Standers Stable Bed Rail - Manual (Page 2)

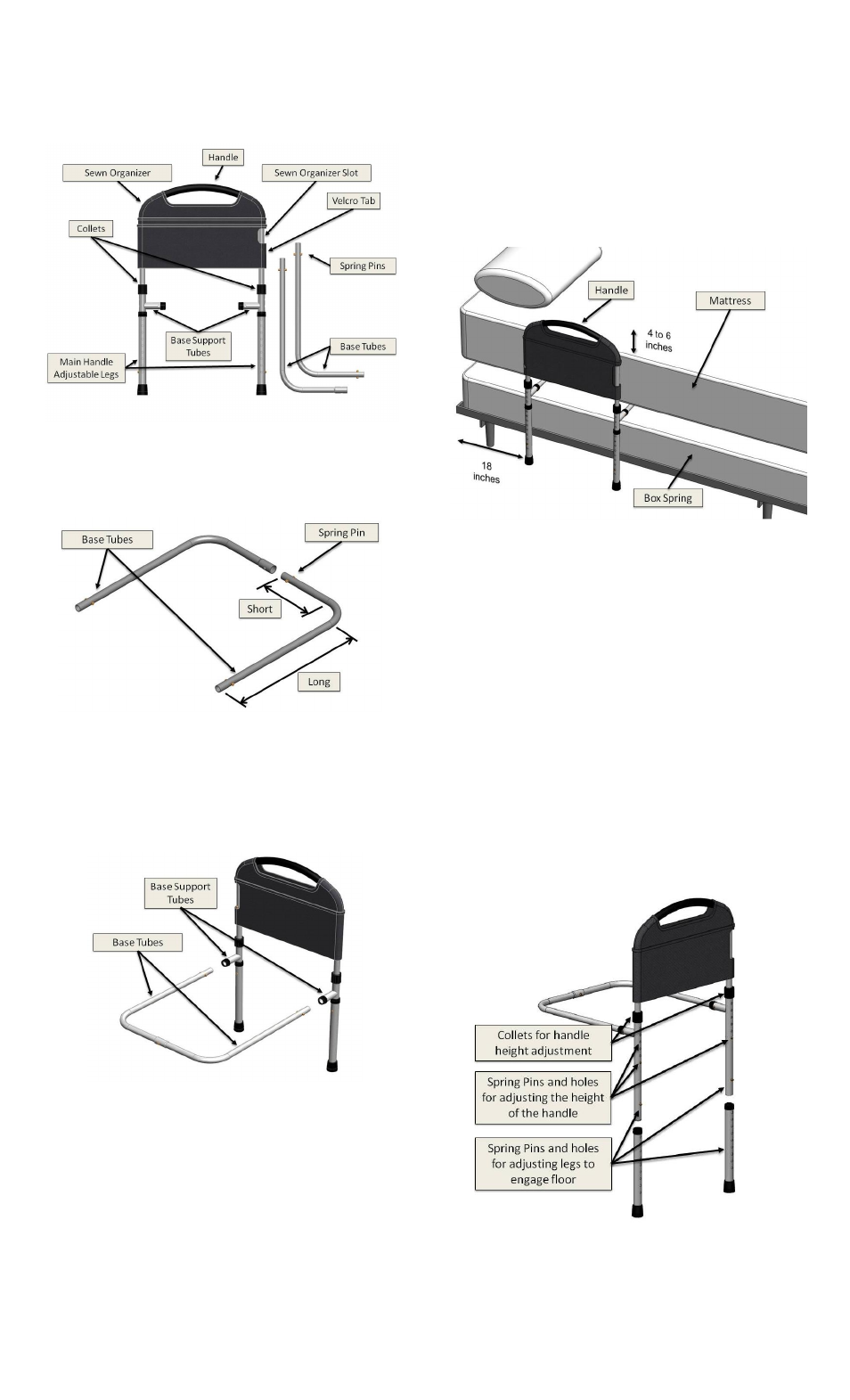

Assembly Instructions
1. Remove all parts from the box and become
familiar with the parts as shown in Figure 1.
FIGURE 1
2. Connect Base Tubes together as shown in
Figure 2.
FIGURE 2
3. Attach Base Tubes into the Base Support
Tubes as shown in Figure 3. Make sure the
Spring Pins engage the hole in the Base
Support Tubes.
FIGURE 3
4. As shown in Figure 4, fully insert the
assembled product between the mattress and
box spring of the bed. Note that product
should be at least 18" away from the head of
the bed and the Handle should be 4" to 6"
above the top of the mattress.
FIGURE 4
5. Adjusting height of Main Handle:
As shown in Figure 5, the height of the handle
can be adjusted up or down by loosening the
Collets by rotating counter clockwise. Depress
both spring pins so the handle can move up or
down to the desired height. After adjusting the
Main Handle to the desired height, tighten
Collets by rotating clockwise.
6. Adjusting height of Main Handle legs:
As shown in Figure 5, the Main Handle
Adjustment Legs can be adjusted up or down
to engage the floor by depressing the spring
pins so the legs can move up or down to the
desired height.
FIGURE 5
