Page 3

3
Time
Output
1, 3.2 or 3.3 MHz
Ultrasound
Pulse Width
2 ms
Pulse Space
10 ms

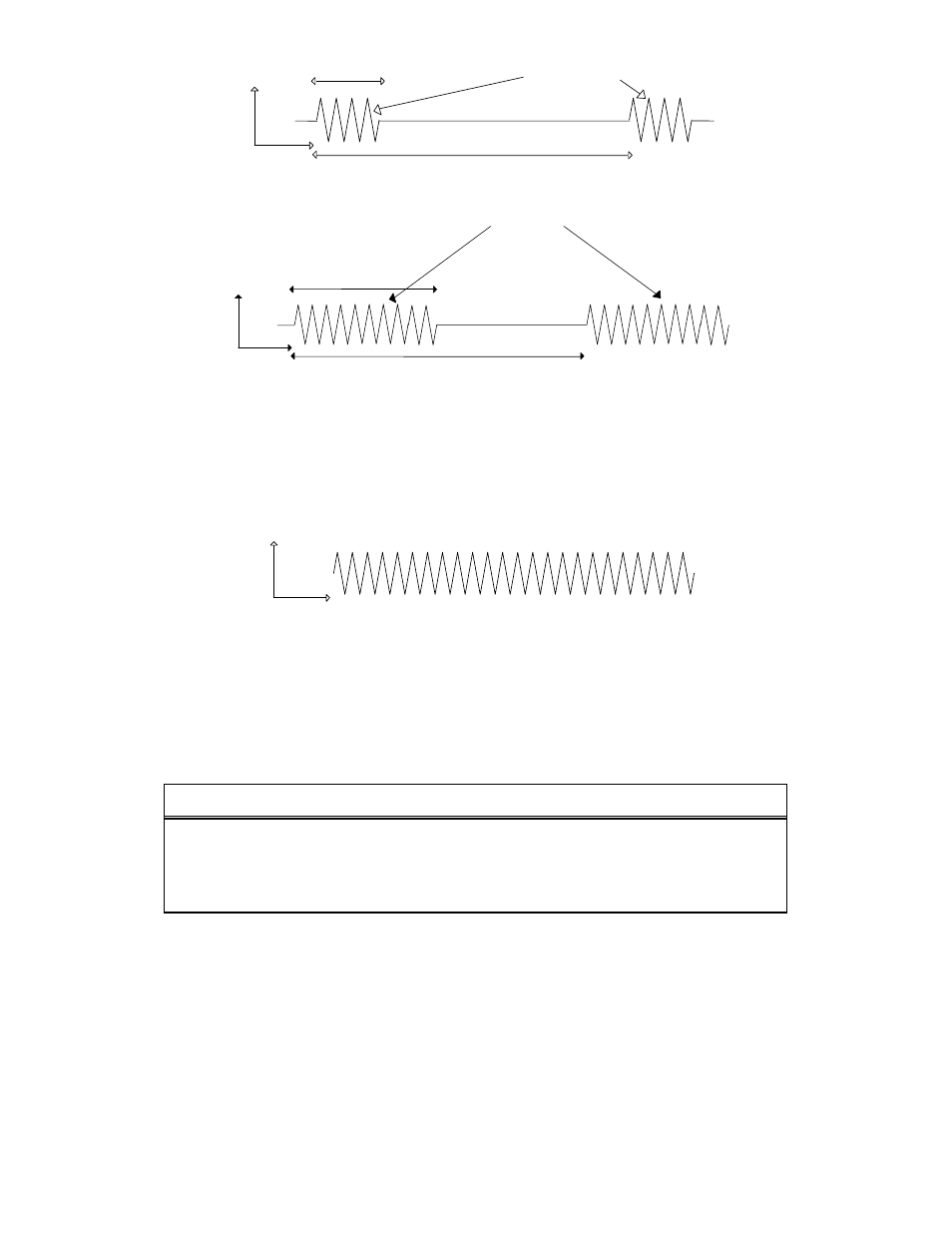

Figure 3.1—Pulse Waveform—20% Duty Cycle
Time
Output
1, 3.2 or 3.3 MHz Ultrasound
Pulse Width
5 ms
10 ms
Pulse Space
Figure 3.2—Pulse Waveform—50% Duty Cycle
In the continuous mode, the power is on at least 95% of the
time the timer is running. The continuous mode waveform is
shown below:
Time
Output
1, 3.2 or 3.3 MHz Ultrasound
Figure 3.3—Continuous Waveform
Ultrasonic Applicator Specifications:
Piezoelectric discs:
The output transducer utilizes a barium titanate disc with a
specially coated face.
Individual Applicator Specifications:
Applicator Part Number
Frequency
Effective Radiating Area
ME 7310
1 MHz ±5%
10 cm²±10%
ME 7331
3.3 MHz ±5%
1 cm² ±10%
ME 7513
1 or 3.2 MHz ±5%
5 cm² ±10%
Maximum Beam
Non–Uniformity Ratio:
6:1
Maximum Effective
Intensity Ratio:
2:1
Spatial Pattern:
The applicator produces a collimated (cylindrical) beam with
an area of 1, 5 or 10 cm², measured 5 mm from the ceramic
disc surface when the radiation is emitted into the equivalent
of an infinite medium of distilled water at 30° C.
The beam of the applicator is circular in all planes parallel to
