11
2. Loosen the middle 2 sets of nuts and bolts to change the
worn rubber plate, assemble and tighten it on reverse step
(Fig. 23).
3. Install the new rubber plate assembly by tightening 2 sets
of nuts and bolts on both sides (Fig. 21).
Replacing the Scraper Bar
1. The scraper bar is located at the base of the snow thrower
beneath the rotor housing (Fig. 24).
2. Detach the worn scraper bar from the snow thrower by
removing 2 screws that hold it in place (Fig. 25).
3. Install the new scraper bar and fasten it securely to the
snow thrower with 2 screws (Fig. 26).
Replace the Belt and Pulley
Note: Determine the left and right hand side of the snow
thrower by standing behind the unit in the normal operating
position.
1. Remove the screws from the left panel of the snow
thrower (Fig. 27).
2. Lift the belt tension and roll the worn belt off the big pulley
from upside (Fig. 28).

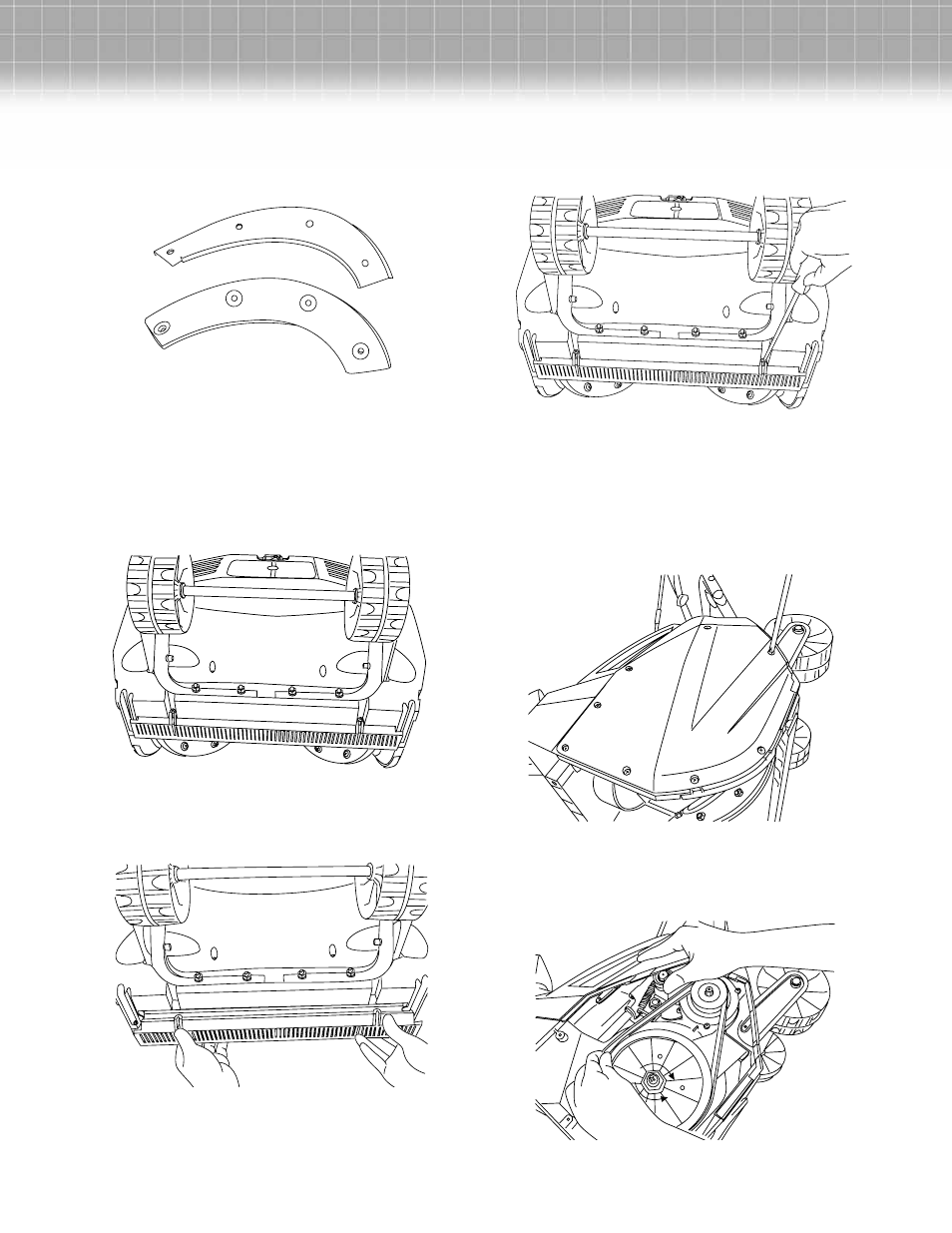

Figure 23
Figure 24
Figure 25
Figure 26
Figure 27
loosen
tighten
Figure 28
