Ypical, Nstallation – ACR&Artex ME406 ACE 455-0023 User Manual
Page 15
Artex Products / ACR Electronics, Inc.
570-0023 Rev. G
Page 15 of 33
6.2 Typical Installation
6.2.1 Due to the large array of configurations possible, ACR Electronics, Inc. does not provide
a harness or RJ11 plugs (telephone connector) as part of the installation of the ELT.

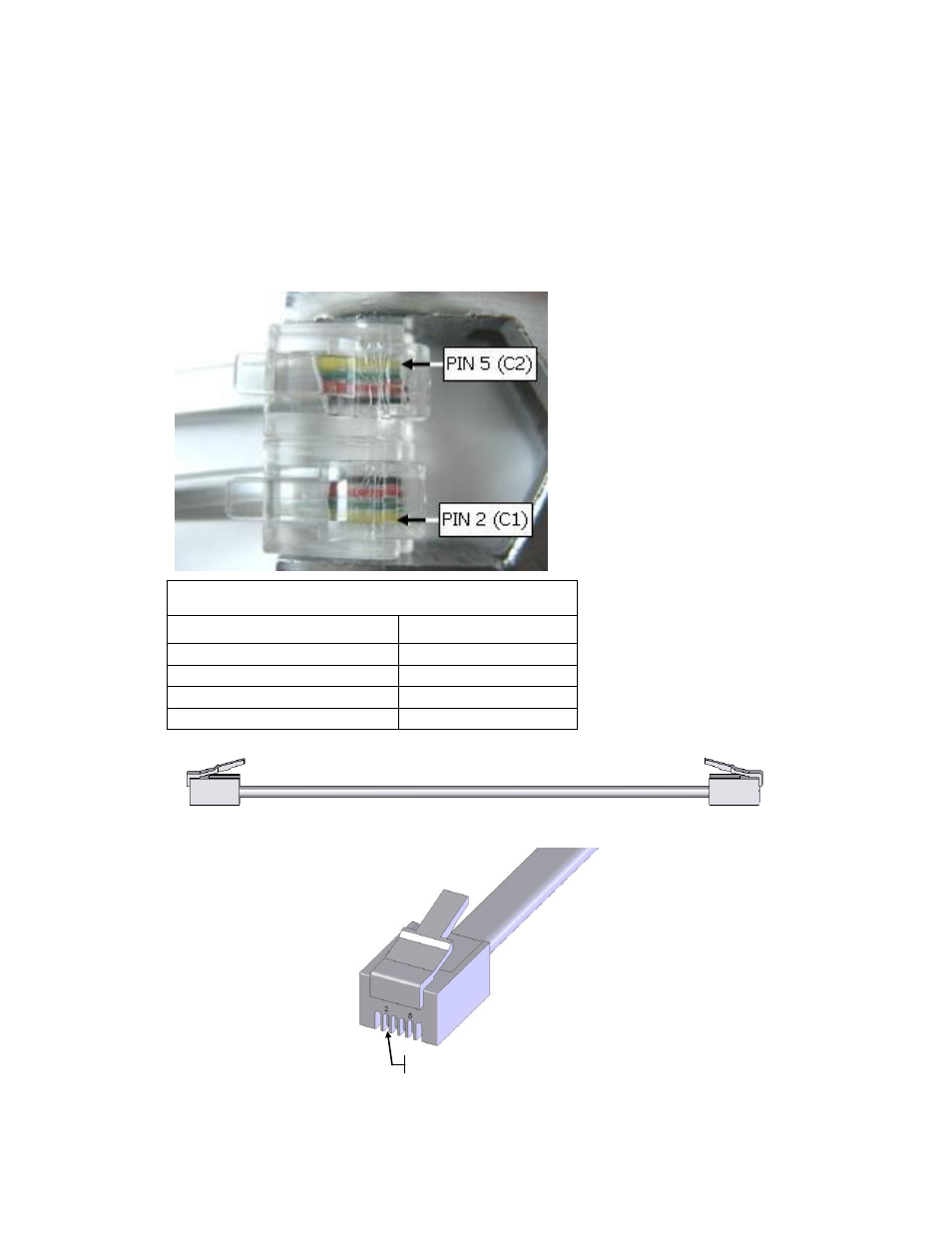

6.2.2 The harness must be manufactured following the cross-wired configuration shown
below.
NOTE: Refer to Subsection 6.1 for ACK and Ameri-King retrofits.
Wiring
C1
C2
2
5
3
4
4
3
5
2
C1
C2
PIN 2
