Mechanical, A. dongle location, B. dongle installation – ACR&Artex DGL-1 User Manual
Page 31: Figure 4. dongle outline and dimensions

25-69-01
Page 31 of 44
JUN 27/12
ARTEX PRODUCTS / ACR ELECTRONICS, INC
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
DGL-1, DONGLE (453-4010)
TASK 25-69-01-410-802
2. Mechanical
SUBTASK 25-69-01-450-001
A. Dongle Location
CAUTION:
AVOID LOCATION THE DONGLE WHERE IT MAY BE SUBJECTED TO UNPROTECTED
EXPOSURE TO HARSH CHEMICAL FLUIDS, SUCH AS DEICING COMPONDS. THESE
TYPES OF CHECMICALS MAY CAUSE DAMAGE TO FASTENERS AND ELECTRICAL
COMPONENTS, AS WELL AS ELECTRICAL CONNECTOR CORROSION.
(1)
Mount the Dongle withing 2 feet (610 mm) of the ELT, such that the interface harness does
not exceed 3 feet (914 mm) including strain relief.
(2)
The Dongle chassis and ELT are mounted to the same support structure in most installations.
SUBTASK 25-69-01-410-001
B. Dongle Installation
(1)
Coordinate the Dongle installation with the ELT installation whenever possible. If the Dongle is
an add-on to an existing ELT installation, extend/modify the existing ELT support structure to
accommodate the Donge.
(2)
See "Figure 4. Dongle Outline and Dimensions".

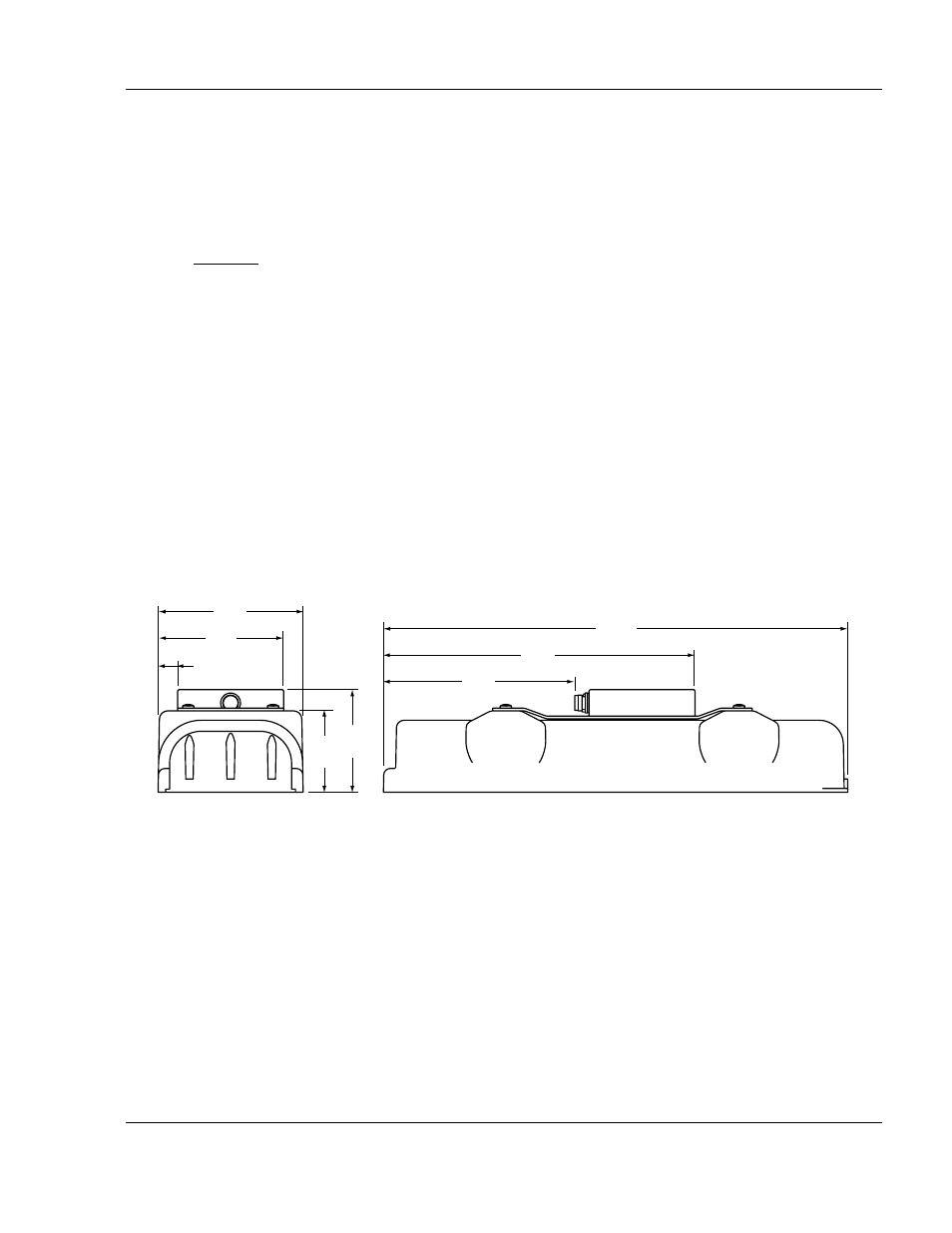

Figure 4. Dongle Outline and Dimensions
(3)
Mount the Dongle on the protective top cover on the ELT with four screws (P/N 201-6324-01)
(4)
Test the ELT installation in accordance with“Test and Fault Isolation” on page 23.
10.95
(278)
7.34
(186)
4.51
(115)
3.36
(85)
2.93
(74)
0.46
(12)
2.42
(61)
1.92
(49)
453-4010
Dimensions in inches (mm)
DGL-1
MOUNTING FRAME
PROTECTIVE COVER
