Chapter 2: Setting Up the A/V Pass-Through Jacks
17
TV + A/V Receiver
IMPORTANT: Remember that the more jacks you connect on the PW1000, the more jacks you’ll have available
on the front of the PW1000 for connecting portable devices.
Blu-ray Satellite or cable
A/V Receiver
TV
BEFORE YOU START: Decide which inputs to use and write them down.
vacation video from your camcorder on the TV.
or
Chapter 2: Setting Up the A/V Pass-Through Jacks
18

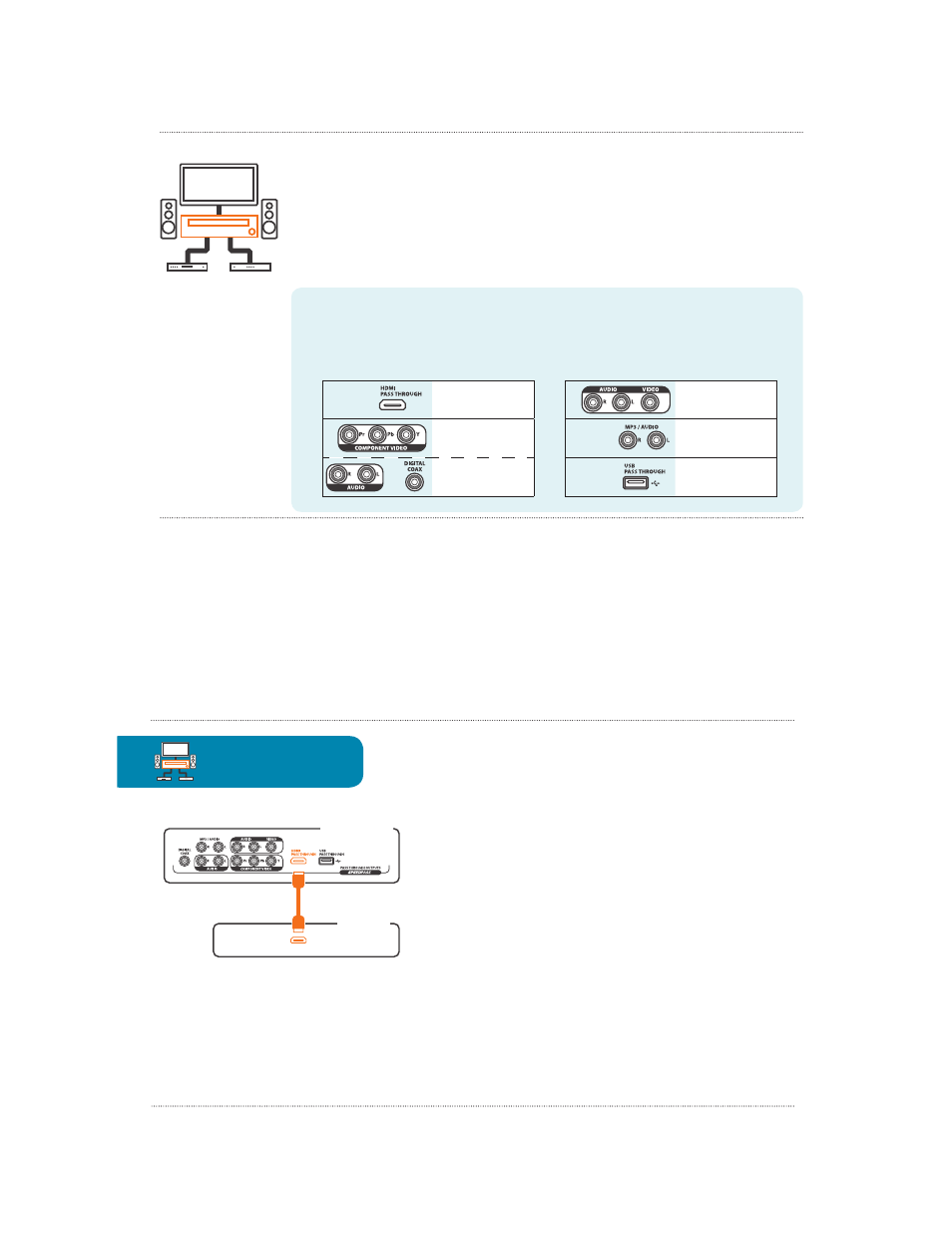

PW1000 Back Panel
A/V Receiver
Back Panel
HDMI INPUT
HDMI (TV + A/V Receiver)
The PW1000 offers one pass-through HDMI SpeedPass connection from the front to
the back HDMI jacks.
To use the HDMI SpeedPass: Connect an available HDMI input on your A/V
here.
IMPORTANT: Make sure you make a note of the inputs you’re using for each
connection.
Blu-ray Satellite or cable
A/V Receiver
TV TV+A/V Receiver
Component Video and Stereo Audio/Digital Coax Audio
(TV + A/V Receiver)
The PW1000 offers one set of pass-through Component Video jacks on the front and
connect a set of audio jacks in addition to the Component Video jacks on the back
of the PW1000 to hear the audio from this source on your A/V receiver.
