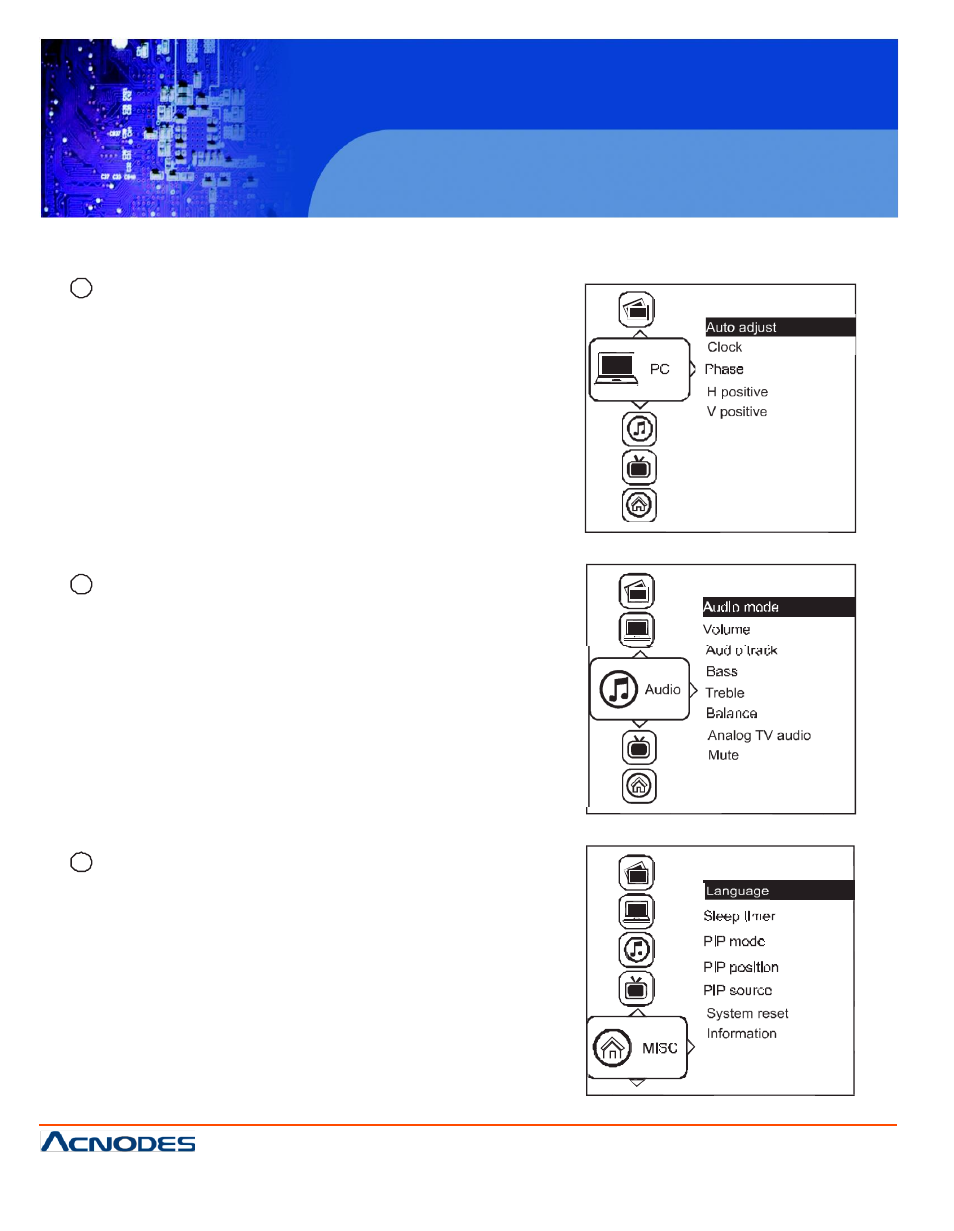

< 2.2 > On-screen Display Operation ( OSD )

Auto adjust :

Automatically adjust sizes, centers and fine tunes the

video signal to eliminate waviness and distortion.

Clock :

Adjust the clock value

Phase :

Adjust the phase value

H. Position :

Align the screen image left or right

V. Position :

Align the screen image up or down

Audio

Audio mode :

Mo vie / Voice / Normal / Music mode to choose

Volume :

Adjust the volume of sound

Bass :

Set the value of bass sound

Treble :

Set the value of treble sound

Balance :

Set the balance value of treble and bass sound

Analog TV audio : Set the value of analog TV audio sound

Mute :

Turn off the surrounding sound

MISC

Language :

Select the language in which the OSD menu is

displayed - English

Sleep timer :

Set the off time

PIP m ode :

Adjust picture in picture setting

PIP p osition :

Enter into PIP position

PIP source :

Enter into the Sub source and sound source

System reset :

Return the adjustment back to factory setting

Information :

Select for Help
