PCH 6519
17” industrial Panel PC
IP65 rated fully enclosure
Stainless steel front bezel
Full IP65 MONITOR provides two IO in back side. One is power (3 pin) in the right side, anthers are
VGA and optional touch interface (USB or RS232) in the left side. All connectors are IP65 level and
fool-proofing design; it helps the end user to install correctly.
Cable List
VGA and power cable is standard, and USB/RS232 cable depends on the touch interface. All
cables are 1.8 M with IP65- level connector in LCD side and standard IO in PC side.

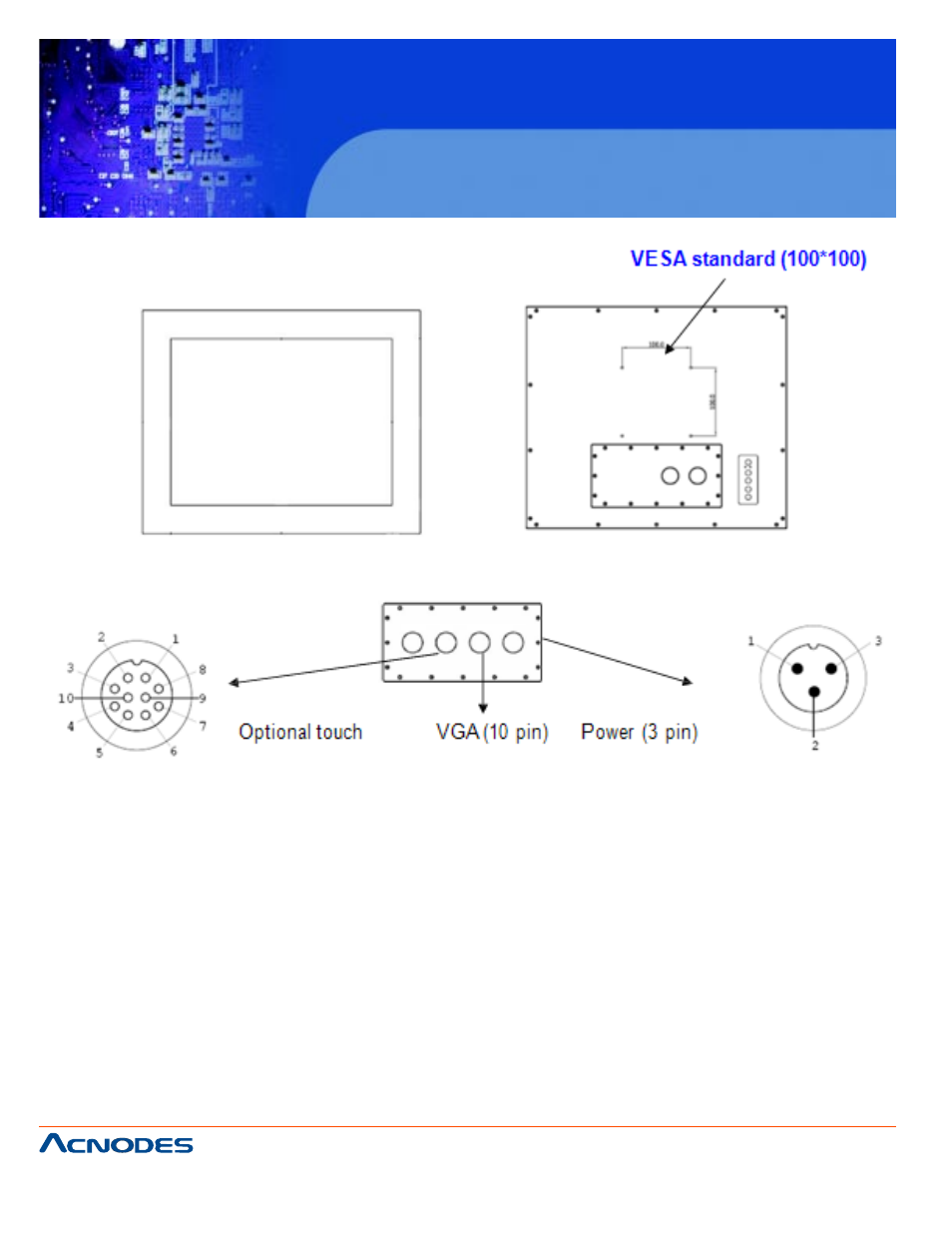

Front Side
Back Side
Quick Installation Guide of Full IP65/ NEMA 4 x LCD
