PCH 6519

17” industrial Panel PC

IP65 rated fully enclosure

Stainless steel front bezel

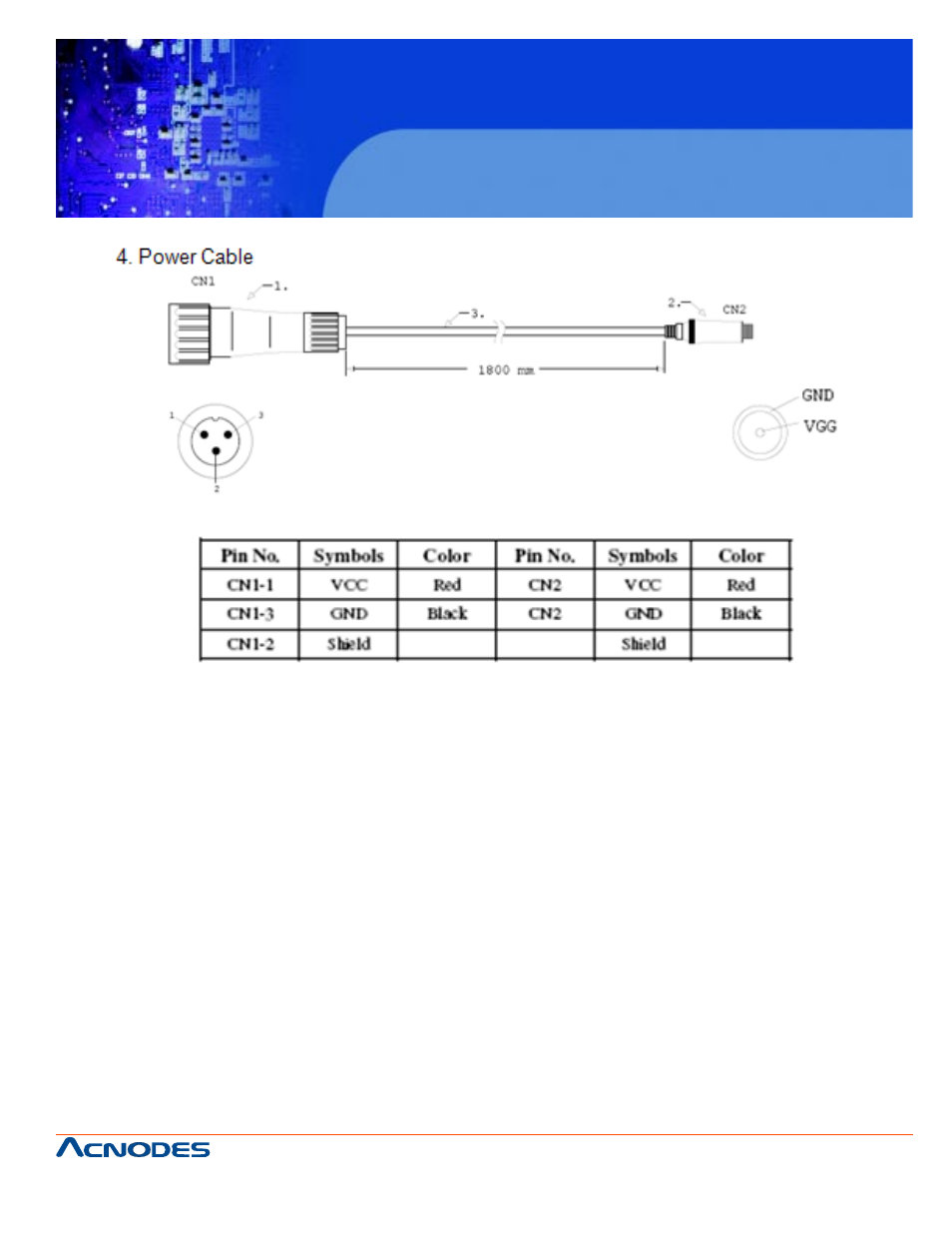

The Full-IP65 solution provides water proof and anti-dust cables: RS-232 cable, USB Cable,
LAN cable and power cable. The water proof part of power cable is 1.8 meter long with IP-65
connector; the other side is normal cable with standard IO such as: RS232/USB/LAN and DC
power jack. If you lost any one please contact with your supplier.

Installations

Step1. Open the covers on the connectors

All IO on the rear side of PPC is well protected with a plastic cover. Before installing the PPC,
user needs to open it.

Step2. Power Cable Connection (3 pin)

The power cable is 3 pin IP65 connecter design in PPC side. User need to plug in and make
the cable fit the connector, then the O-ring on the cable will be squeezed as the protection
ring is screwing clockwise.
