Acnodes FPC 8759 - Manual (Page 38)

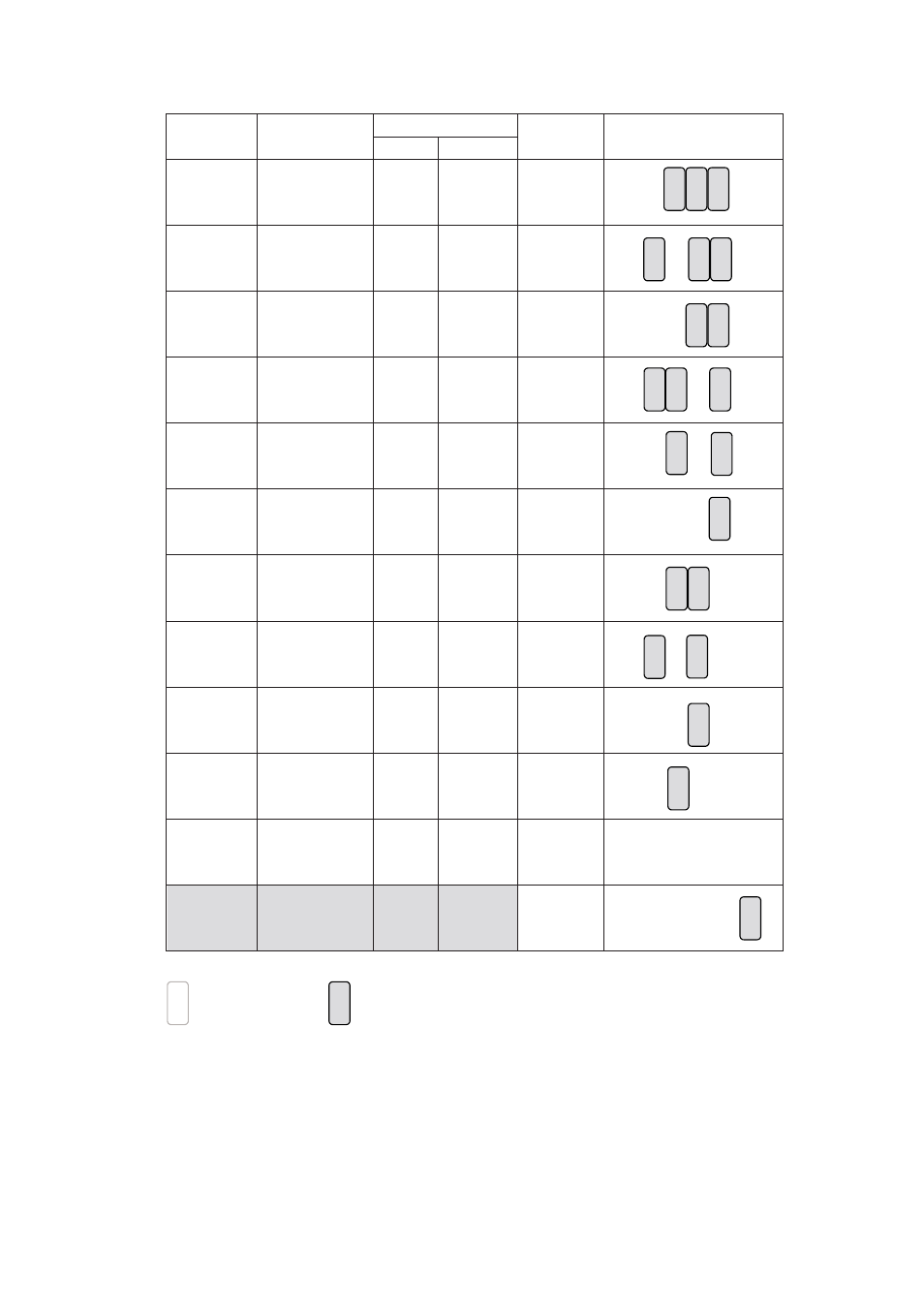

LCD ID Setting
Panel# Resolution
LVDS Output
Interface
JP3
Bits Channel
1 800 x 600 18 Single
LVDS
Panel 1 3 5 7 9
2 4 6 8 10
2 800 x 600 18 Single
LVDS
Panel 1 3 5 7 9
2 4 6 8 10
3 800 x 600 24 Single
LVDS
Panel 1 3 5 7 9
2 4 6 8 10
4 1024 x 600 18 Single
LVDS
Panel 1 3 5 7 9
2 4 6 8 10
5 1024 x 768 18 Single
LVDS
Panel 1 3 5 7 9
2 4 6 8 10
7 1024 x 768 24 Single
LVDS
Panel 1 3 5 7 9
2 4 6 8 10
9 1280 x 1024 24 Dual
LVDS
Panel 1 3 5 7 9
2 4 6 8 10
10 1366 x 768 18 Single
LVDS
Panel
1 3 5 7 9
2 4 6 8 10
11 1366 x 768 24 Single
LVDS
Panel
1 3 5 7 9
2 4 6 8 10
13 1440 x 900 24 Dual
LVDS
Panel
1 3 5 7 9
2 4 6 8 10
15 1920 x 1080 24 Dual
LVDS
Panel 1 3 5 7 9
2 4 6 8 10
CRT
1 3 5 7 9
2 4 6 8 10
1 1
2 Jumper open 2 Jumper short
